Around Instrument Panel

Around Instrument Panel

Dash Panel

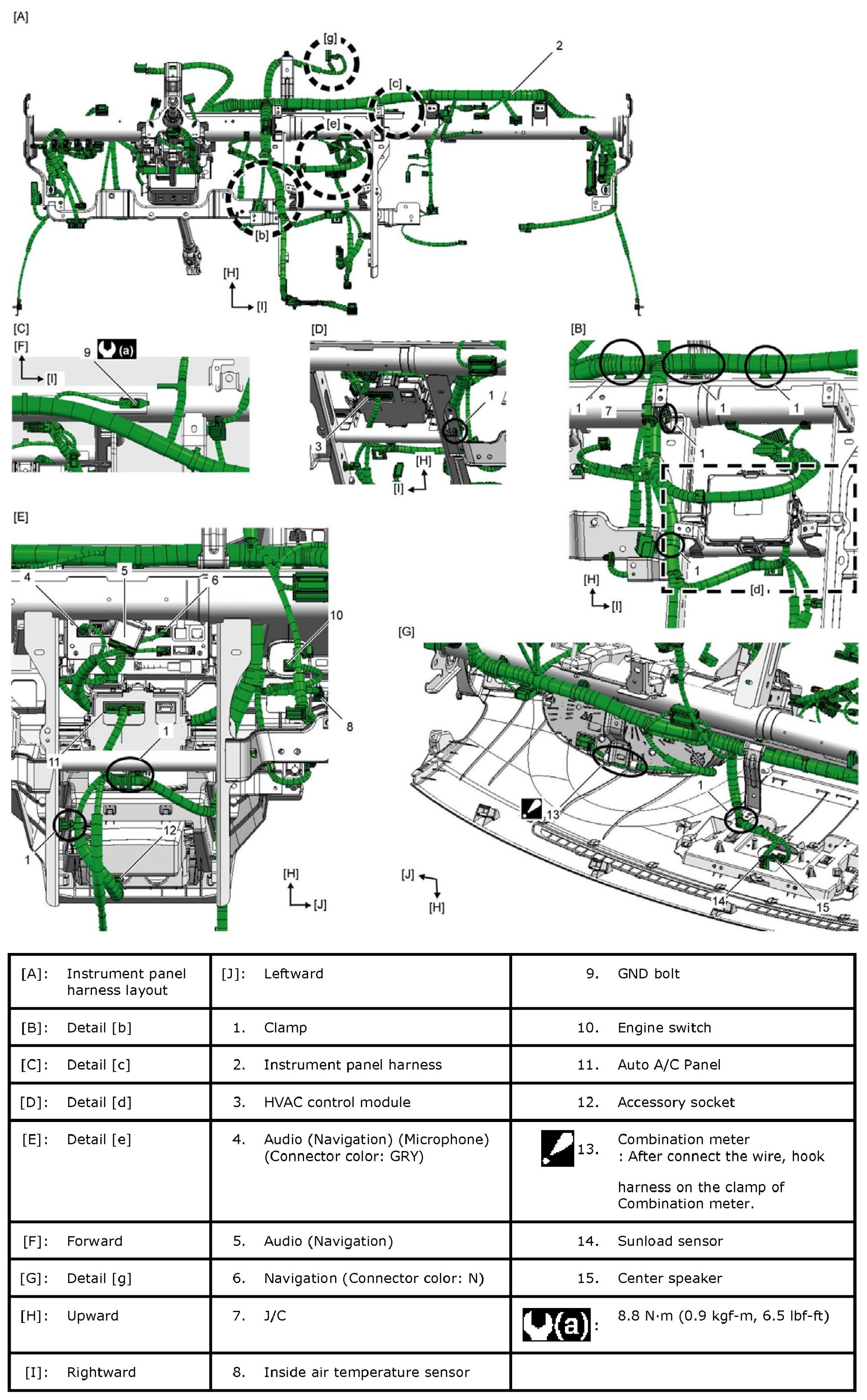

Around Instrument Panel - Dash Panel:






Inside the Instrument Panel

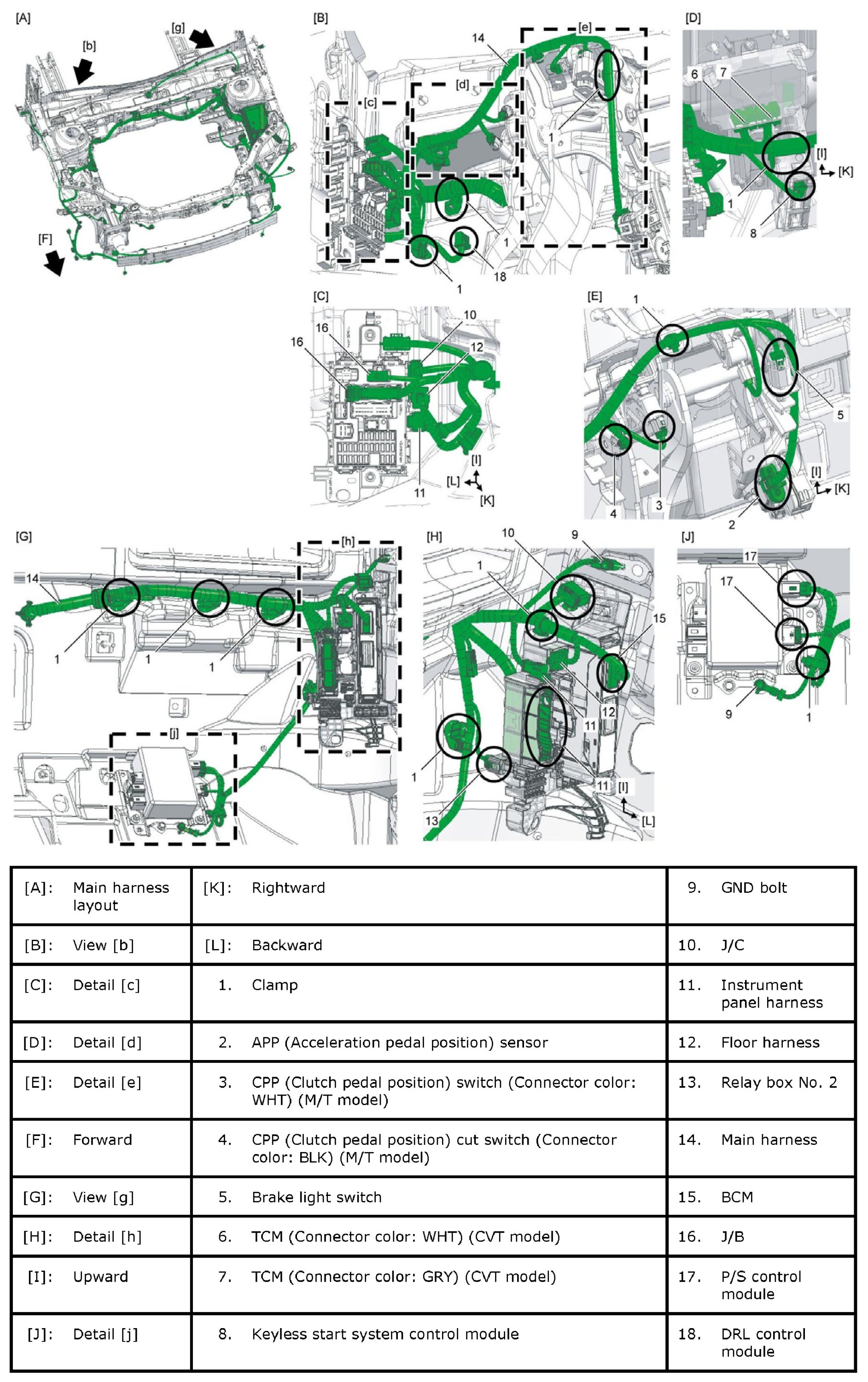

Around Instrument Panel - Inside The Instrument Panel:
