Ground Locations

Ground (Earth) Point

Reference: How to Read System Circuit Diagram
Refer to Connector Layout Diagram.

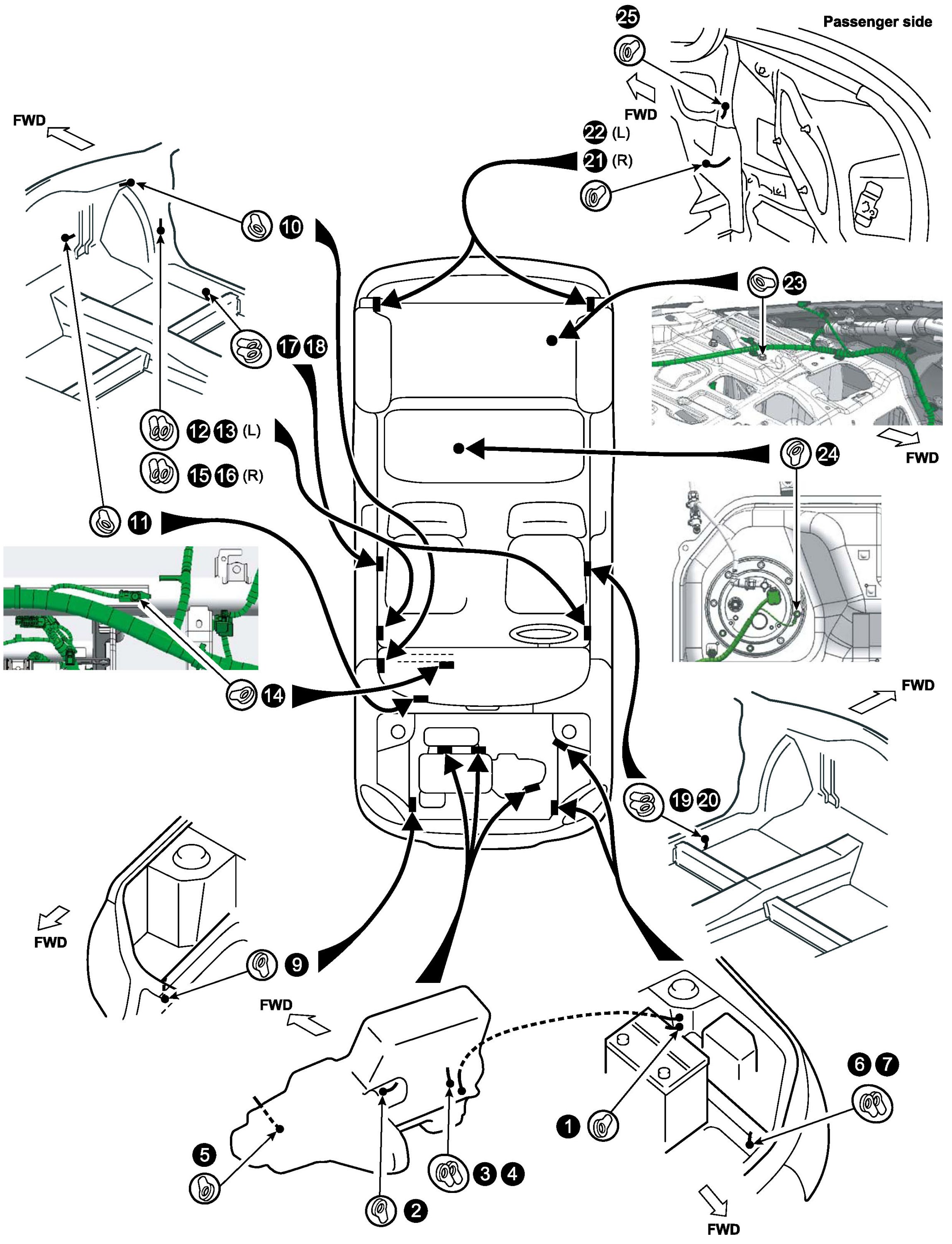

Ground (Earth) Point:
