L Connectors
FloorL: Floor Harness, Rear Sub Frame Harness / Q: Side-Air Bag Harness / R: Fuel Pump Wire

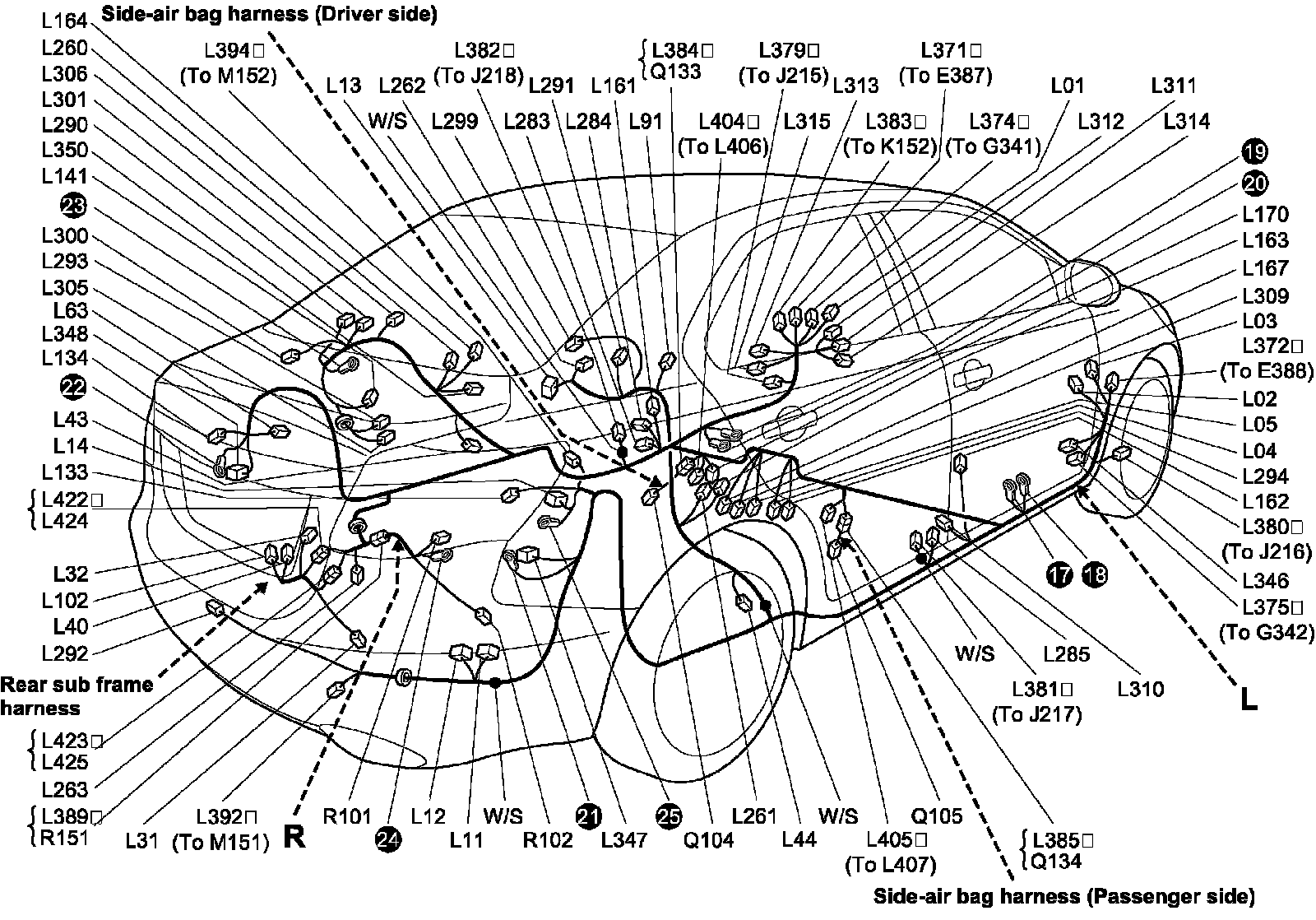

L: Floor Harness, Rear Sub Frame Harness / Q: Side-Air Bag Harness / R: Fuel Pump Wire View:
L: Floor Harness

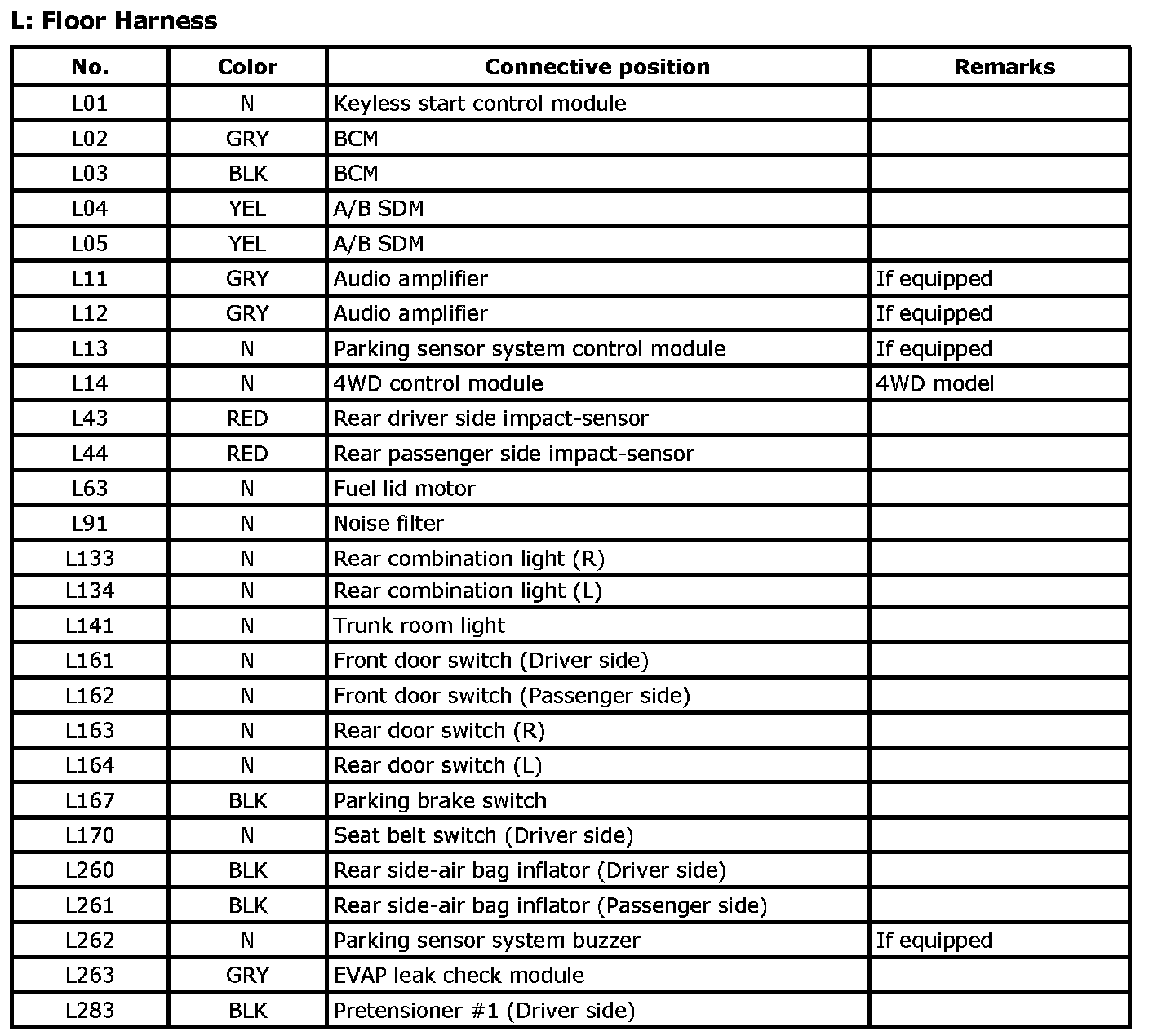

L: Floor Harness Index (Part 1):

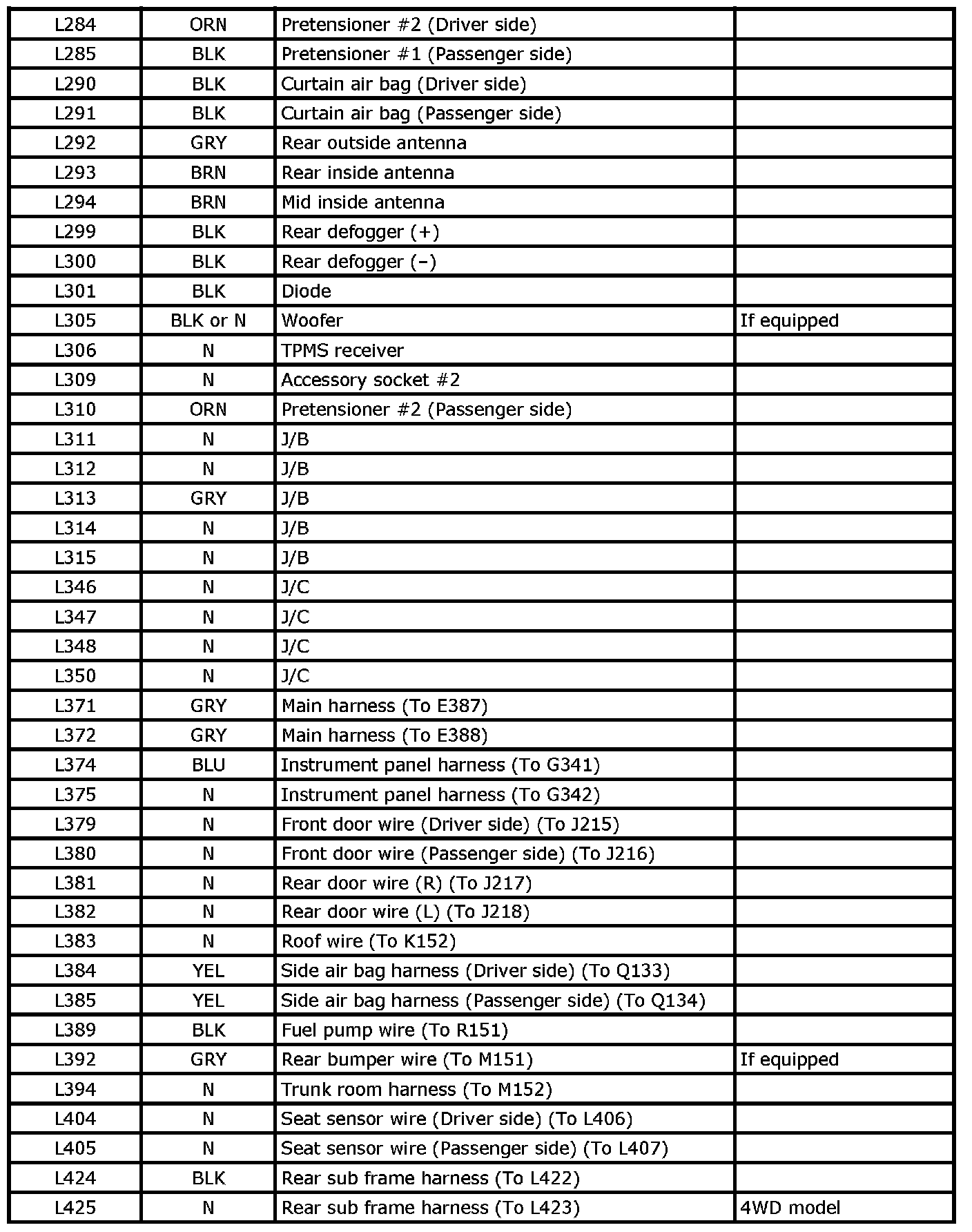

L: Floor Harness Index (Part 2):
L: Rear Sub Frame Harness
L: Rear Sub Frame Harness Index:
Rear
L: Seat Sensor Wire / M: Trunk Room Harness, Rear Bumper Wire

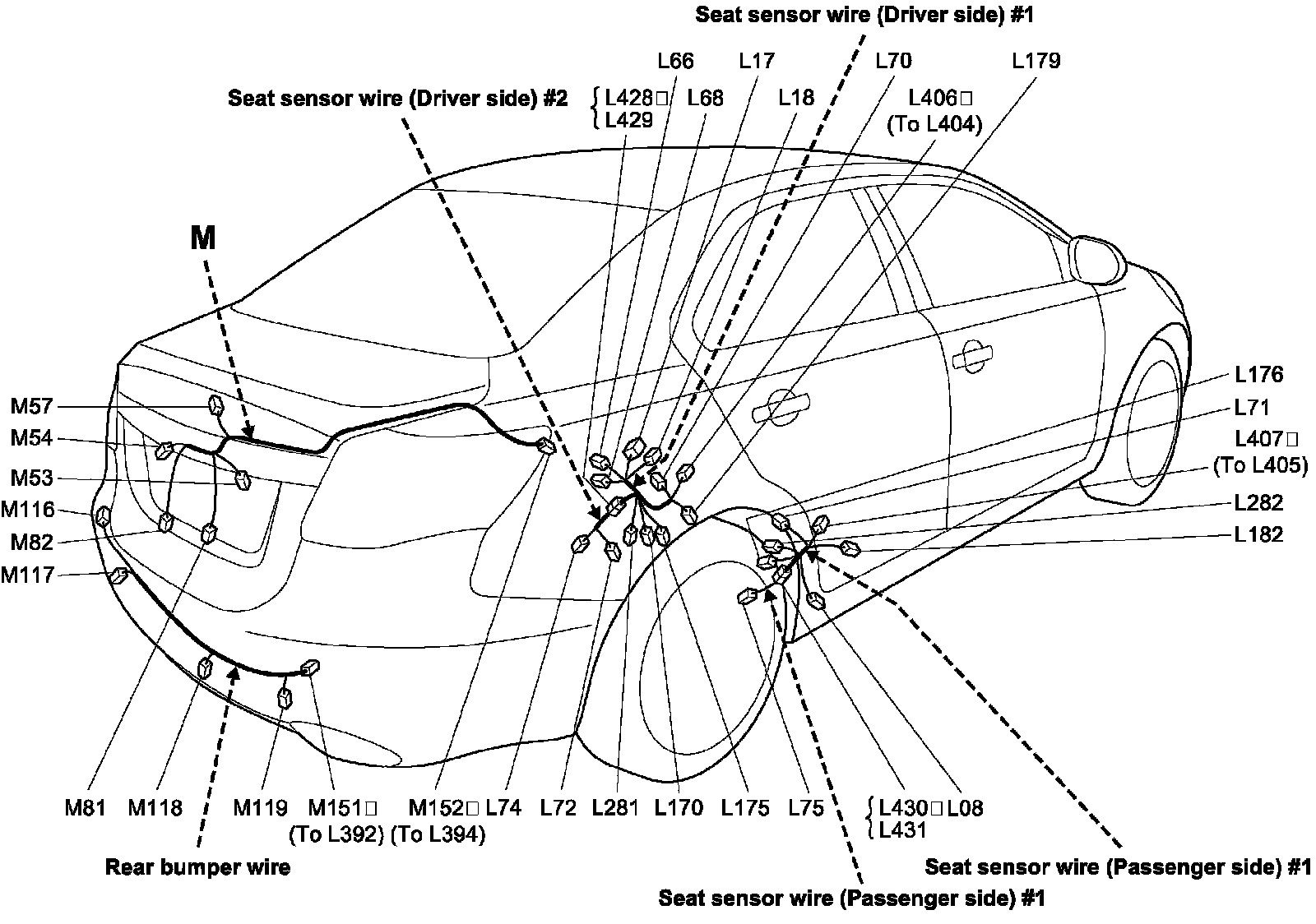

L: Seat Sensor Wire / M: Trunk Room Harness, Rear Bumper Wire View:
L: Seat Sensor Wire (Driver Side) #1
L: Seat Sensor Wire (Driver Side) #1 Index:
L: Seat Sensor Wire (Passenger Side) #1
L: Seat Sensor Wire (Passenger Side) #1 Index:
L: Seat Sensor Wire (Driver Side) #2
L: Seat Sensor Wire (Driver Side) #2 Index:
L: Seat Sensor Wire (Passenger Side) #2
L: Seat Sensor Wire (Passenger Side) #2 Index:
