G Connectors

Instrument Panel

G: Instrument Panel Harness, Instrument Panel Audio Antenna Wire, USB Cable / Q: Passenger Air Bag Harness / S: Contact Coil

G: Instrument Panel Harness, Instrument Panel Audio Antenna Wire, USB Cable / Q: Passenger Air Bag Harness / S: Contact Coil View:

G: Instrument Panel Harness

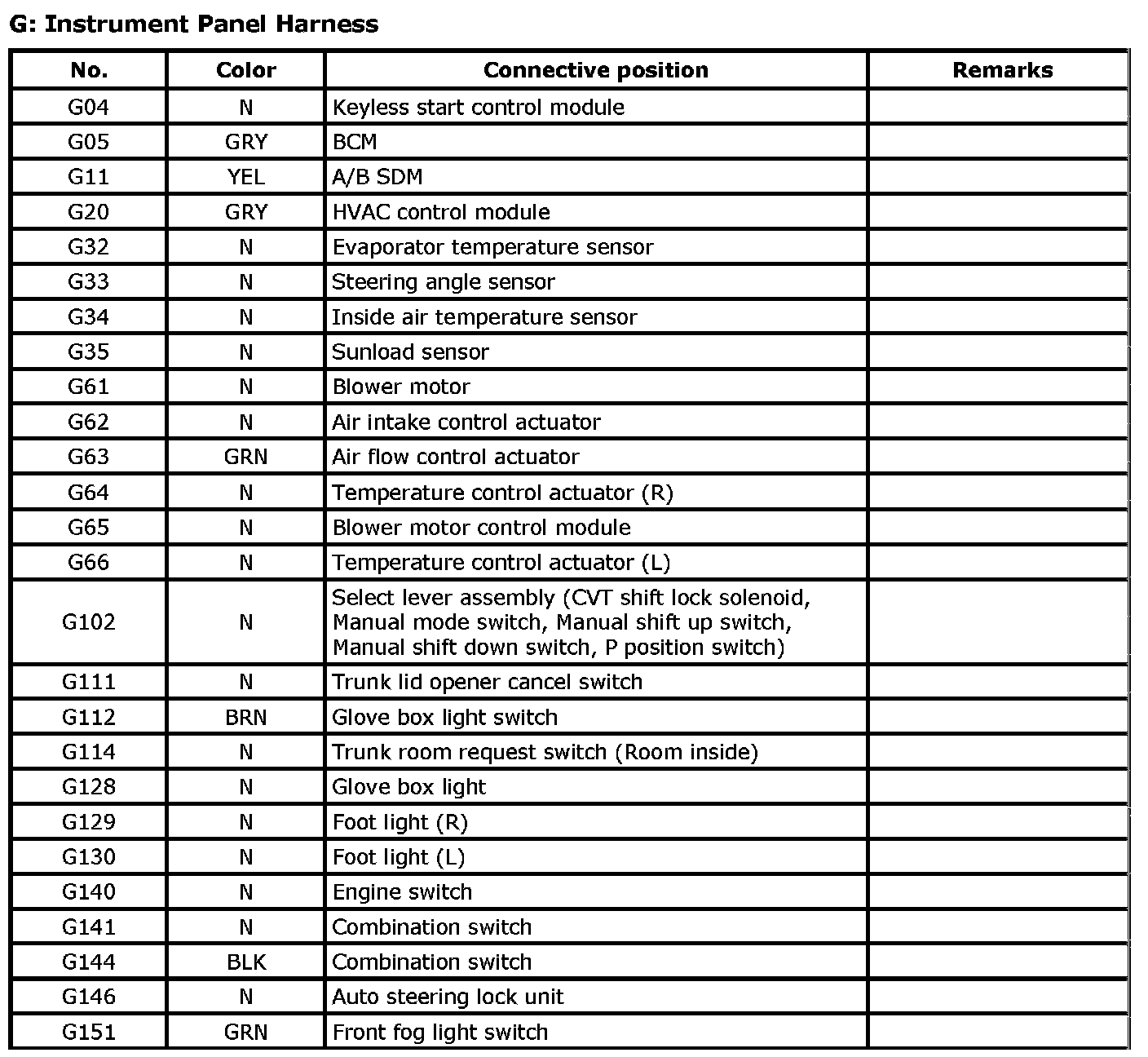

G: Instrumental Panel Harness Index (Part 1):

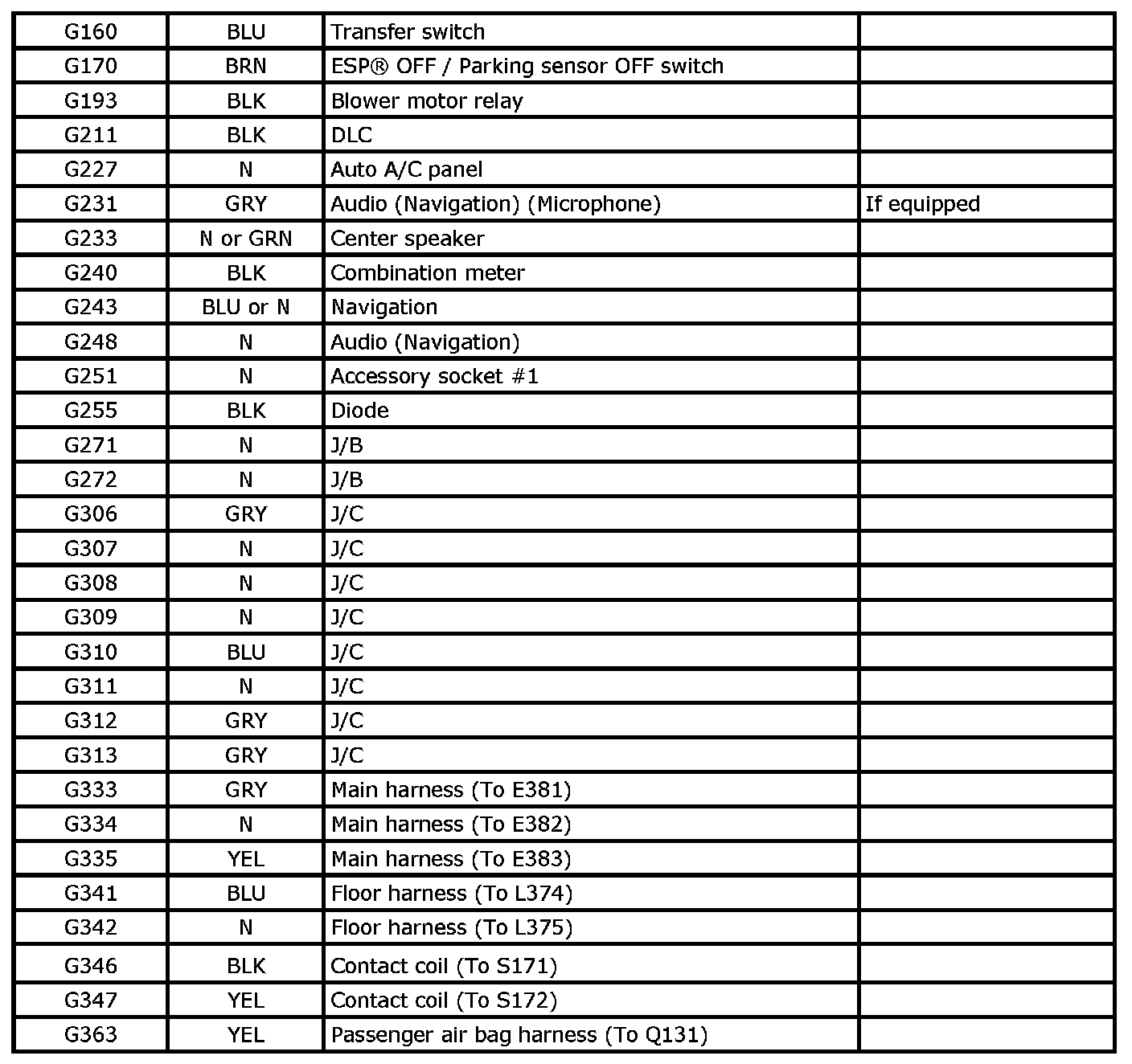

G: Instrumental Panel Harness Index (Part 2):

G: Instrument Panel Audio Antenna Wire

G: Instrument Panel Audio Antenna Wire Index:

G: USB Cable

G: USB Cable Index:
