E Connectors

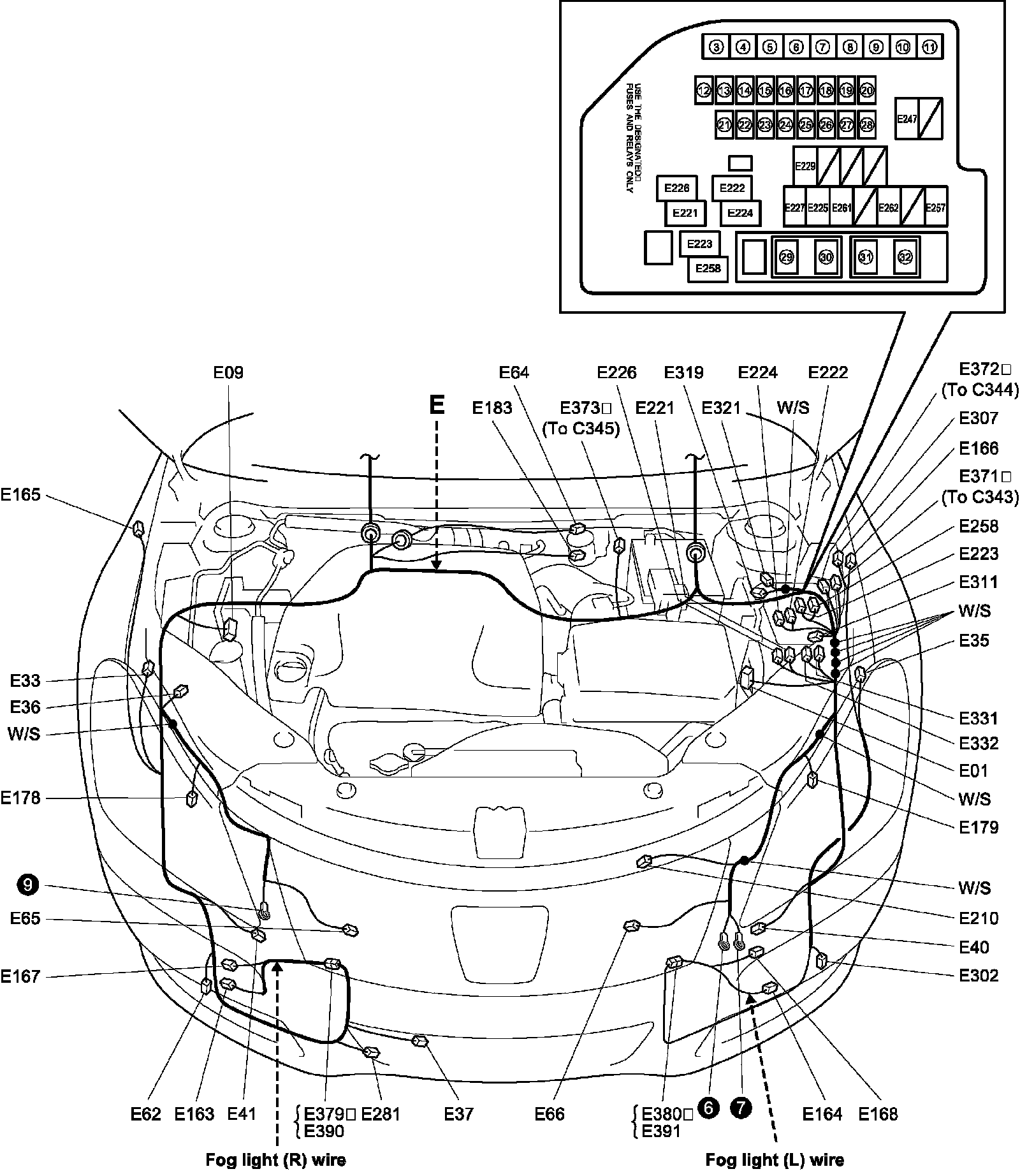

Engine Compartment

E: Main Harness, Fog Light Wire

E: Engine Harness, Fog Light Wire View:

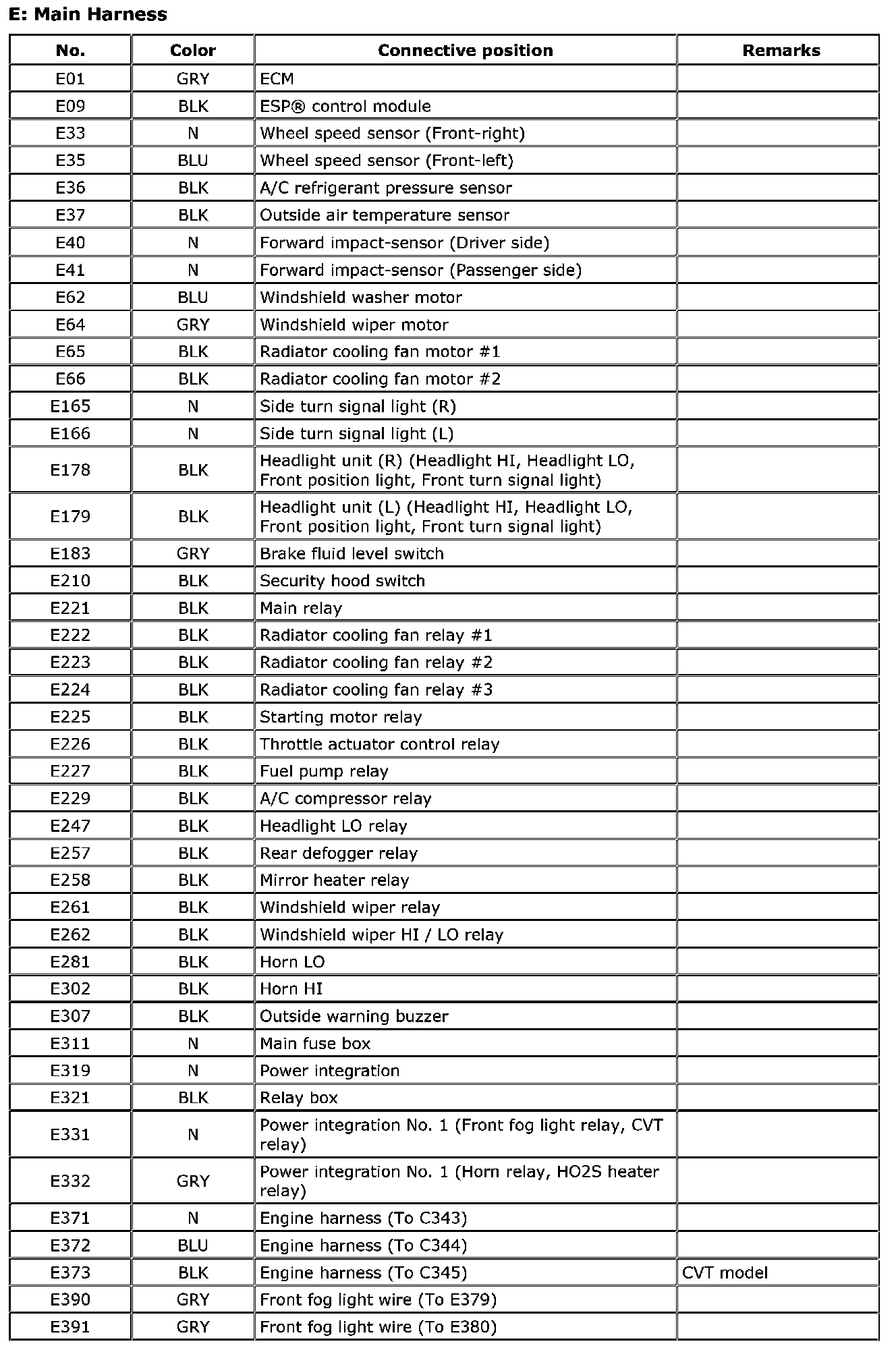

E: Main Harness

E: Main Harness Index:






E: Fog Light (R) Wire

E: Fog Light (R) Wire Index:






E: Fog Light (L) Wire

E: Fog Light (L) Wire Index:

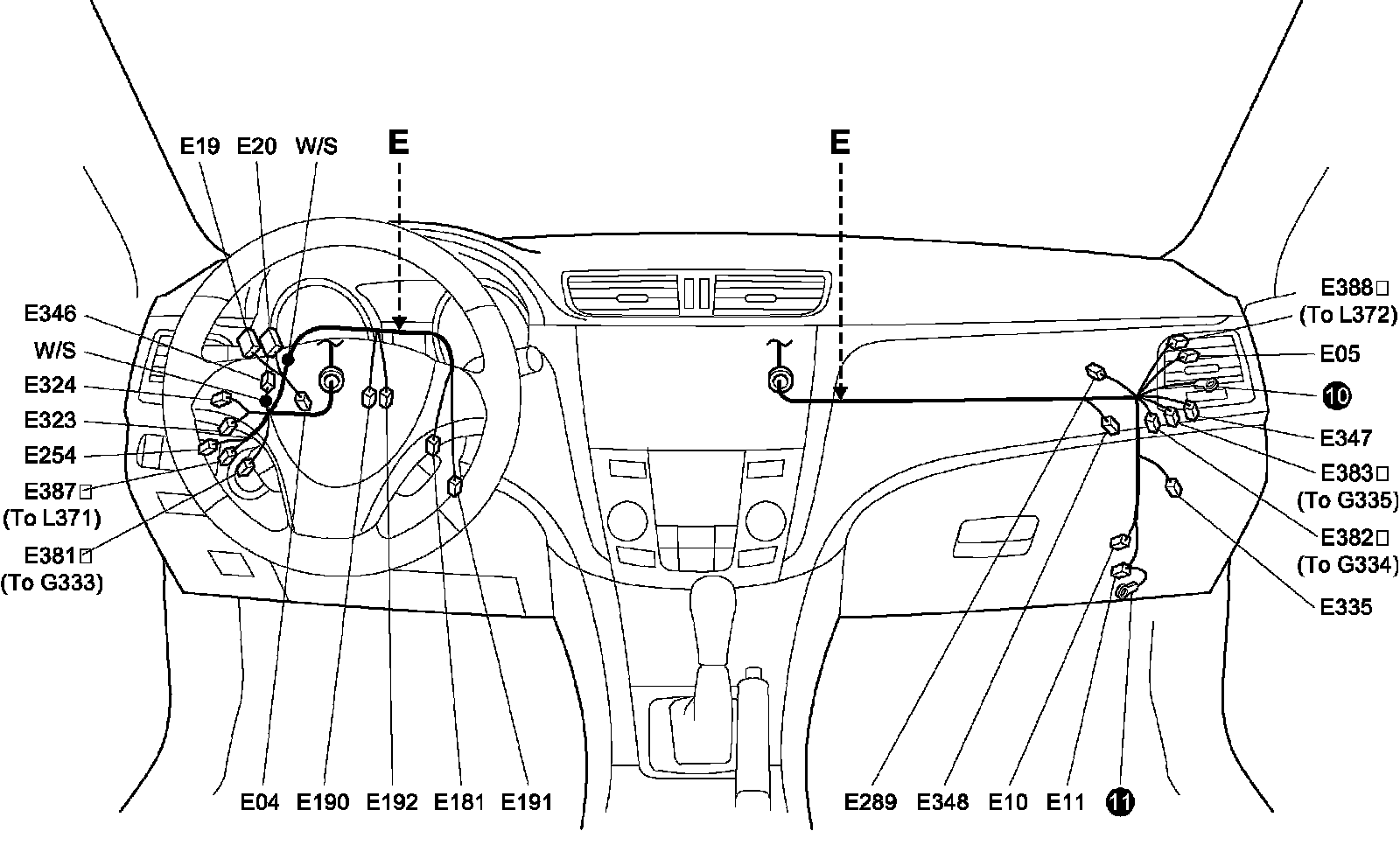

Instrument Panel

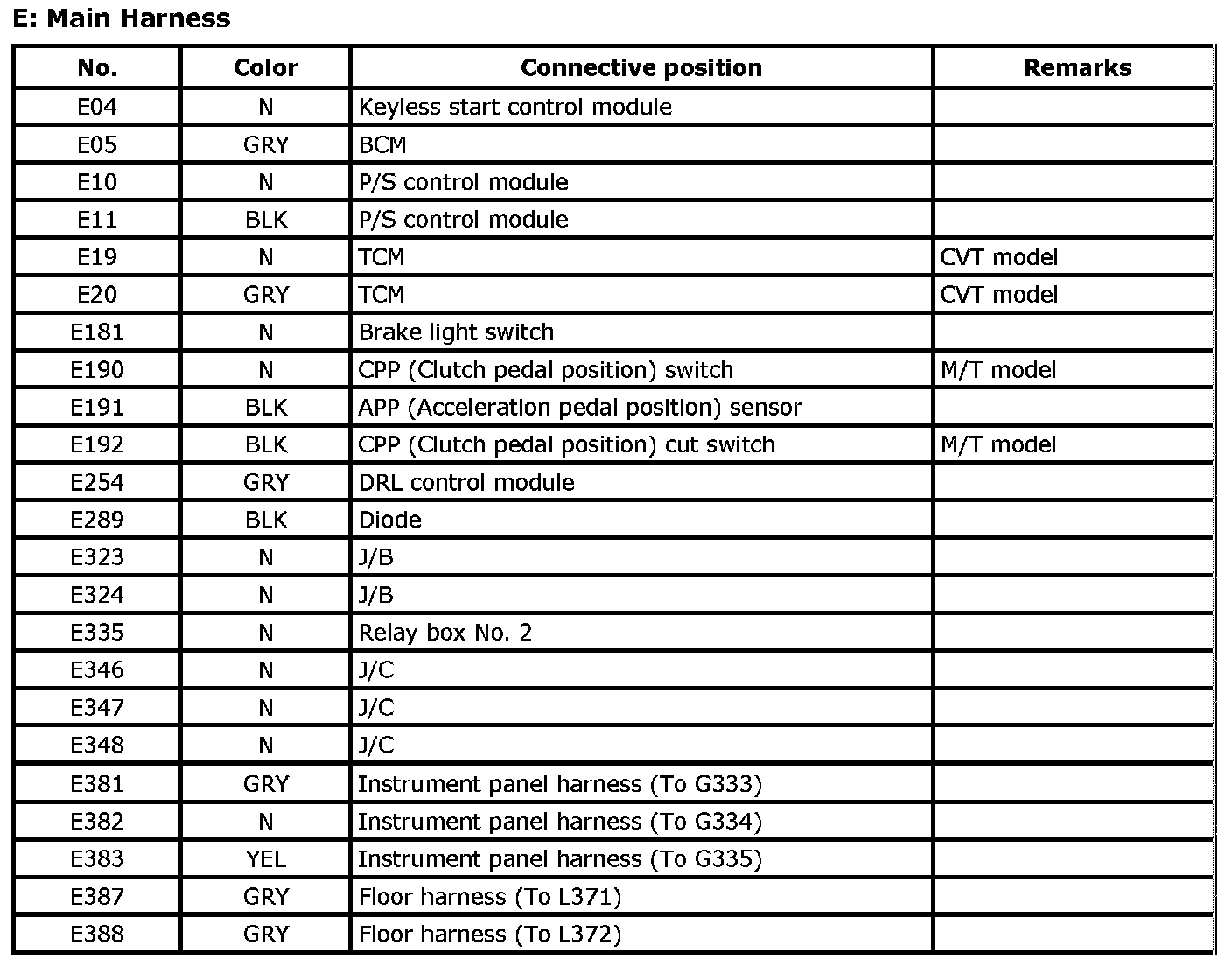

E: Main Harness

E: Main Harness View:




E: Main Harness Index:
