C Connectors

Engine Compartment

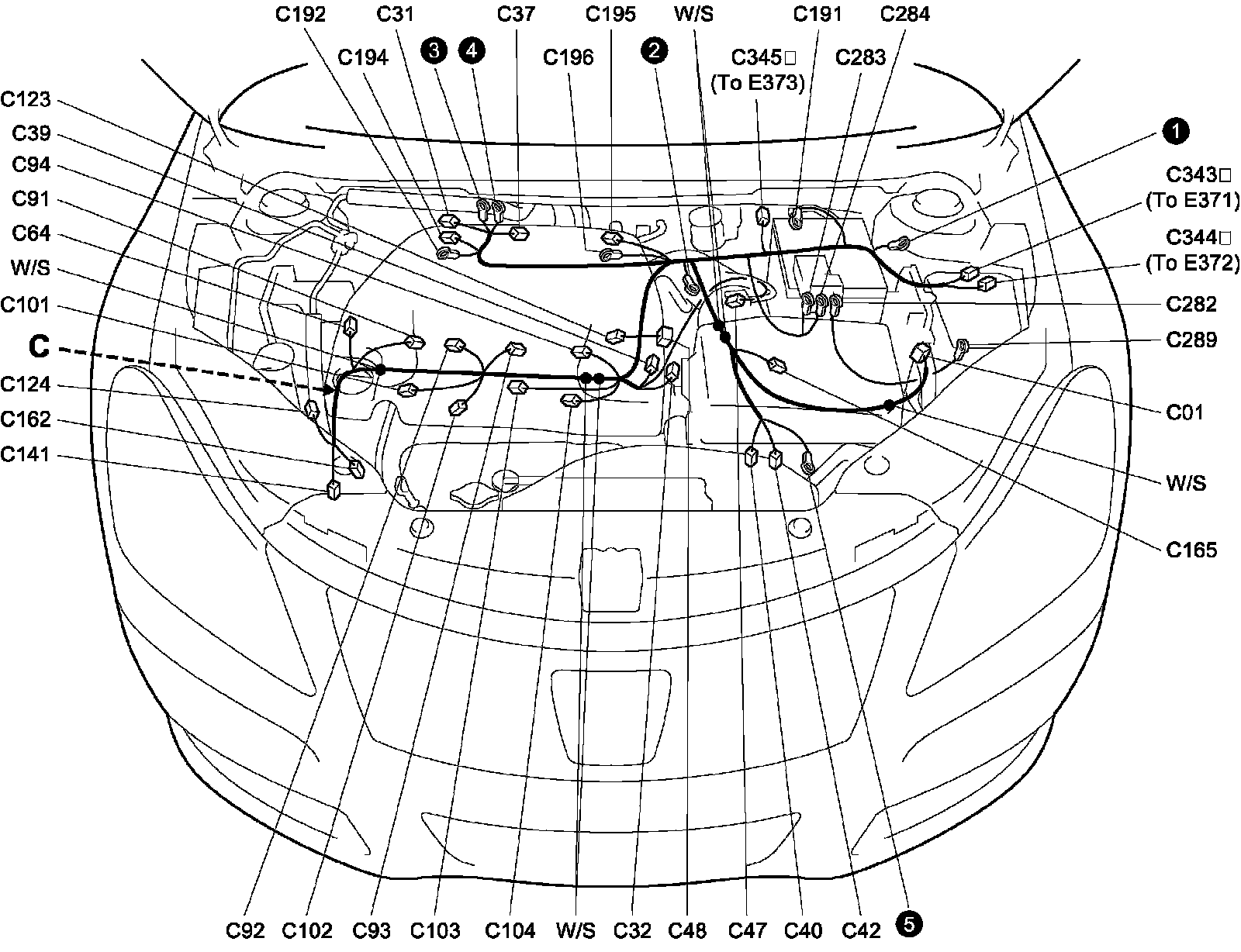

C: Engine Harness (M/T Model)

C: Engine Harness (M/T Model) View:

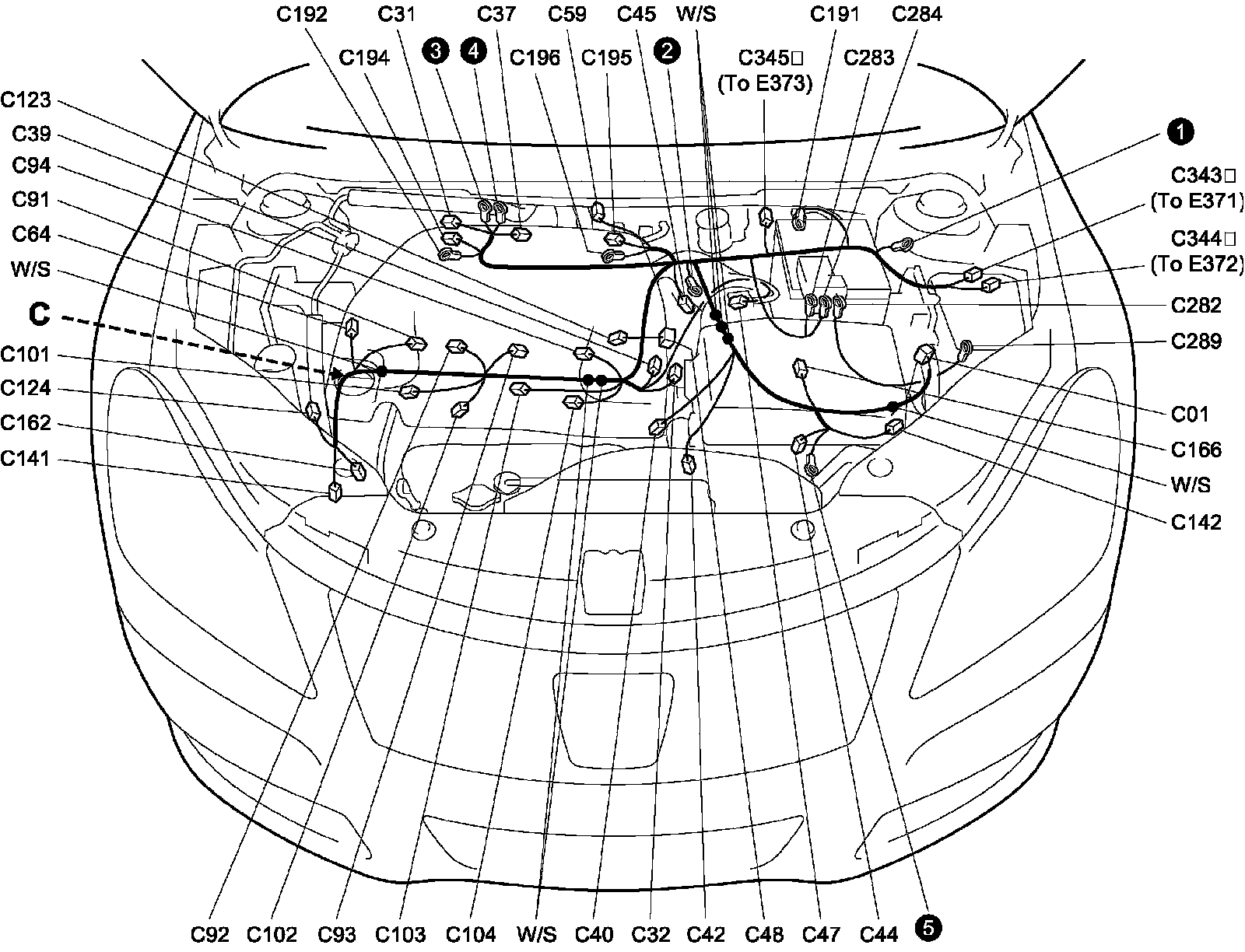

C: Engine Harness (CVT Model)

C: Engine Harness (CVT Model) View:

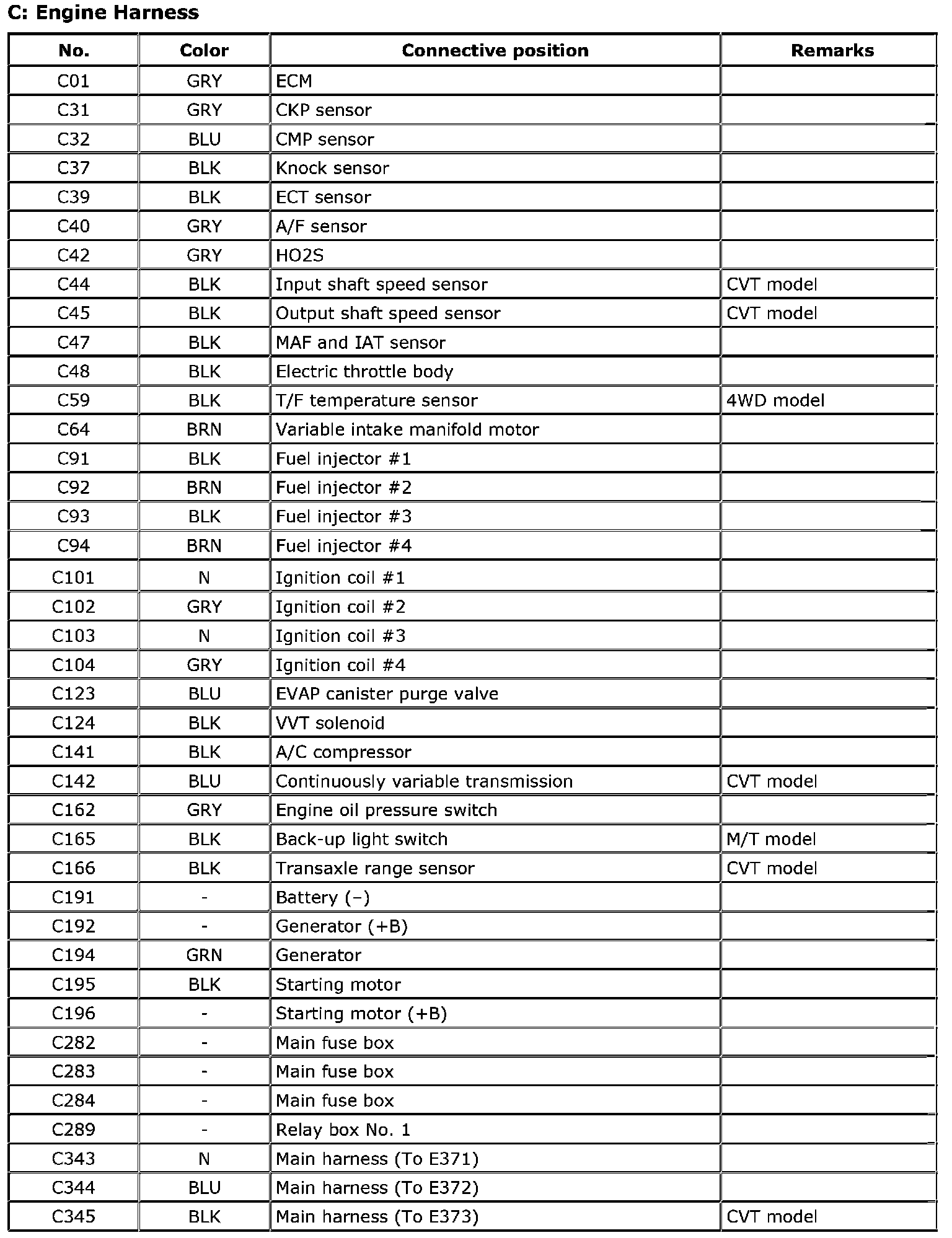

C: Engine Harness

C: Engine Harness Index:
