Turn Signal Switch: Testing and Inspection

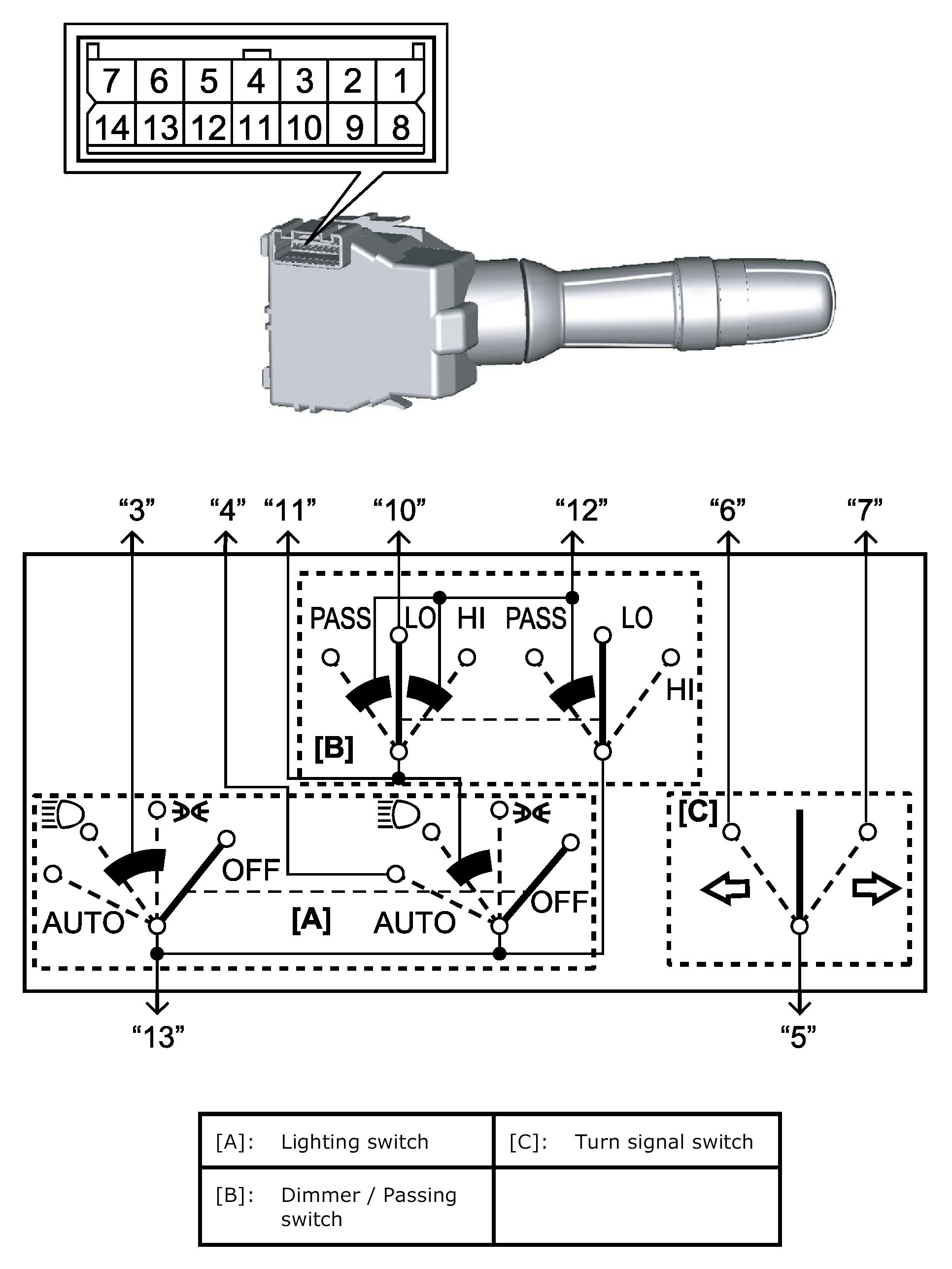

Lighting and Turn Signal Switch Inspection

Check continuity between terminals at each switch position. If check result is not as specified, replace switch.







Dimmer / Passing switch and lighting switch continuity







NOTE: Dimmer / Passing switch does not have dead point. (Both high and low beam lights light up simultaneously at transition point.)

Turn signal switch continuity
