Turn Signal Switch: Service and Repair

Lighting and Turn Signal Switch Removal and Installation

Removal
1. Remove steering column cover.
2. Disconnect lighting and turn signal switch connector.

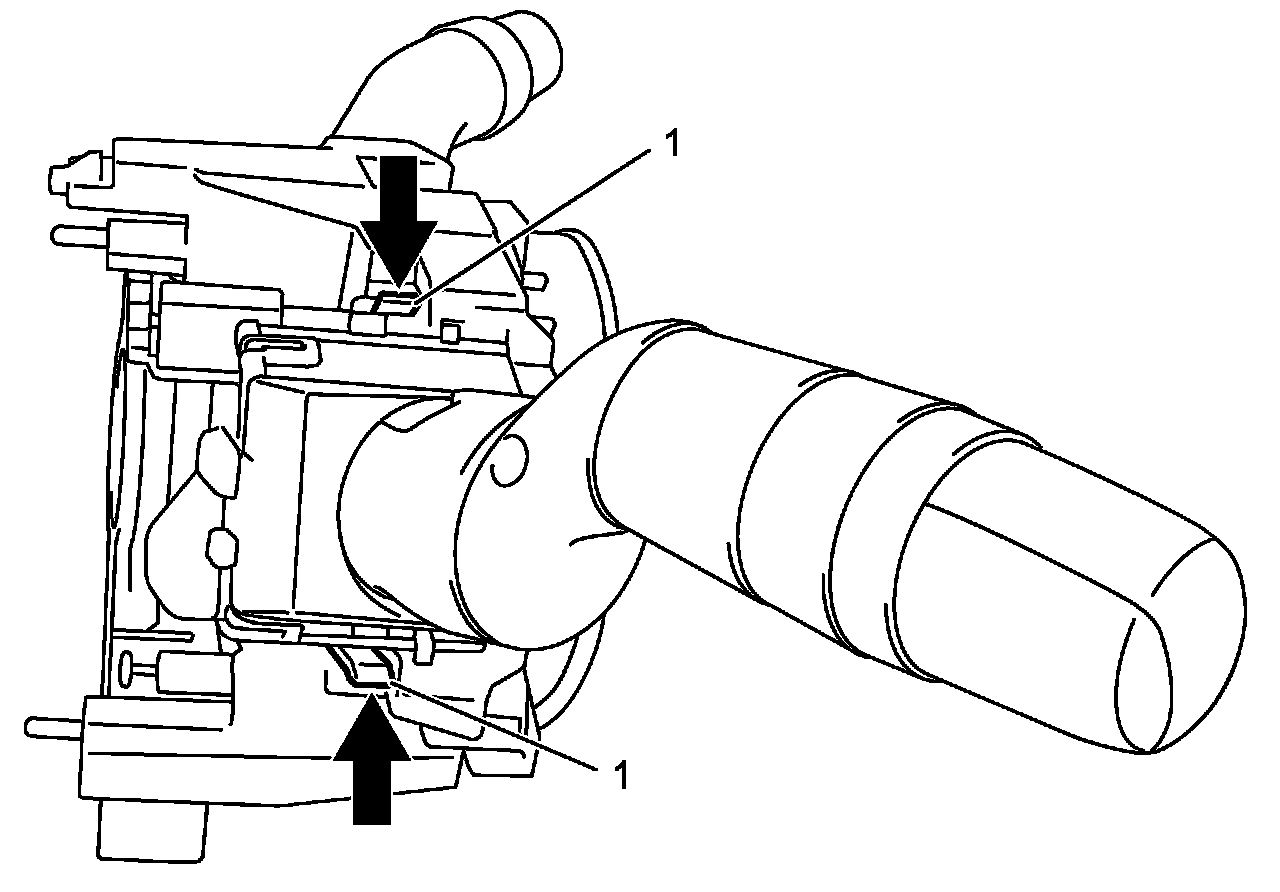

3. Remove lighting and turn signal switch from steering column while holding claws (1) pressed in directions of arrows.







Installation
Reverse removal procedure.
