Side Turn Signal Light Removal And Installation

Side Turn Signal Light Removal and Installation

Removal

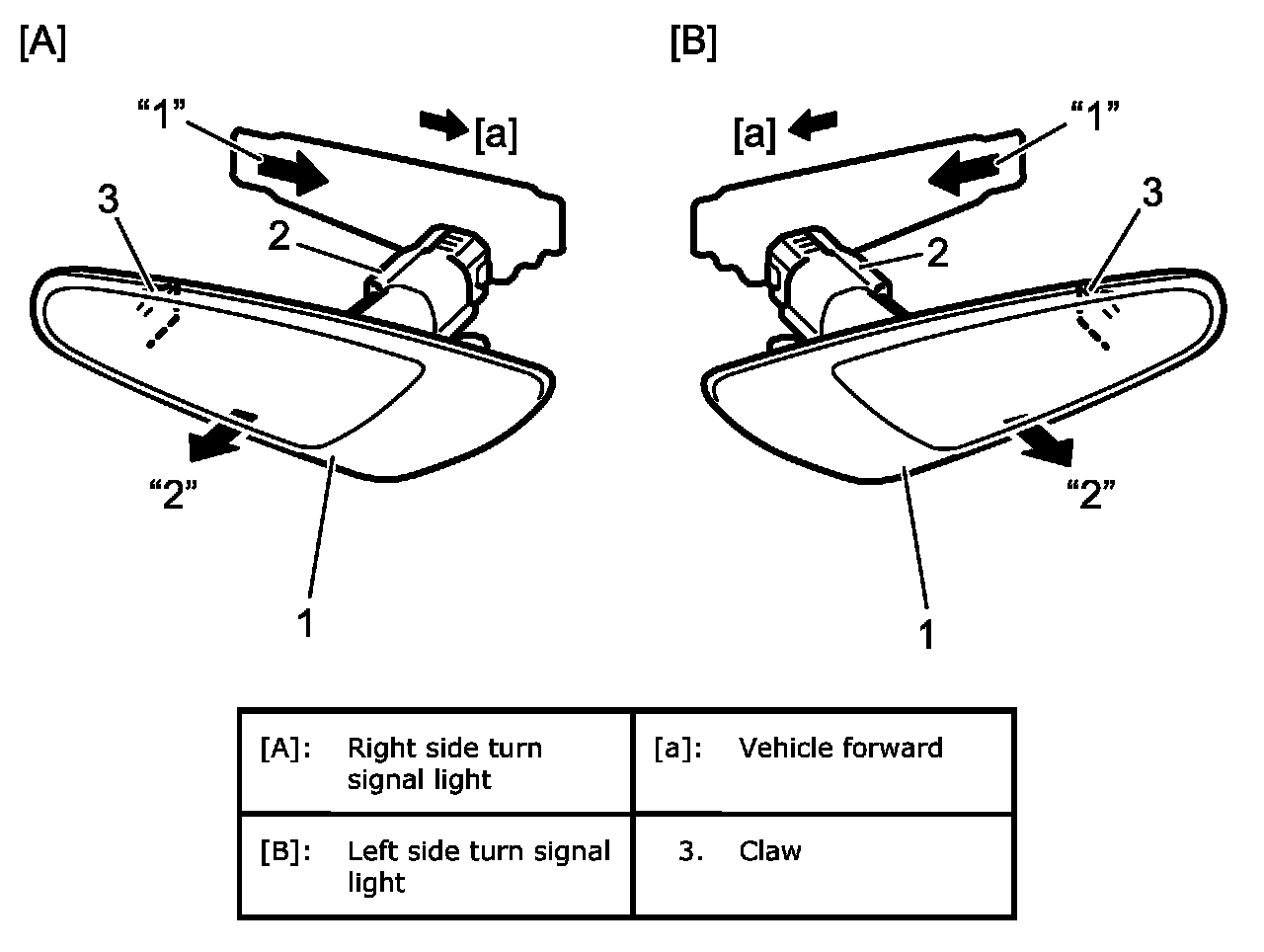

1. Remove side turn signal light (1) by moving it in order of "1" to "2" as shown in figure.
2. Disconnect side turn signal light connector (2).

NOTE: If bulb is blown out, replace side turn signal light assembly. Bulb of side turn signal light cannot be replaced.







Installation
Reverse removal procedure.
