Glove Box Lamp: Service and Repair

Glove Box Light Removal and Installation

Removal
1. Remove service manual case.

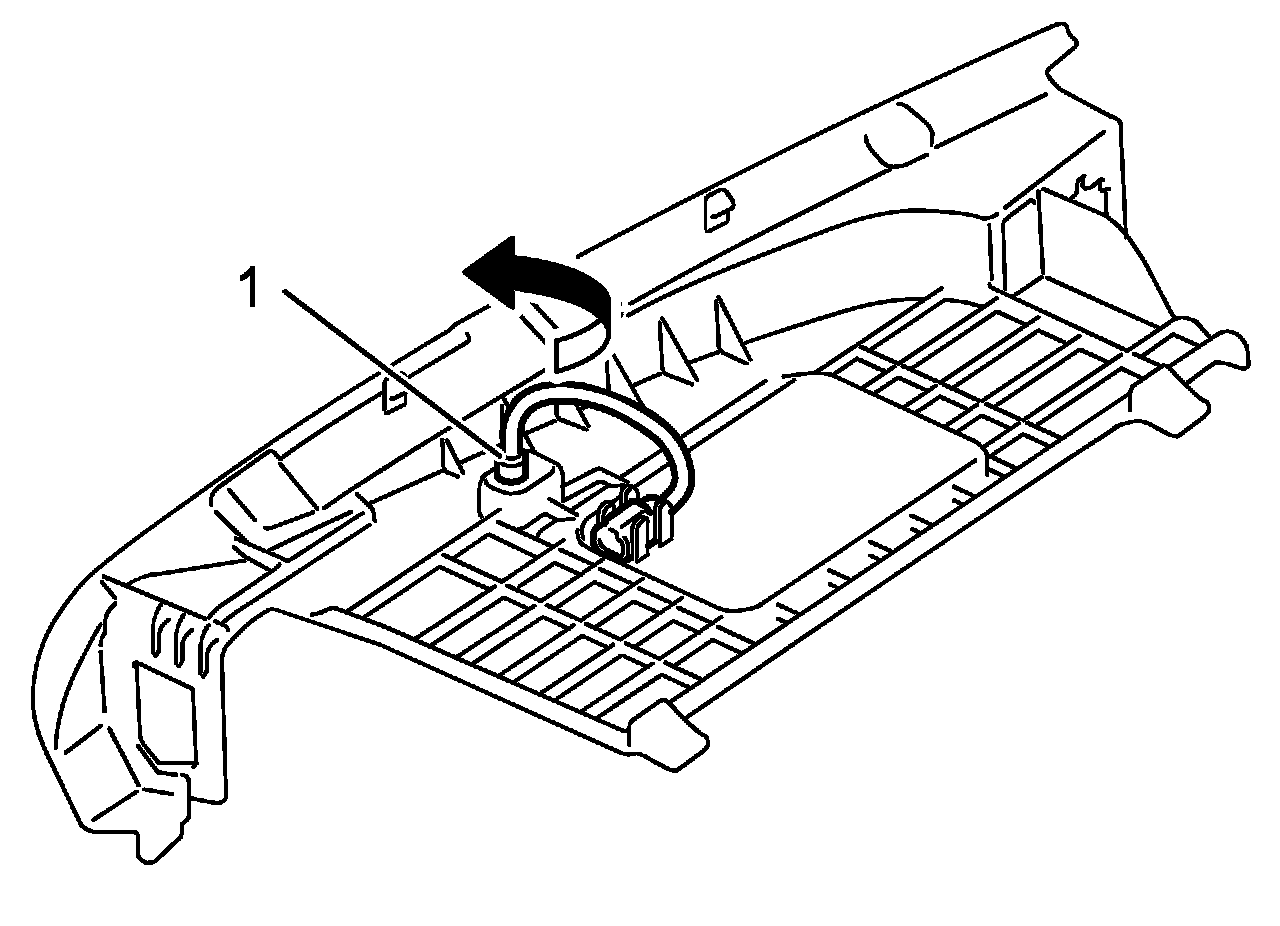

2. Turn socket (1) counterclockwise to remove bulb.







Installation
Reverse removal procedure.
