Brake Light Switch Removal and Installation
Brake Light Switch Removal and InstallationRemoval
1) Remove steering column hole cover.
2) Disconnect brake light switch connector.

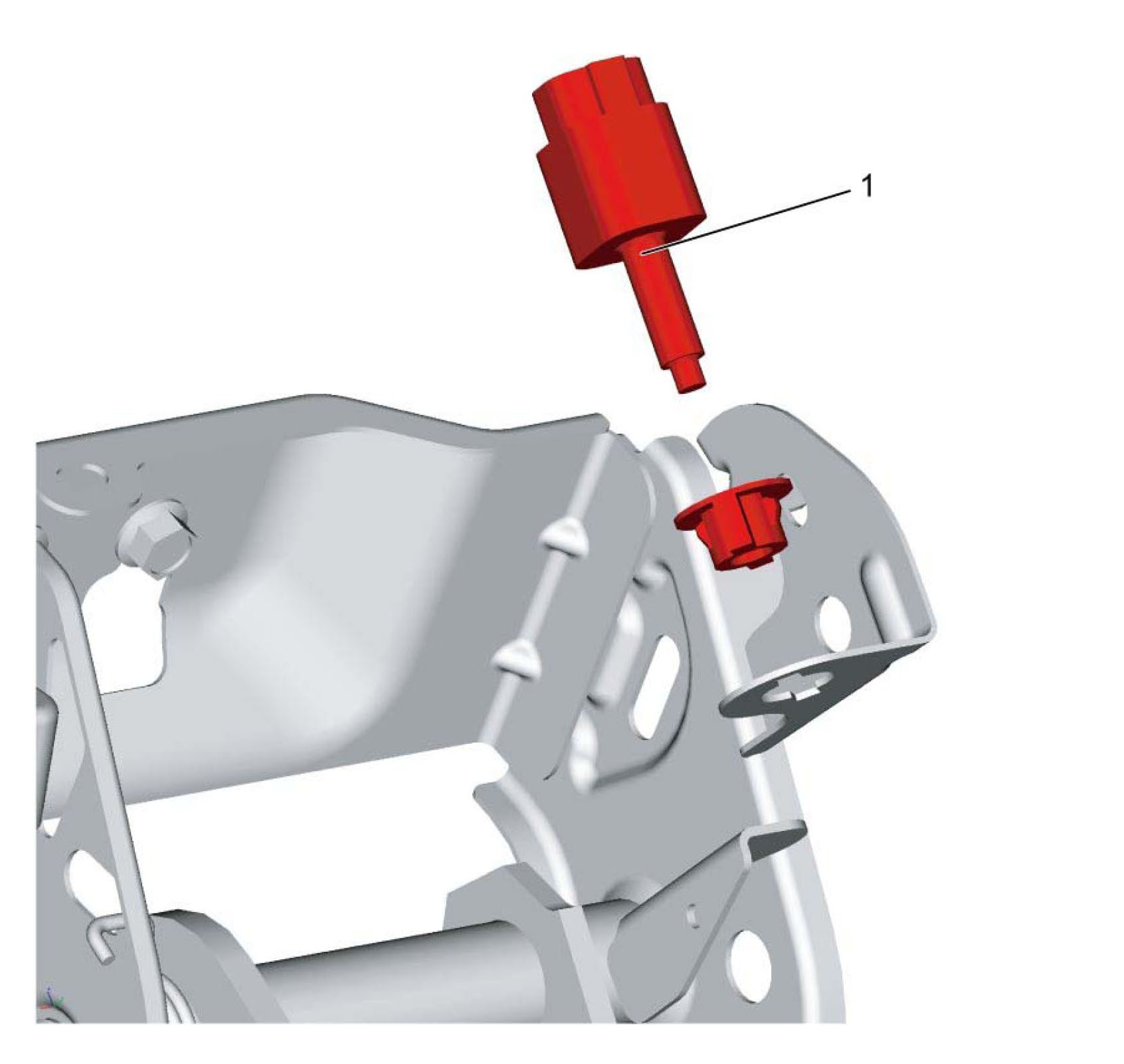

3) Remove brake light switch (1) from brake pedal assembly.
Installation
Reference: Brake Light Switch Inspection
Reverse removal procedure, noting the following point.
^ Adjust brake light switch.
