Solar Sensor: Testing and Inspection
Sunload Sensor InspectionNOTE: Use only incandescent light for inspection.
Driver side
1. Light over the sunload sensor (3) from the 90° left and the 60° up with incandescent light of approximately 100 W.
2. The distance between the sensor and the light should be approximately 100 mm (3.94 in.).
3. Measure the voltage between terminal "1" and terminal "3" of sunload sensor connector (1) by using voltmeter (2).
If check result is not as specified, replace sunload sensor.
Sunload sensor specification
More than 0.3 V
Passenger side

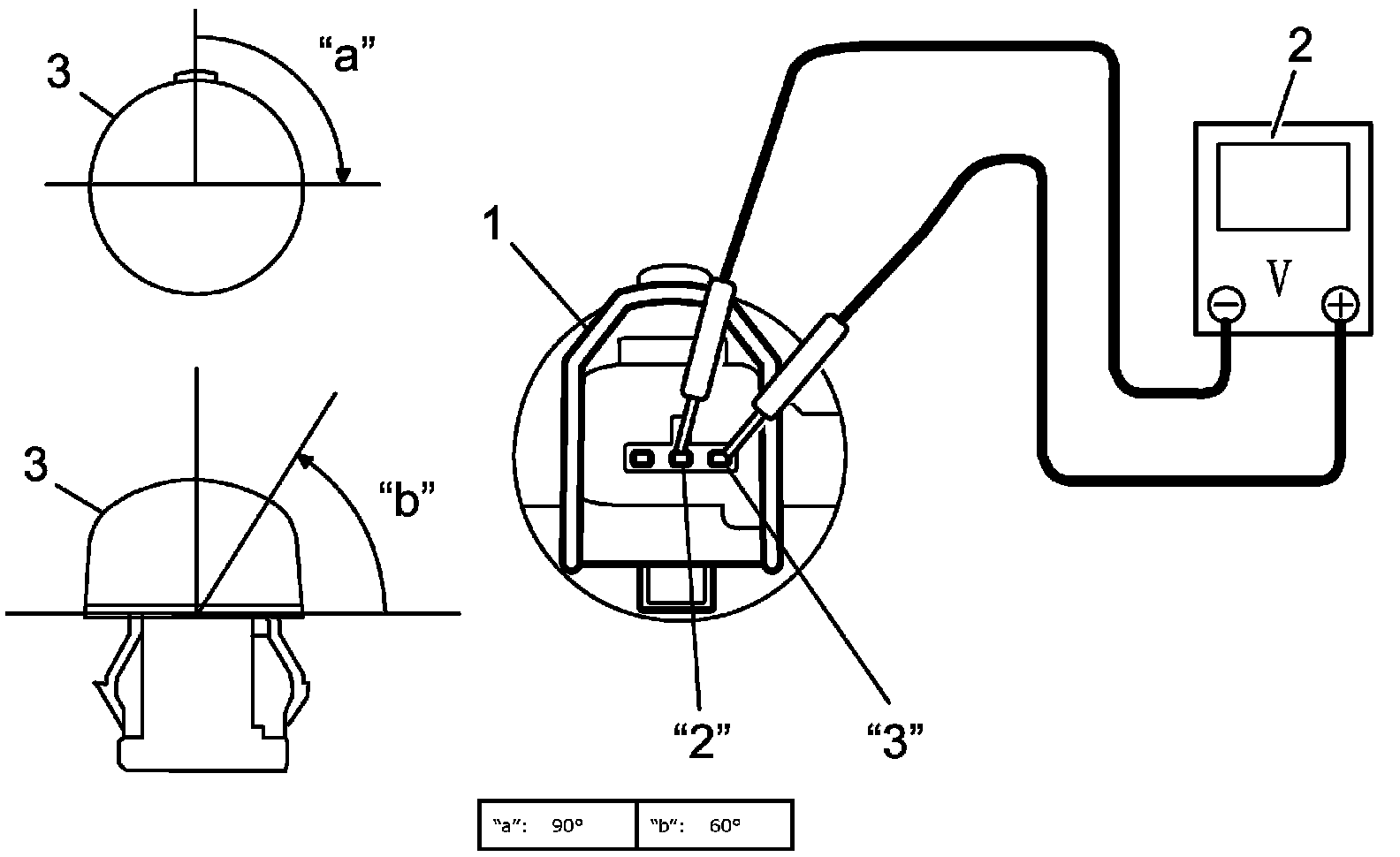

1. Light over the sunload sensor (3) from the 90� right and the 60� up with an incandescent light of approximately 100 W.
2. The distance between the sensor and the light should be approximately 100 mm (3.94 in.).
3. Measure the voltage between terminal "2" and terminal "3" of sunload sensor connector (1) by using voltmeter (2).
If check result is not as specified, replace sunload sensor.
Sunload sensor specification
More than 0.3 V
