Evaporator Core: Service and Repair

Evaporator Removal And Installation

Removal
1. Remove instrument panel with Steering support member.
2. Remove HVAC unit.
3. Disassemble HVAC unit and then remove evaporator (2).
4. Remove evaporator temperature sensor (1) from evaporator.






Installation
Reverse removal procedure noting the following points.

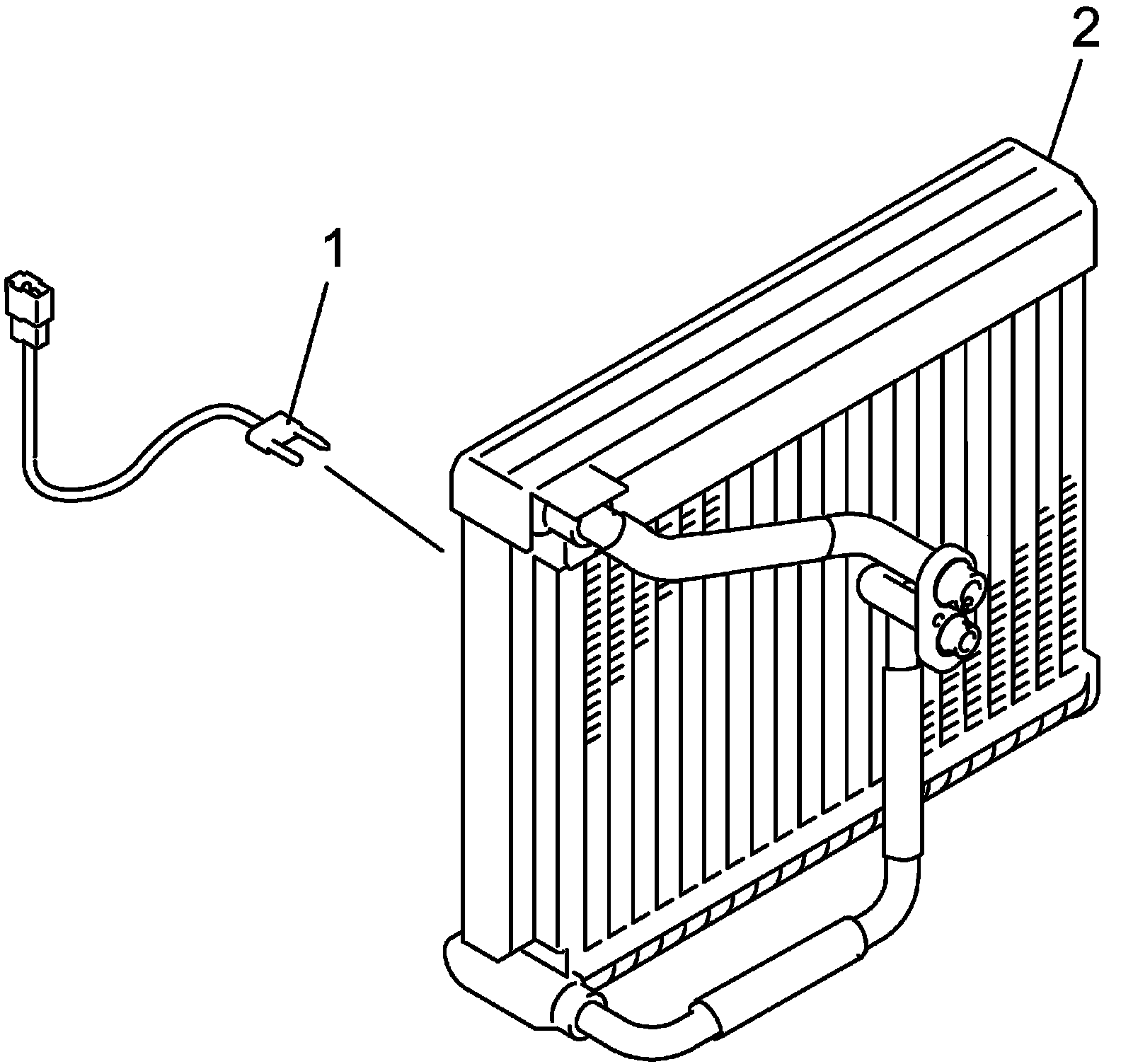

- Install evaporator temperature sensor (1) onto evaporator (2) as shown.
