Cabin Air Filter / Purifier: Service and Repair

HVAC Air Filter Removal And Installation

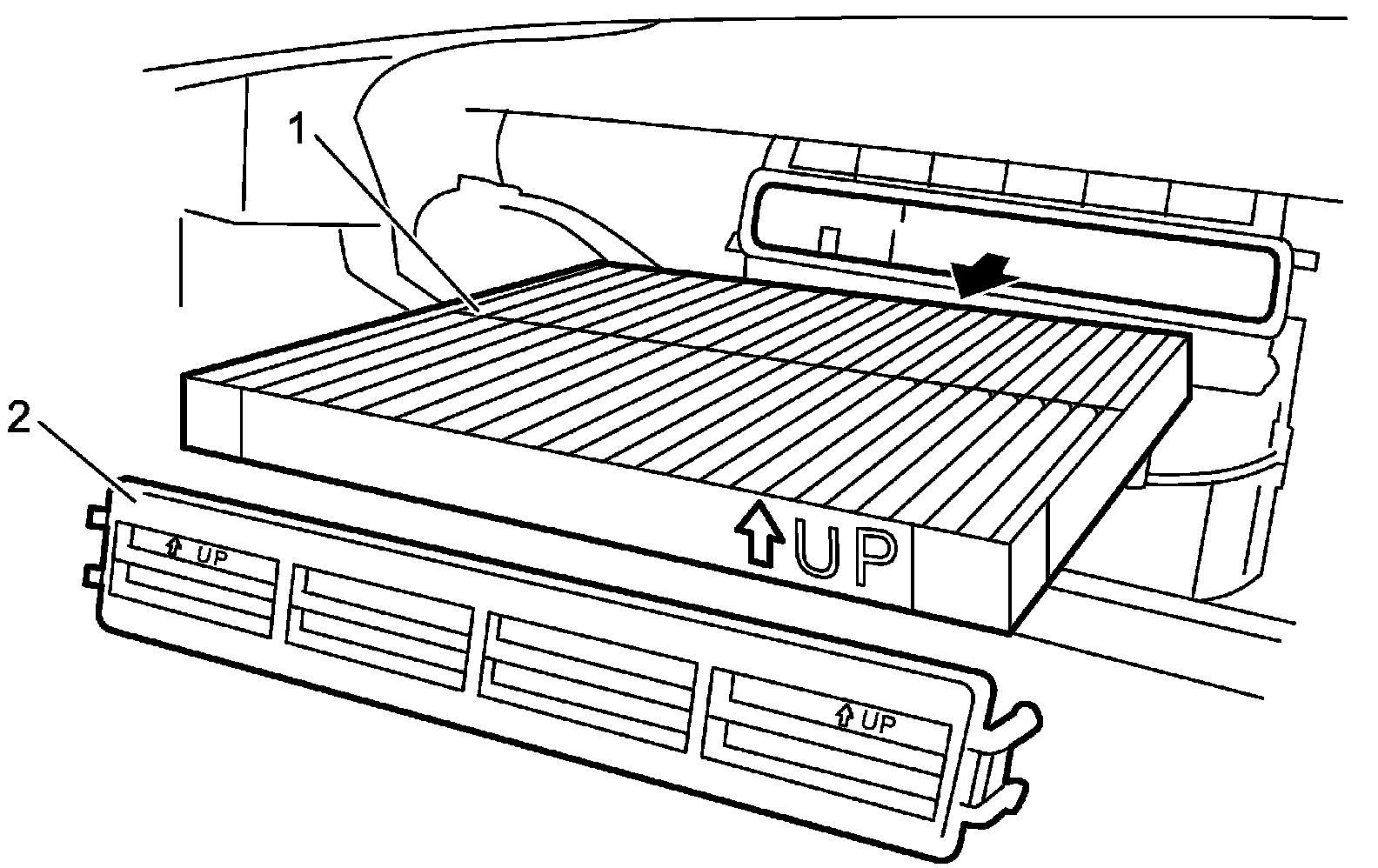

Removal
1. Remove glove box.
2. Remove HVAC air filter holder (2) from HVAC unit.
3. Remove HVAC air filter (1) from HVAC unit.

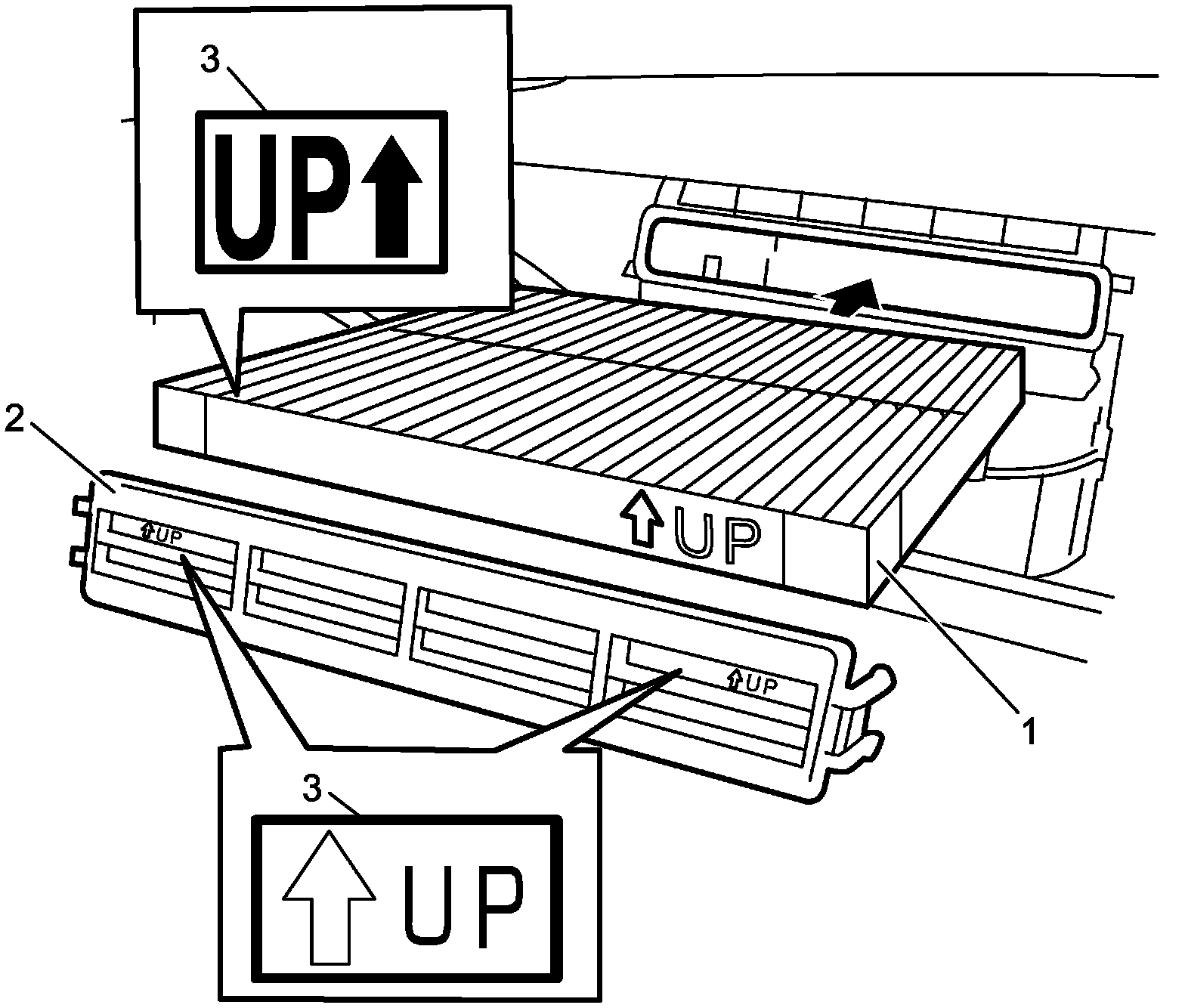

Installation
Reverse removal procedure noting the following points.
- Install HVAC air filter (1) and HVAC air filter holder (2) into HVAC unit noting the direction of arrow (3).
