Blower Motor: Testing and Inspection

Blower Motor Inspection

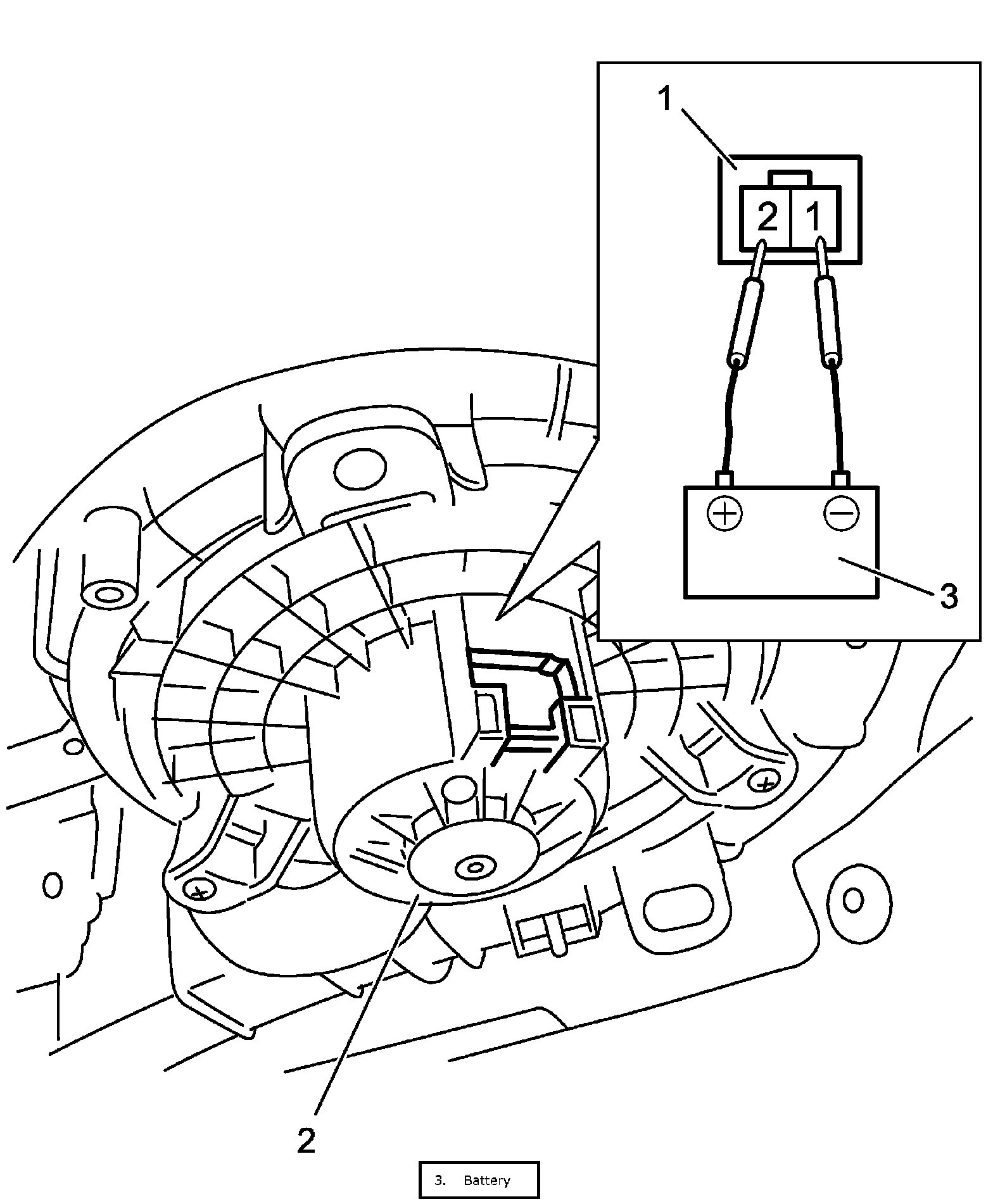

Check operation of blower motor (2) when connecting battery positive terminal to terminal "2" and negative terminal to terminal "1" of blower motor connector (1).

If check result is not satisfactory, replace blower motor.
