Blower Motor Resistor: Service and Repair

Blower Motor Controller Removal And Installation

Removal
1. Remove passenger side instrument panel undercover.

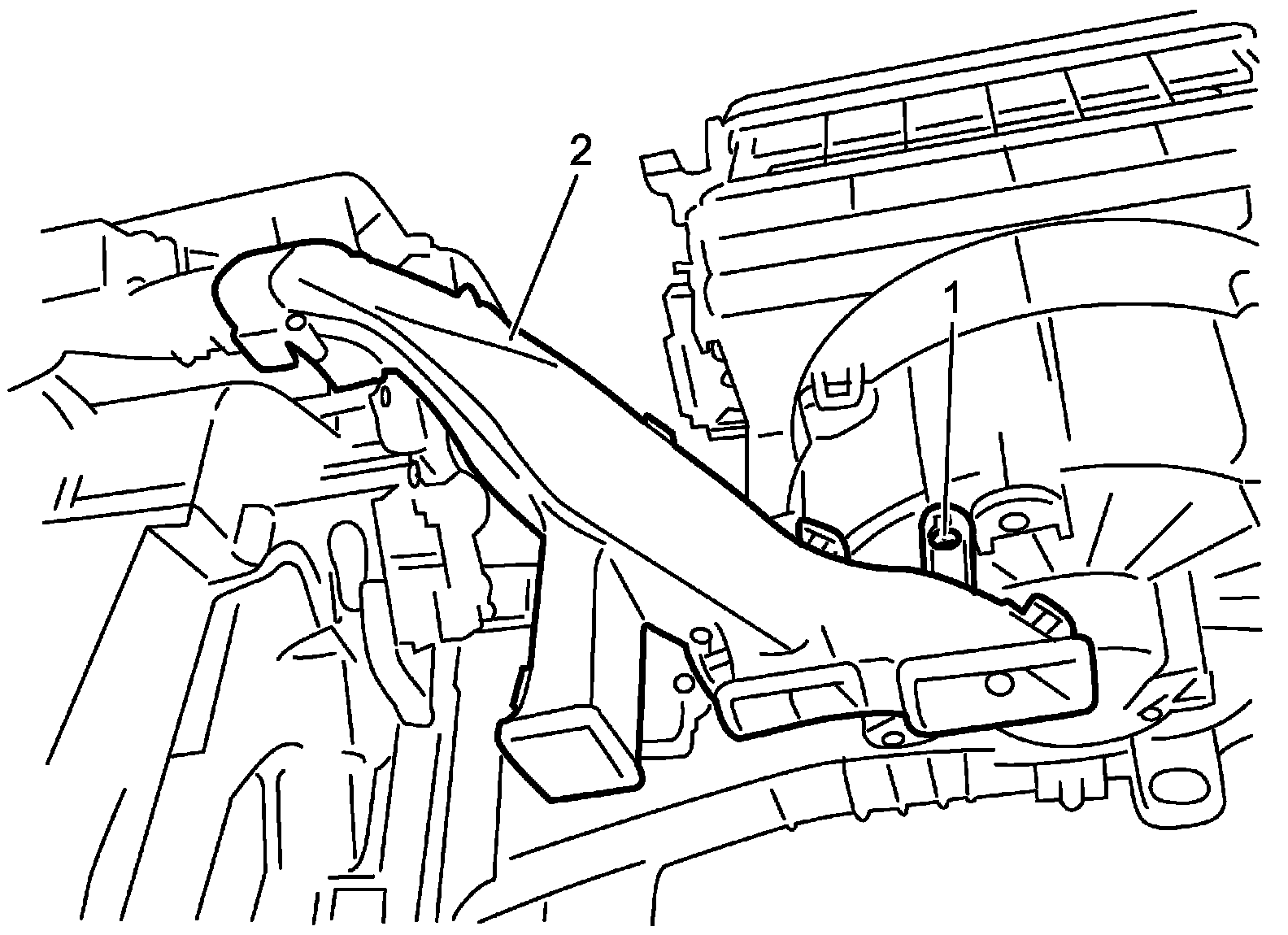

2. Remove a screw (1). Then remove passenger side foot duct (2) from HVAC unit.

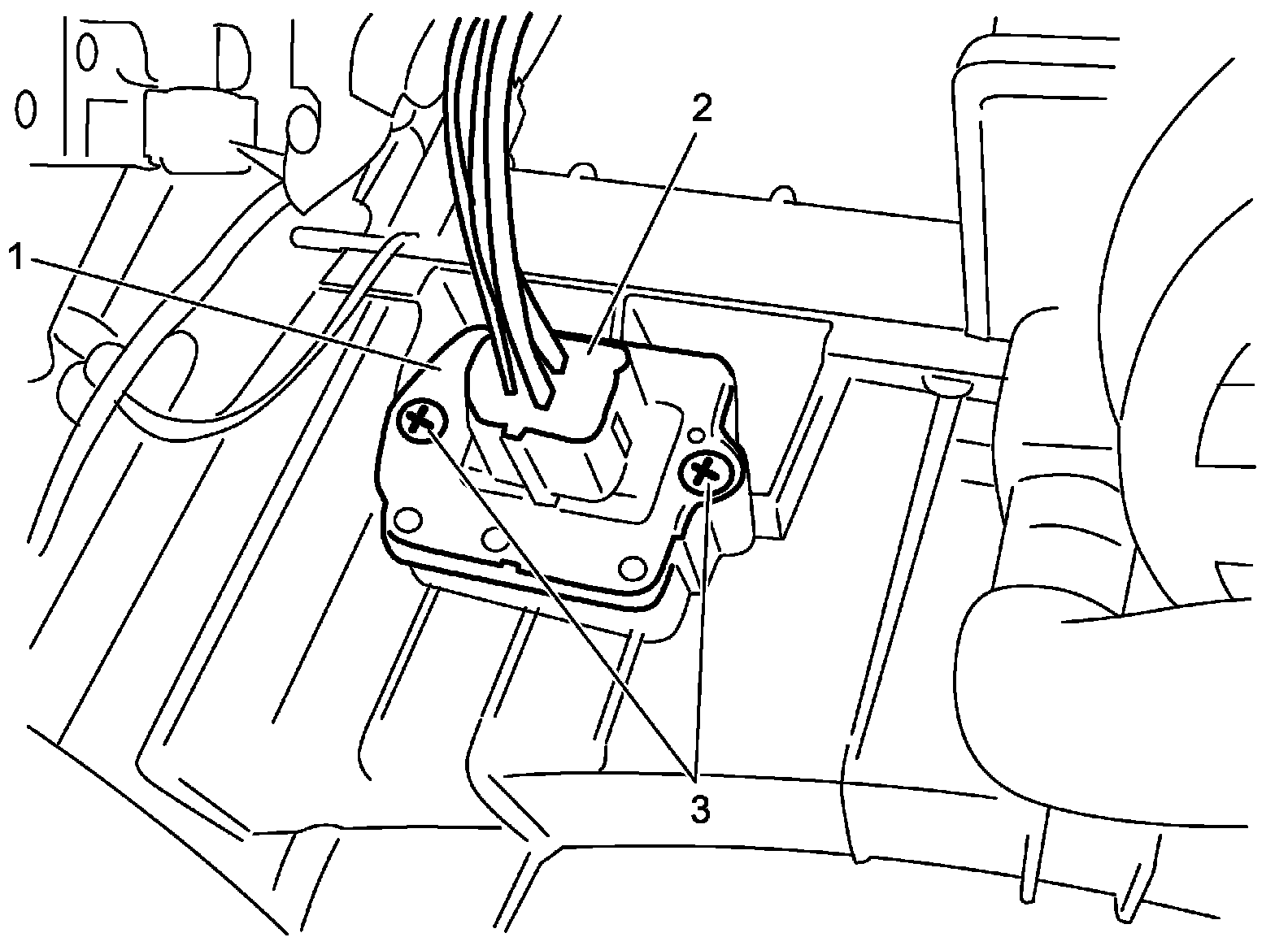

3. Disconnect connector (2) and remove screws (3).
Then remove blower motor controller (1) from HVAC unit.






Installation
Reverse removal procedure.
