Muffler: Service and Repair
Exhaust Pipe and Muffler Removal and InstallationReference: Exhaust System Components
To remove and install exhaust pipes and muffler, refer to Exhaust System Components and noting the following points:

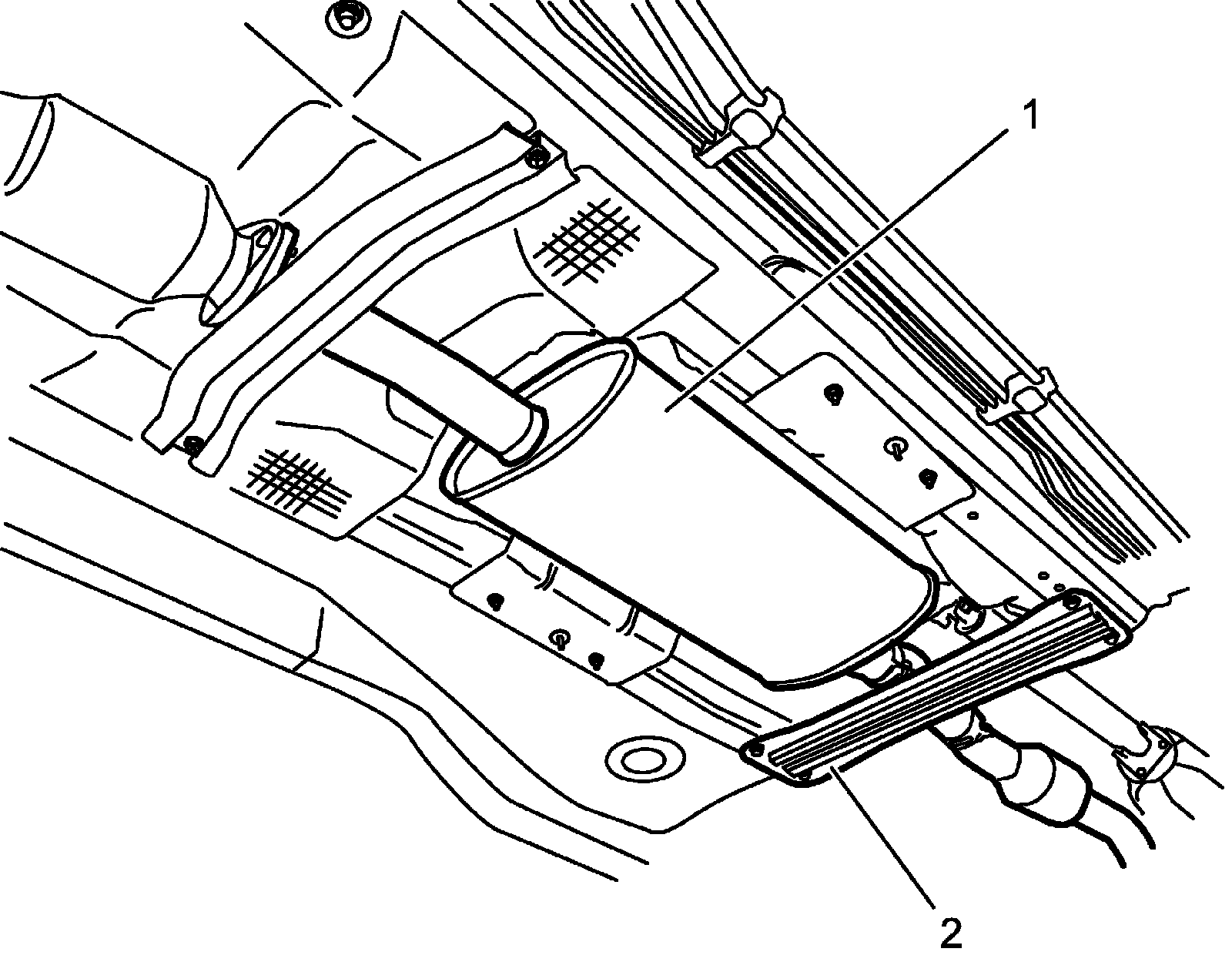

^ Before removal of exhaust pipe No.2 (1), remove right and left main floor under covers and floor tunnel bar (2).
^ Tighten bolts and nuts to specified torques when reassembling exhaust pipes and muffler.
^ Run engine and check for exhaust gas leakage.
