Engine Oil Control Valve: Service and Repair

OCV Removal and Installation

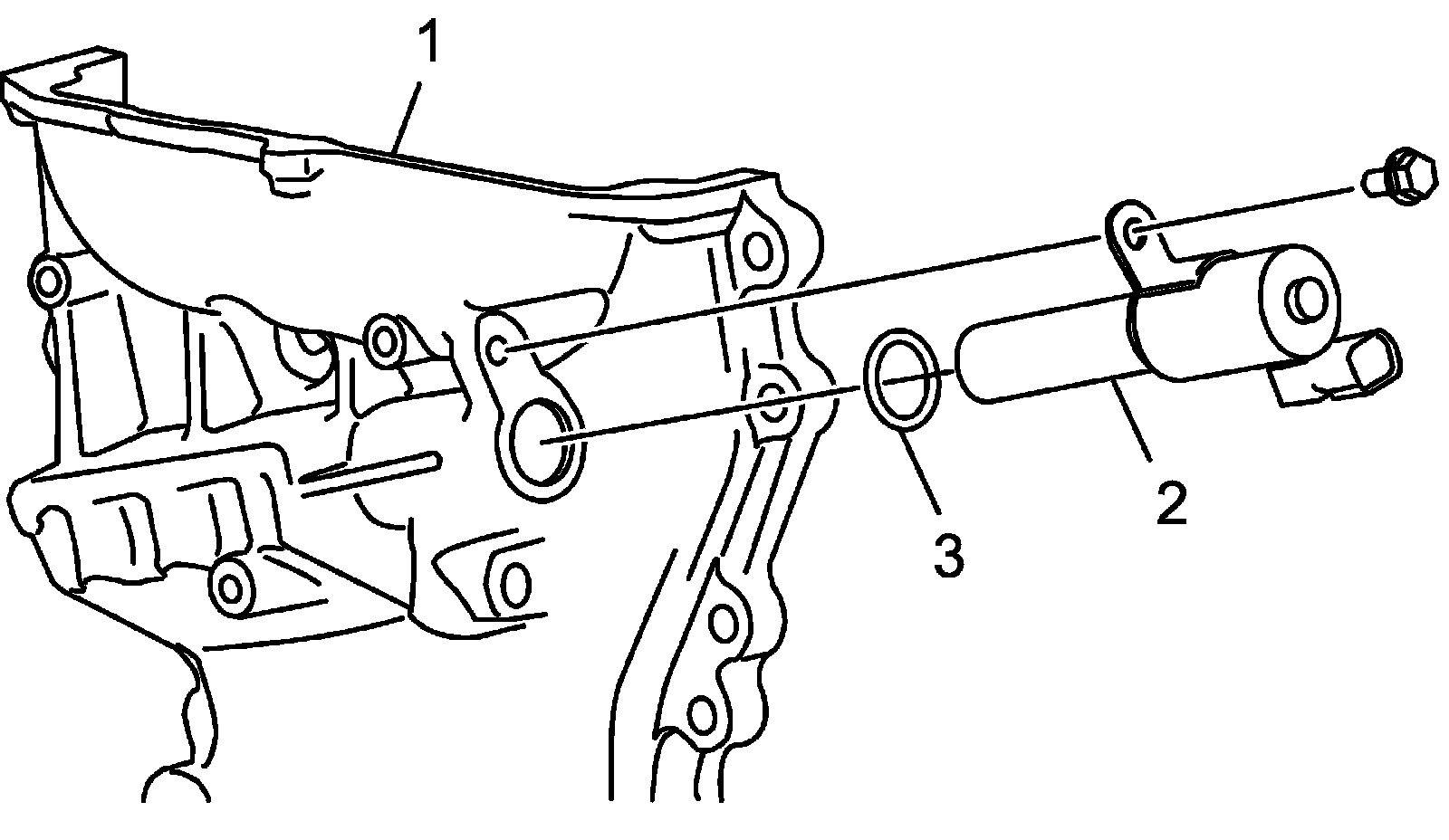

Reference: Timing Chain Cover Components

Removal
Remove OCV (2) and O-ring (3) from timing chain cover (1).





Installation
Reverse removal procedure noting the following point:
^ Tighten OCV bolt to specified torque.
Tightening torque
OCV bolt: 11 Nm (1.1 kg-m, 8.5 lbf-ft)
