Oil Pump Drive Sprocket Inspection

Oil Pump Drive Sprocket Inspection

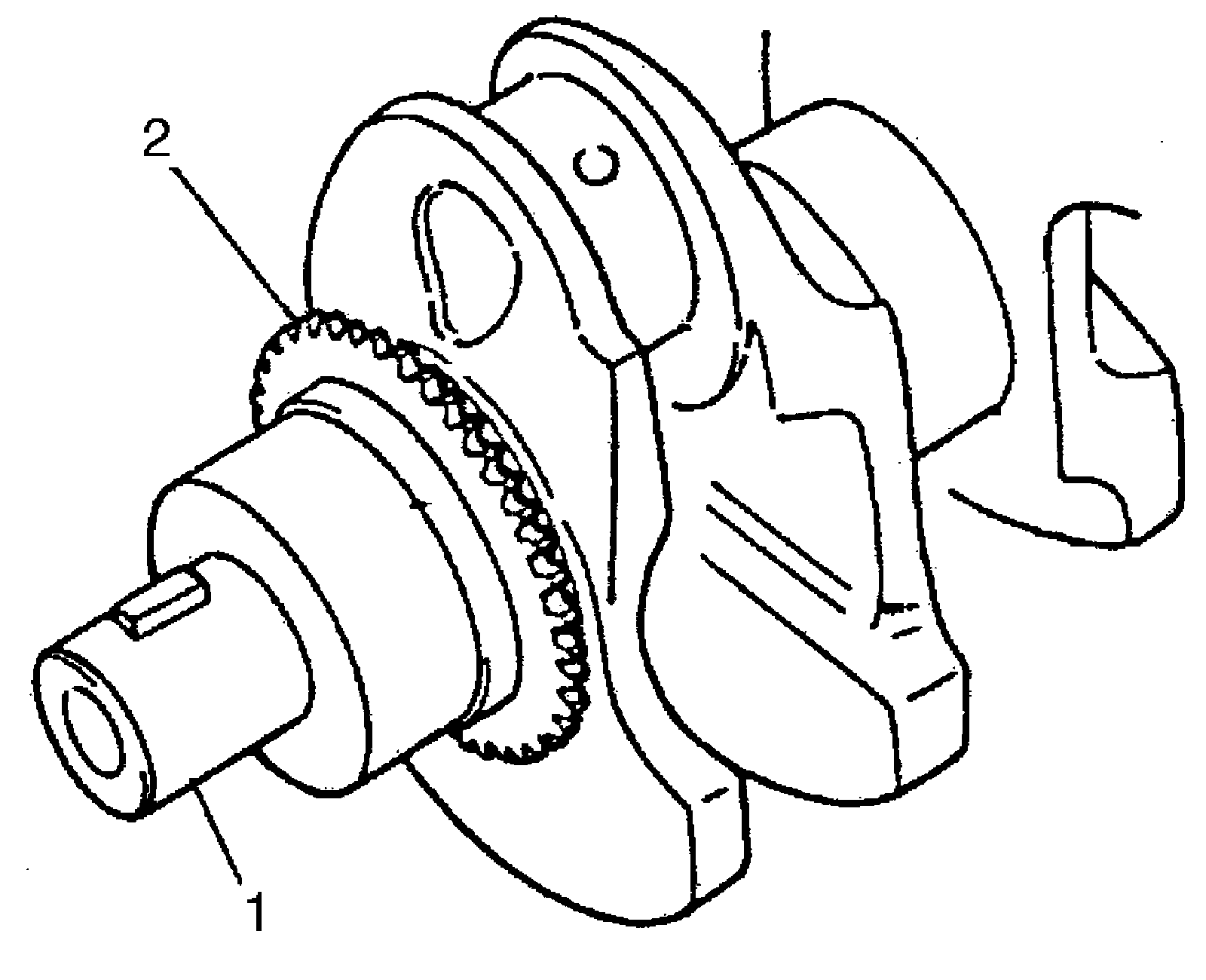

Check oil pump drive sprocket (2) for cracks or any damage.
Replace crankshaft (1) if defective conditions are found.
