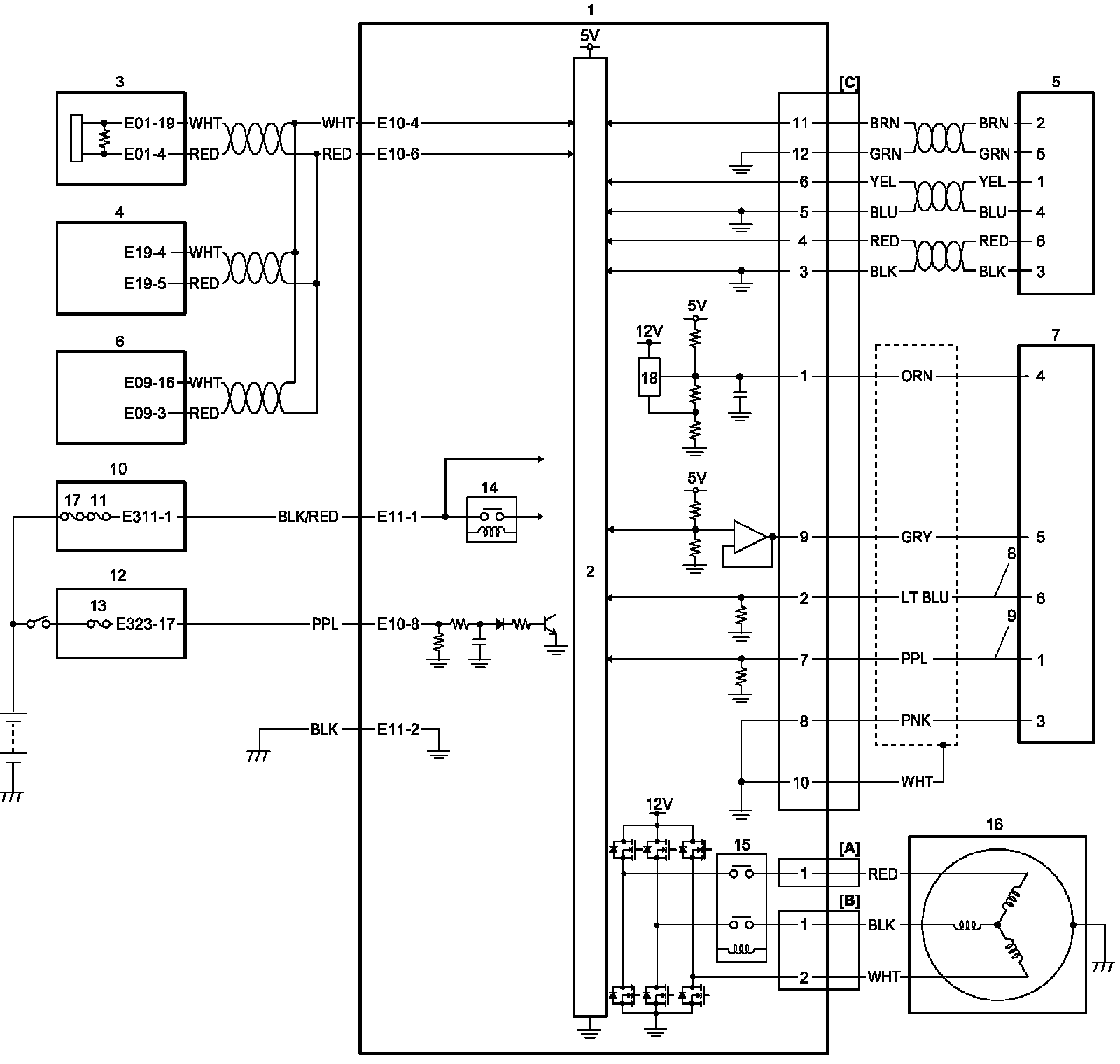

EPS System Wiring Circuit Diagram

EPS System Wiring Circuit Diagram








Terminal Arrangement of P/S Control Module Coupler (Viewed from Harness Side)








NOTE:
For circuit name and terminal voltage, refer to Inspection of P/S Control Module and Its Circuits.
