System Schematic

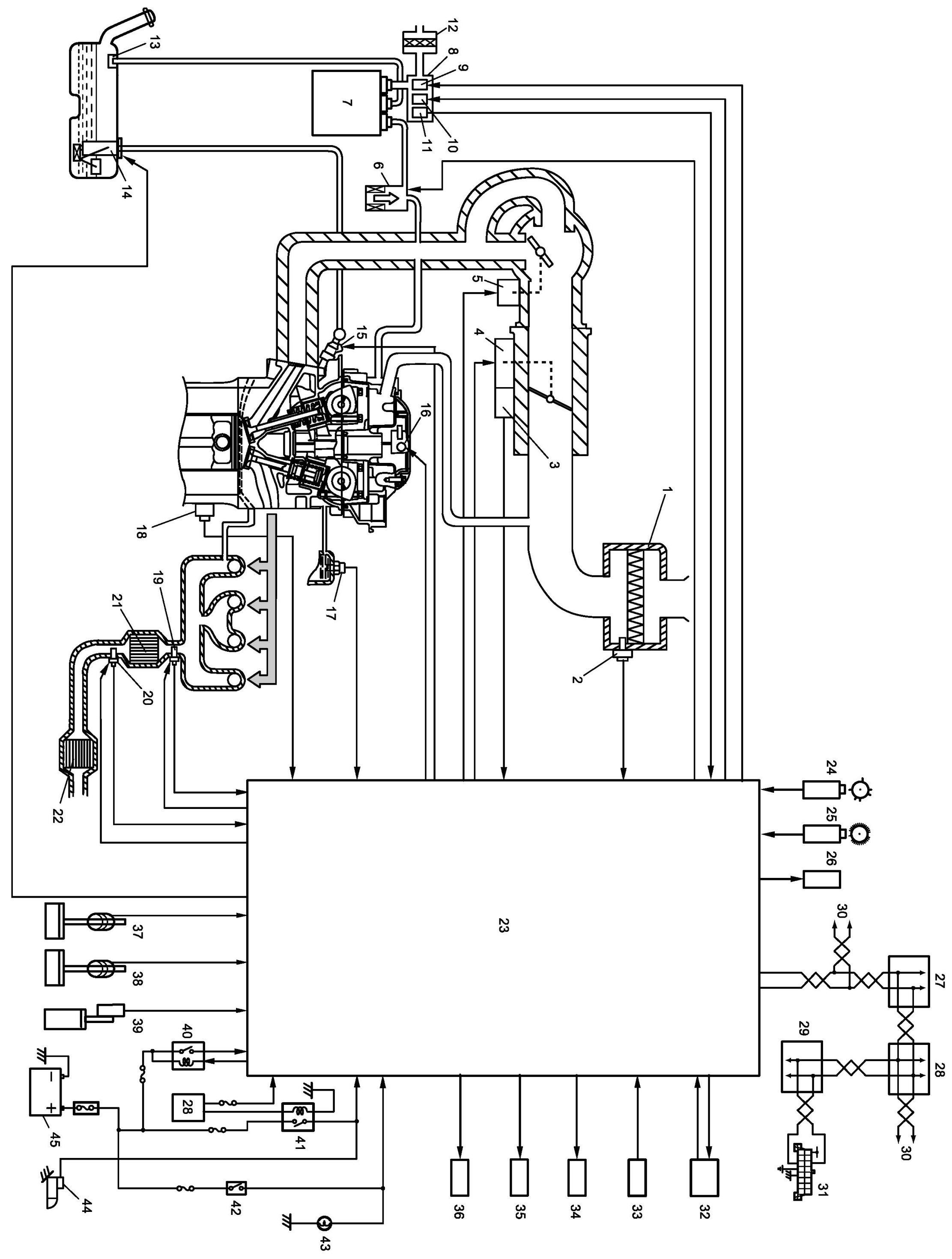

Engine and Emission Control System Diagram

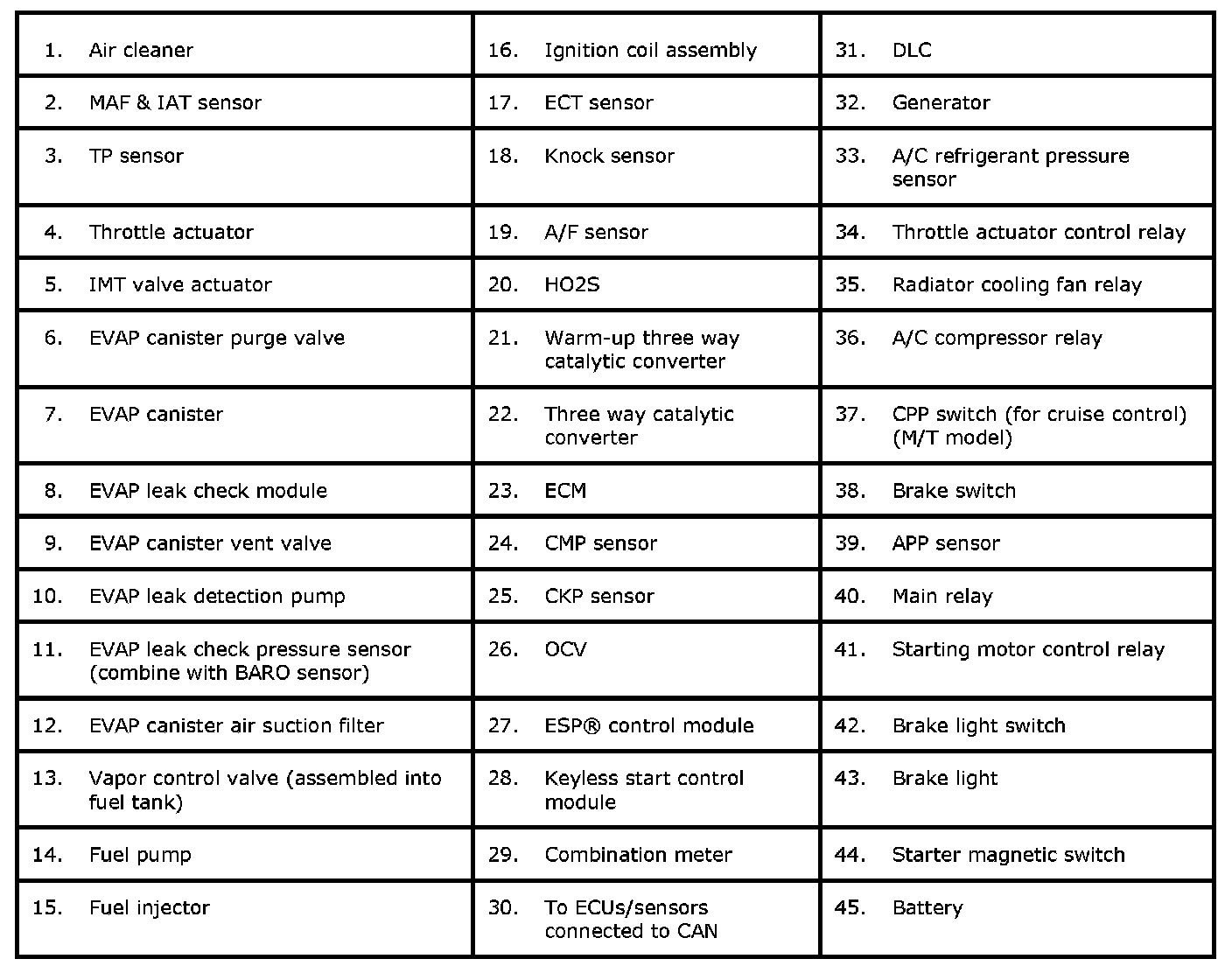

Engine And Emission Control System Diagram:
