Junction Block Inner Circuit (Detail)
Junction Block Inner Circuit (Detail)Abbreviations
Abbreviations:

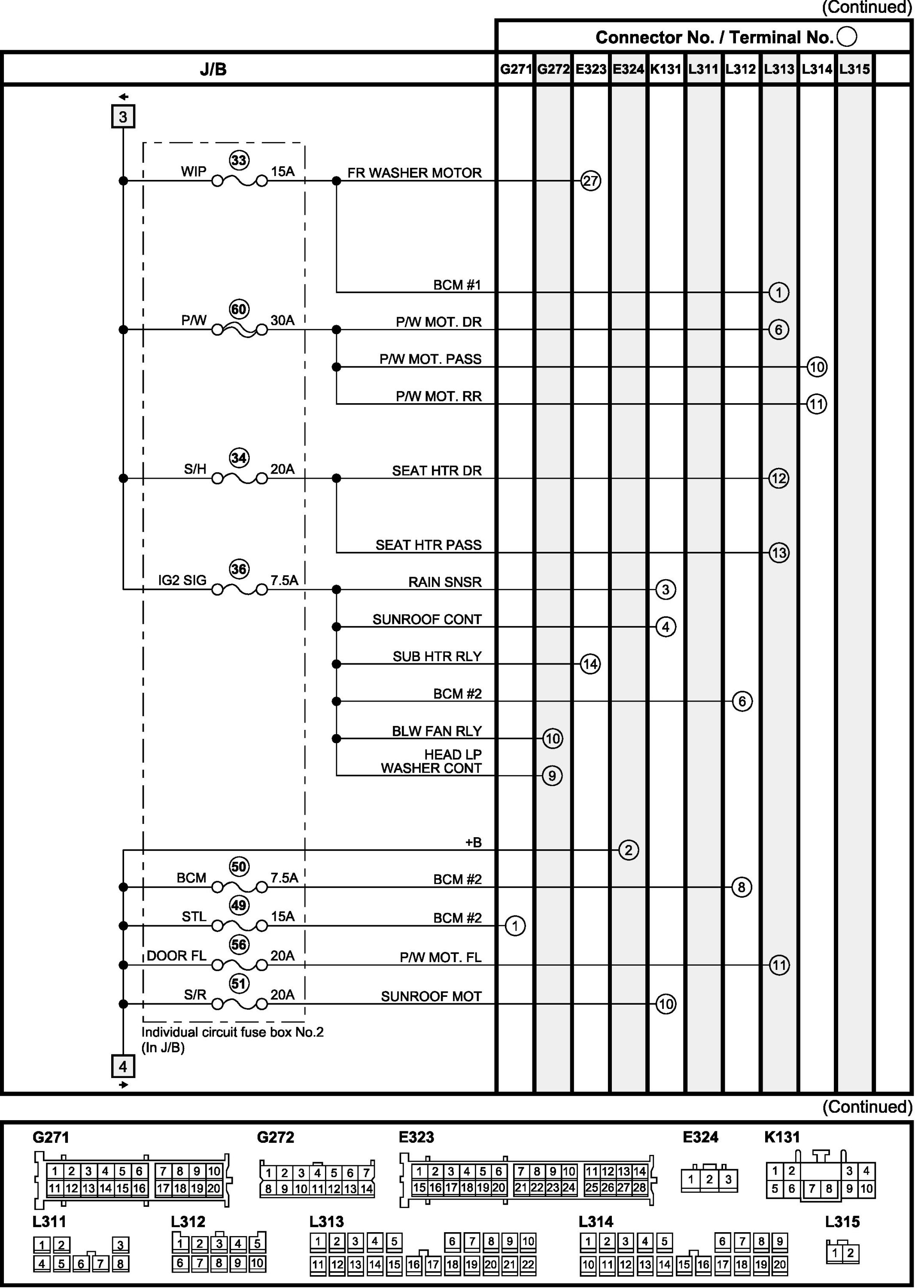

Junction Block Inner Circuit (Detail) Diagram 1:

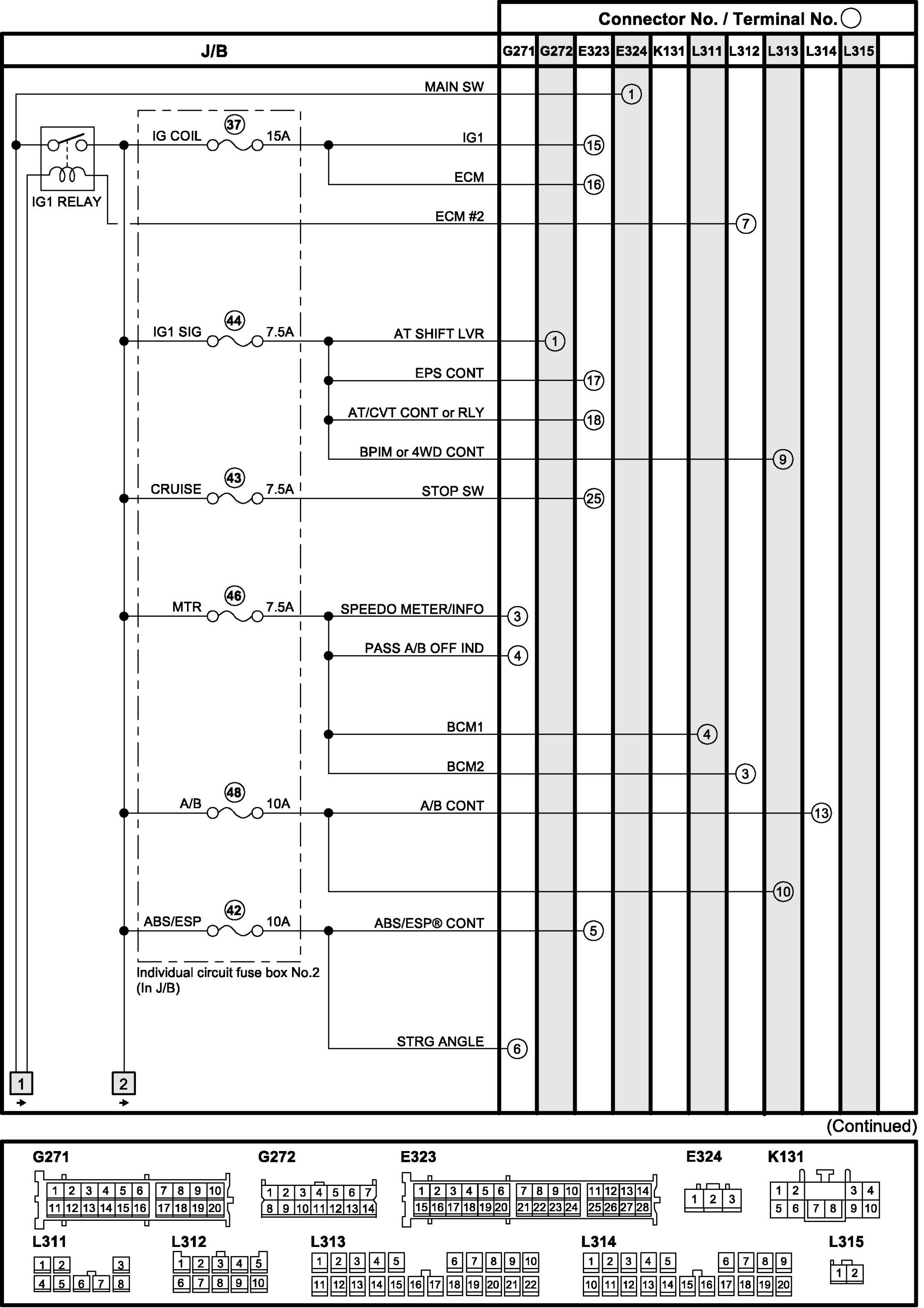

Junction Block Inner Circuit (Detail) Diagram 2:

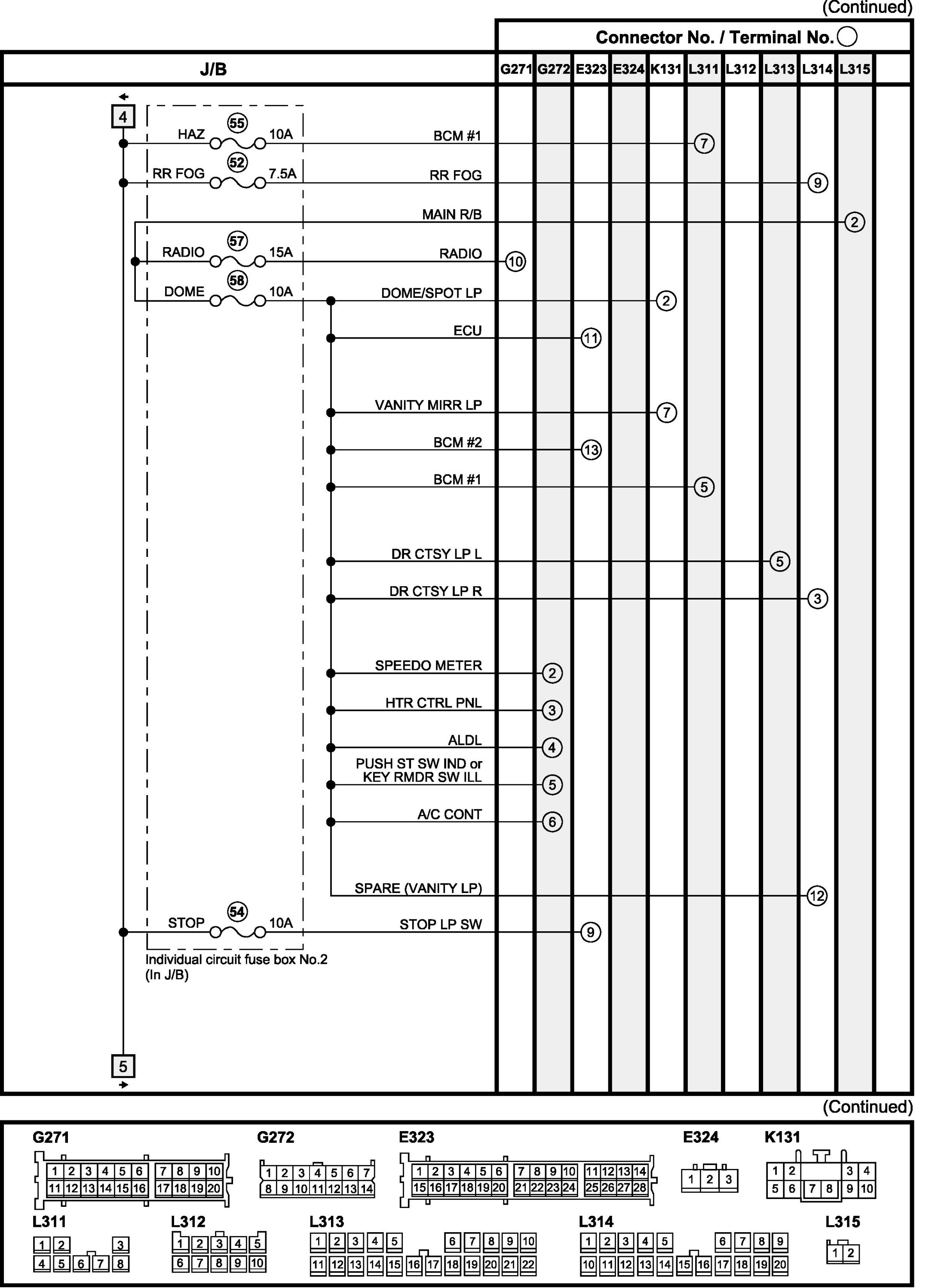

Junction Block Inner Circuit (Detail) Diagram 3:

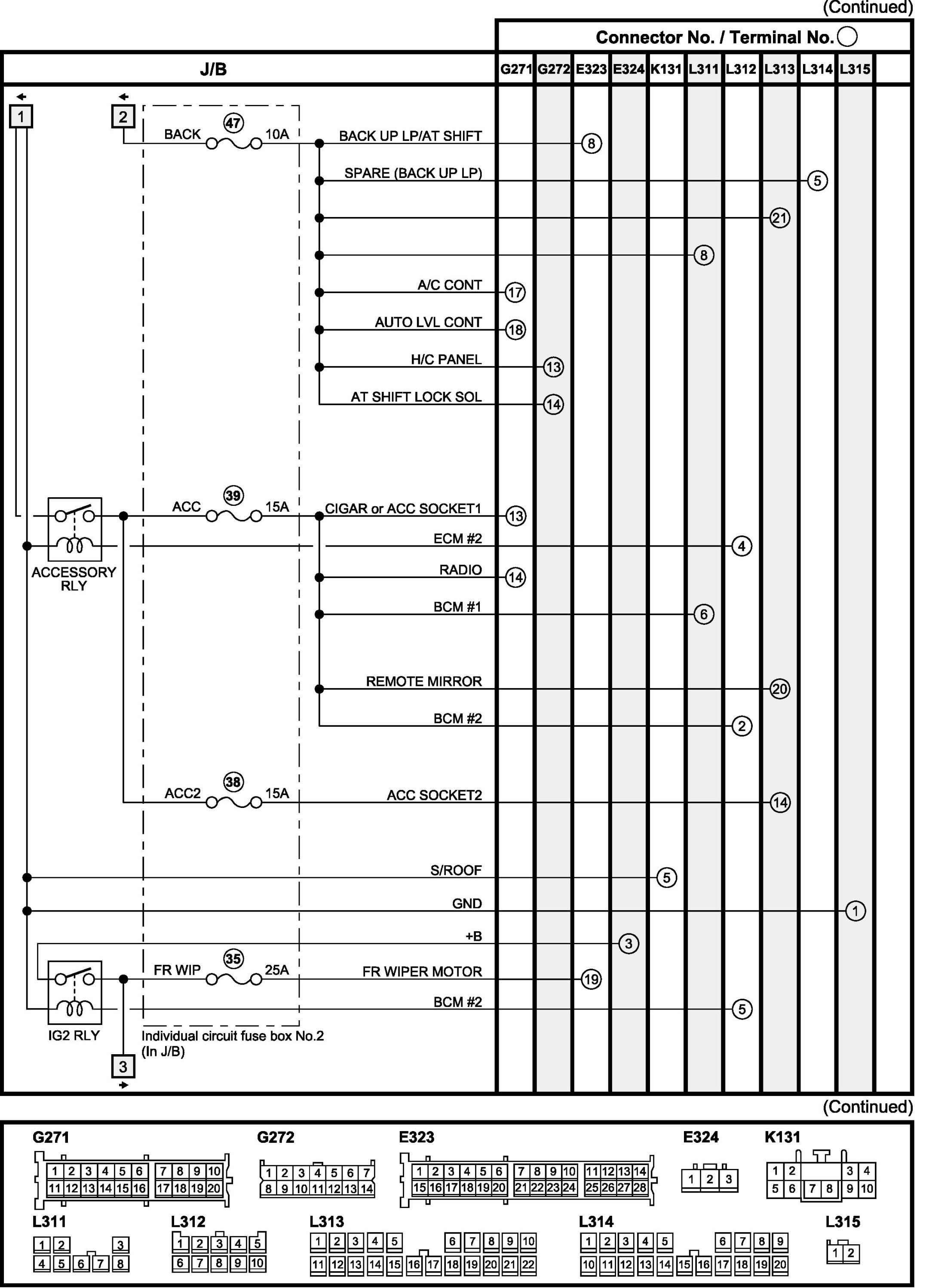

Junction Block Inner Circuit (Detail) Diagram 4:

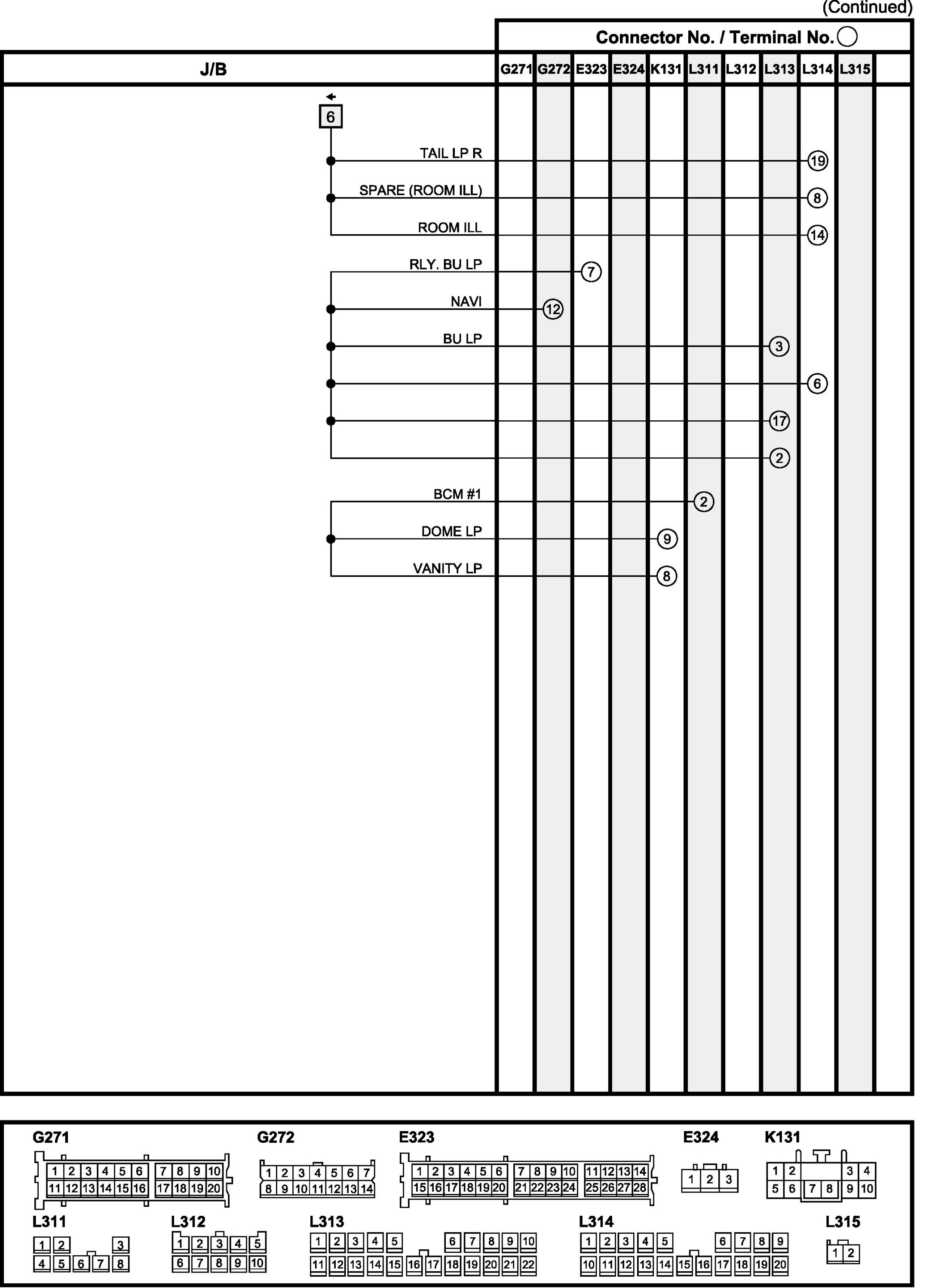

Junction Block Inner Circuit (Detail) Diagram 5:
Junction Block Inner Circuit (Detail) Diagram 6:
