CVT Control System Circuit Diagram

CVT Control System Circuit Diagram

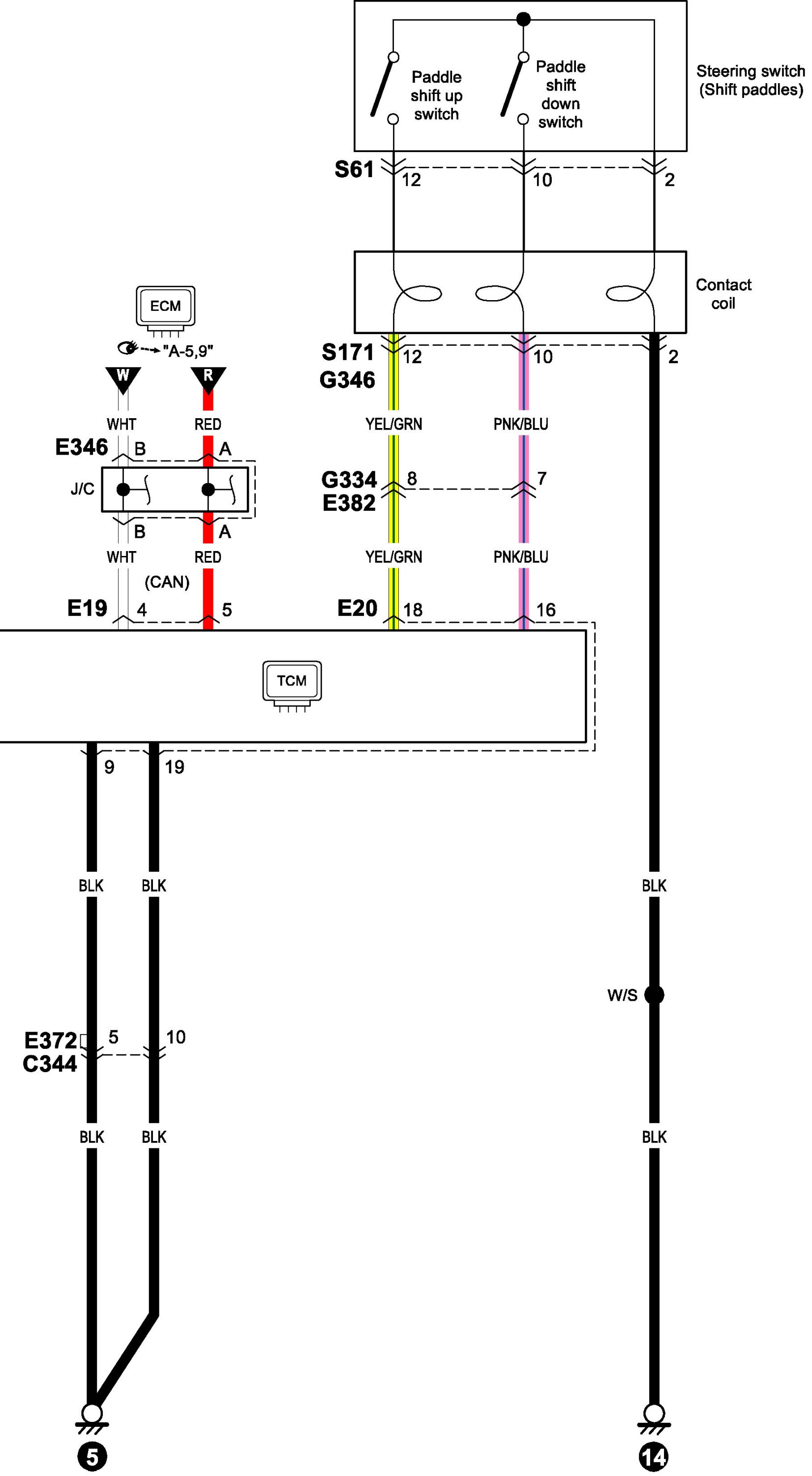

CVT Control System Circuit Diagram 1:

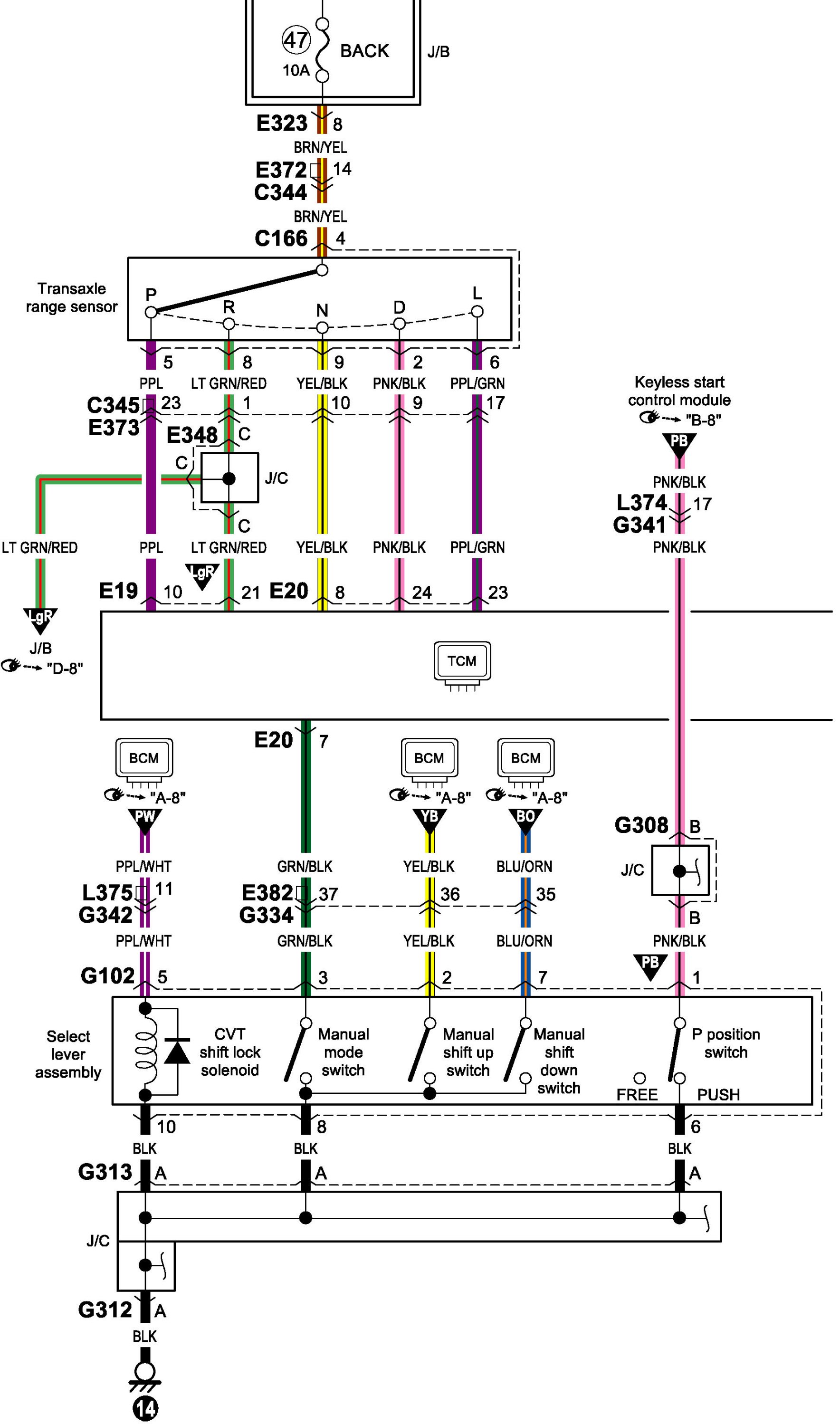

CVT Control System Circuit Diagram 2:

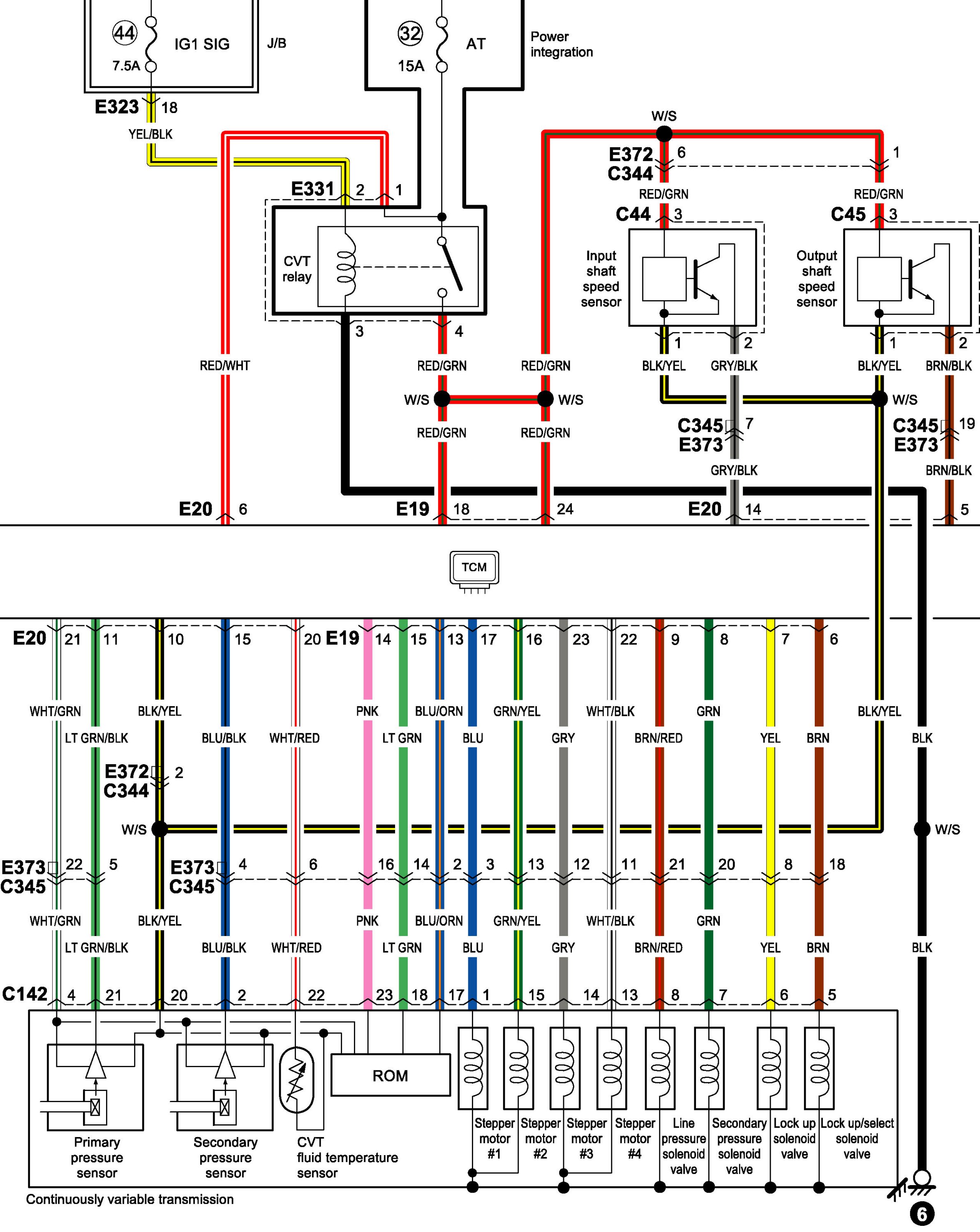

CVT Control System Circuit Diagram 3:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
