L Connectors

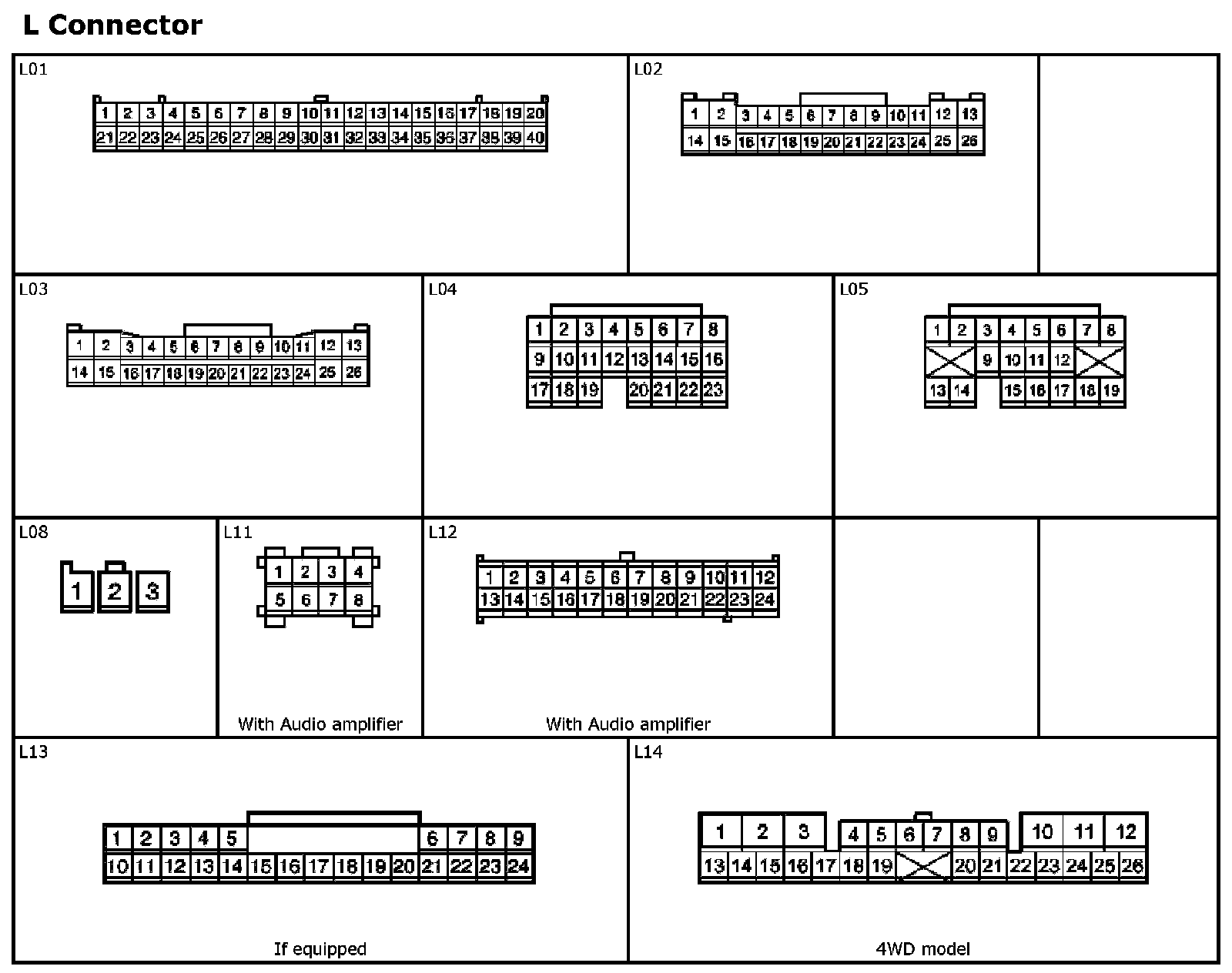

L Connector
L01 - L14:
L17 - L163:
L164 - L294:
L299 - L346:
L347 - L379:
L380 - L394:

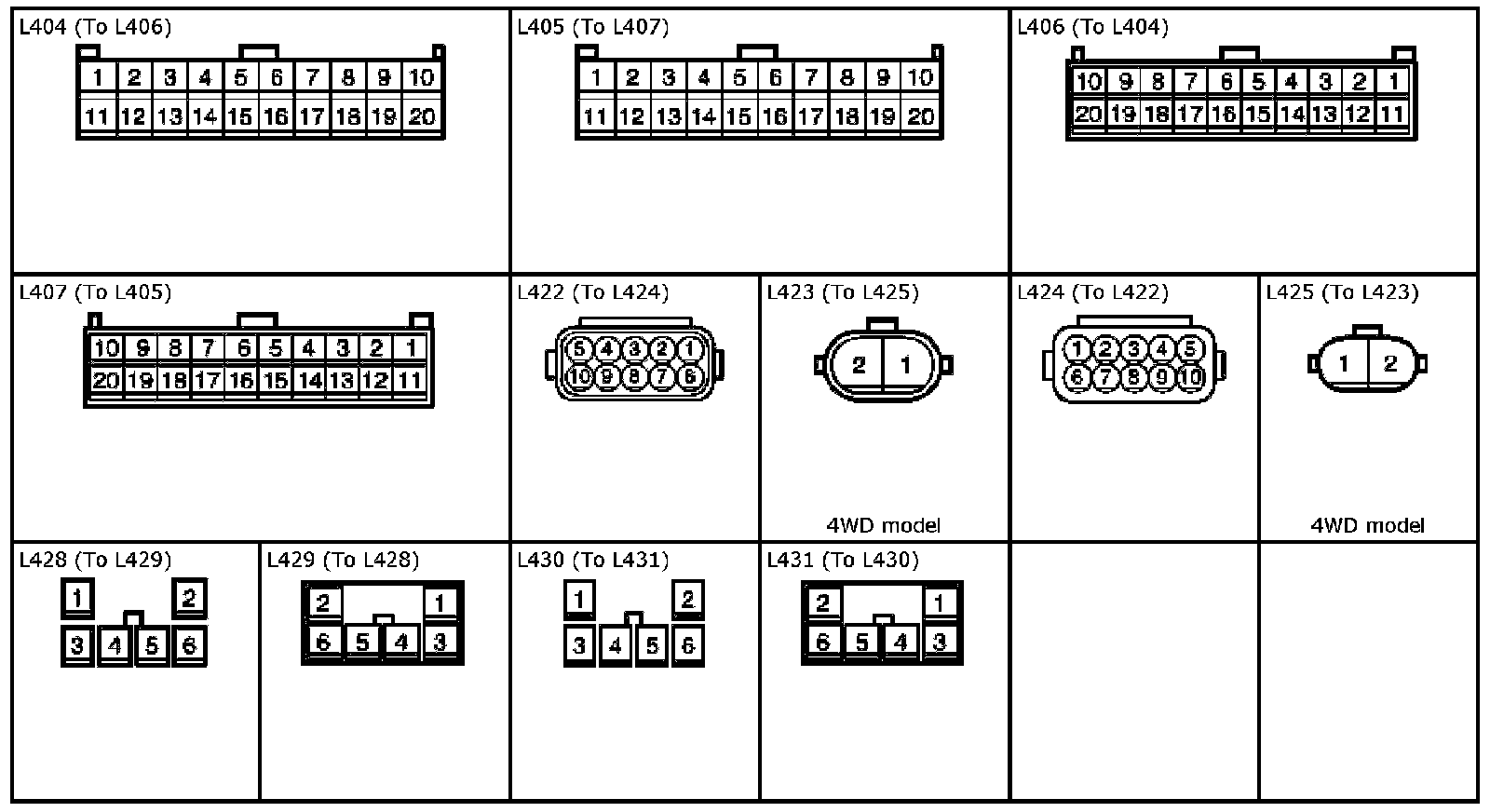

L404 - L431:
