Brake Booster Inspection

Brake Booster Inspection
^ Check brake booster for damage.
^ Check brake booster for operation referring to "Operation Check" under Brake Booster Function Inspection.
^ Check boot for damage and deterioration.
^ Check push rod length.
If any fault is found, replace brake booster.

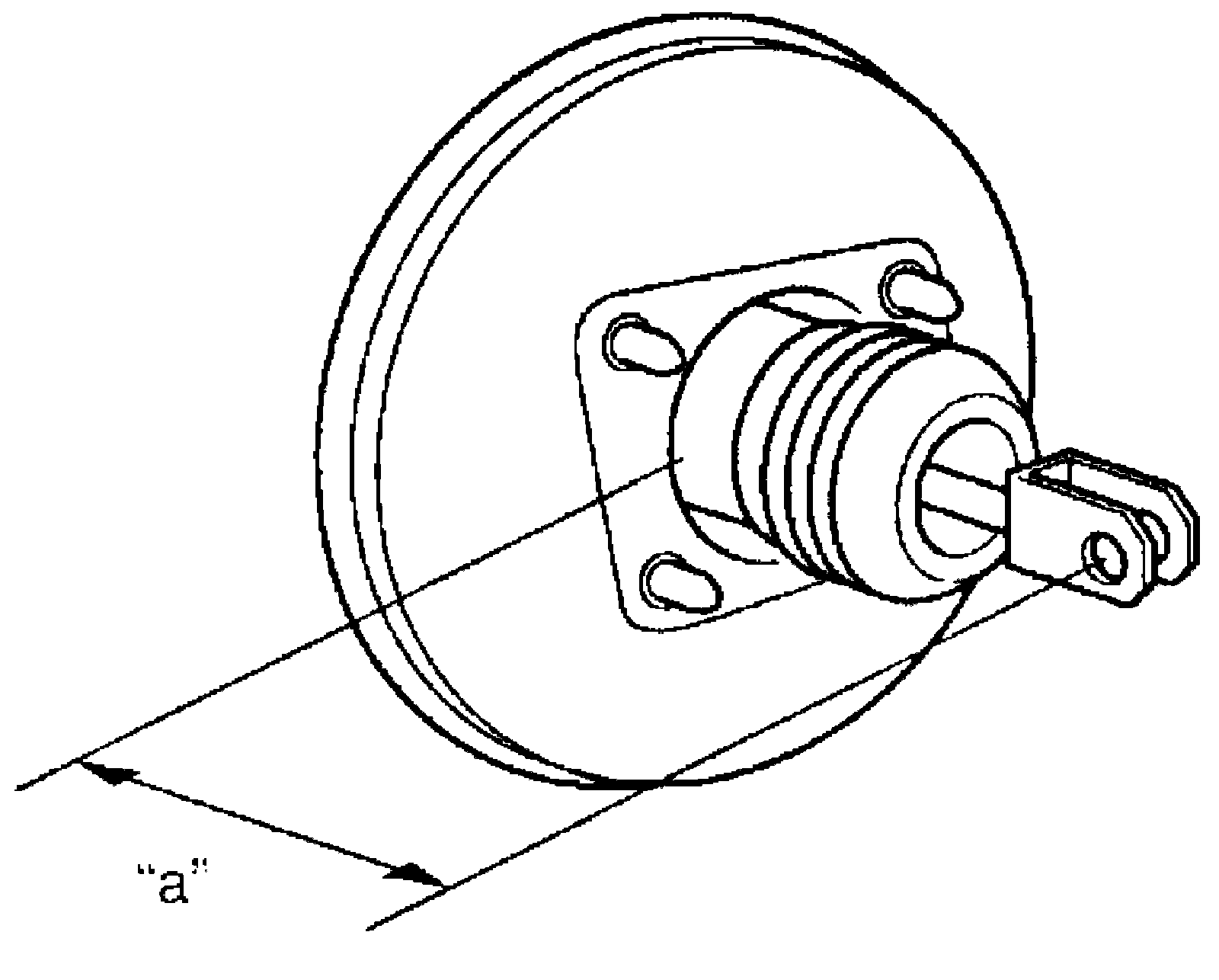

Push rod length
"a": 129 - 130 mm (5.08 - 5.12 in.)
