Rear Brake Disc Inspection
Rear Brake Disc InspectionReference: Rear Brake Disc Removal and Installation

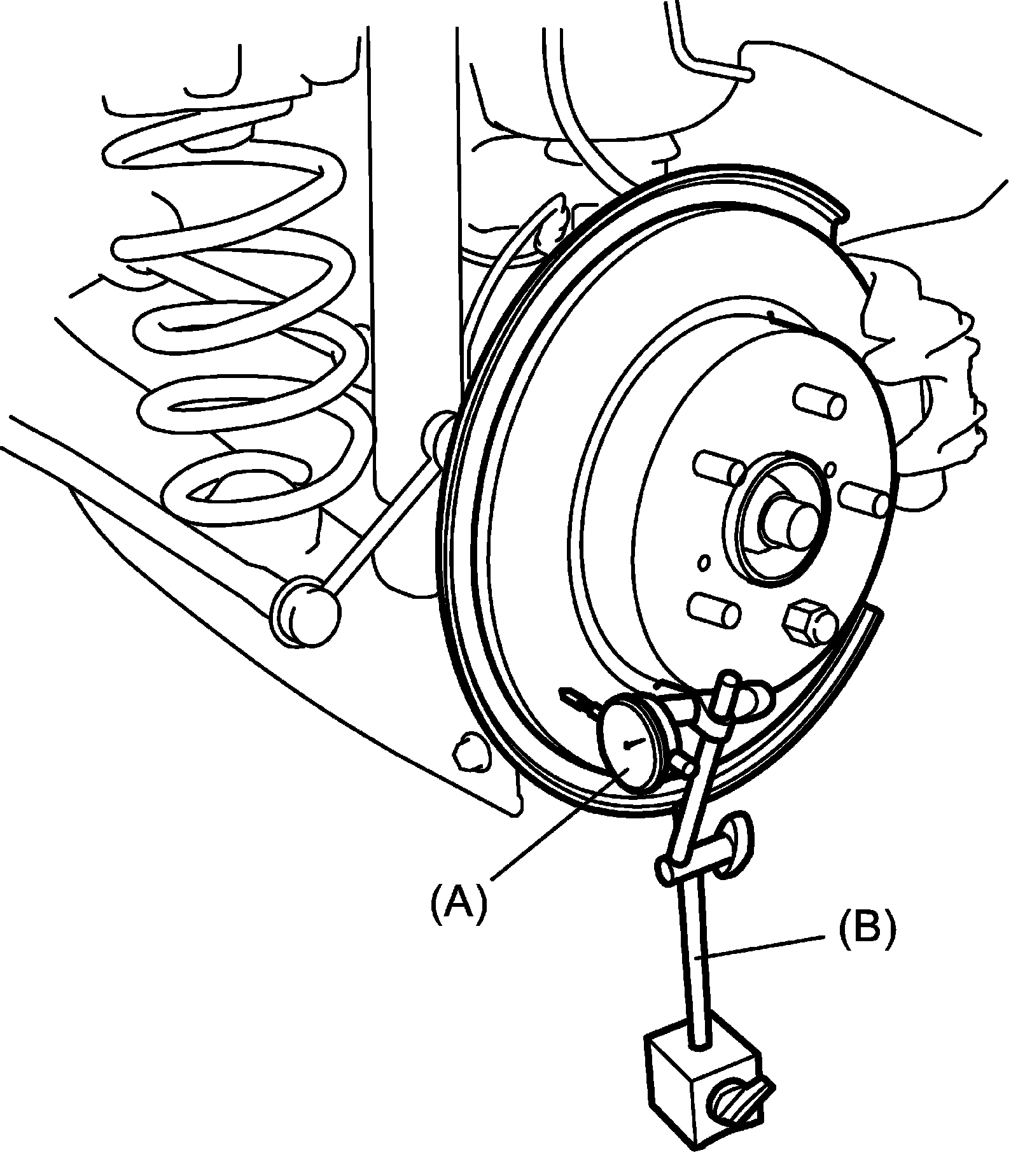

Measure deflection of rear brake disc at the point 10 mm inside from its edge using special tools and repair or replace the disc if defective.
Rear rear brake disc deflection
Limit: 0.10 mm (0.004 in.)
Special Tool
(A): 09900-20607
(A): 09900-20701

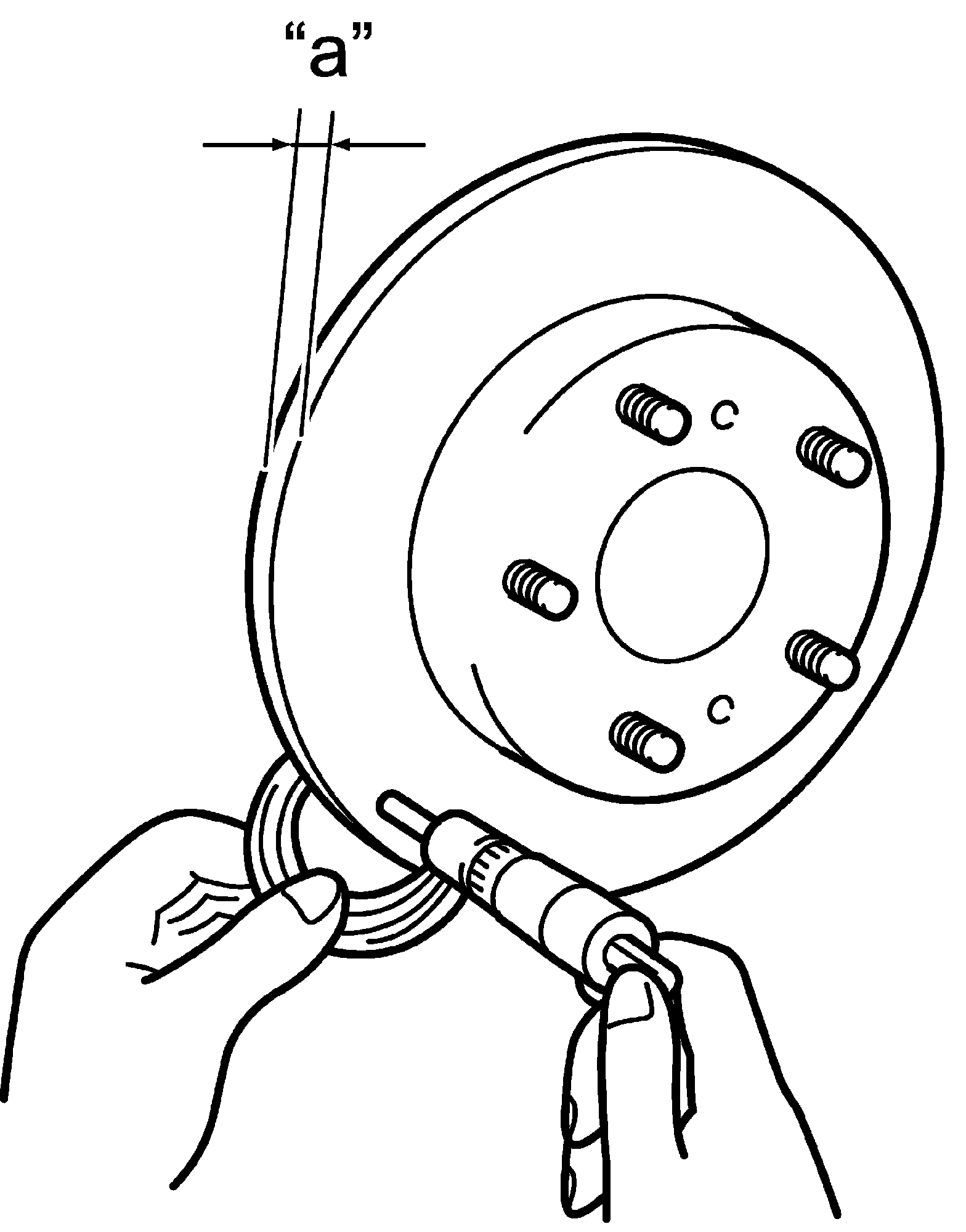

Measure thickness of rear brake disc with micrometer. If thickness is less than limit, replace the disc.
Rear rear brake disc thickness "a"
Standard: 12 mm (0.47 in.)
Limit: 11 mm (0.43 in.)
