Front Wheel Speed Sensor Removal and Installation

Front Wheel Speed Sensor Removal and Installation
Reference: Front and Rear Wheel Speed Sensor On-Vehicle Inspection

CAUTION:
Do not pull or twist wire harness strongly when removing or installing wheel speed sensor.

Removal
1) Disconnect negative (-) cable at battery.
2) Hoist vehicle a little and remove wheel.

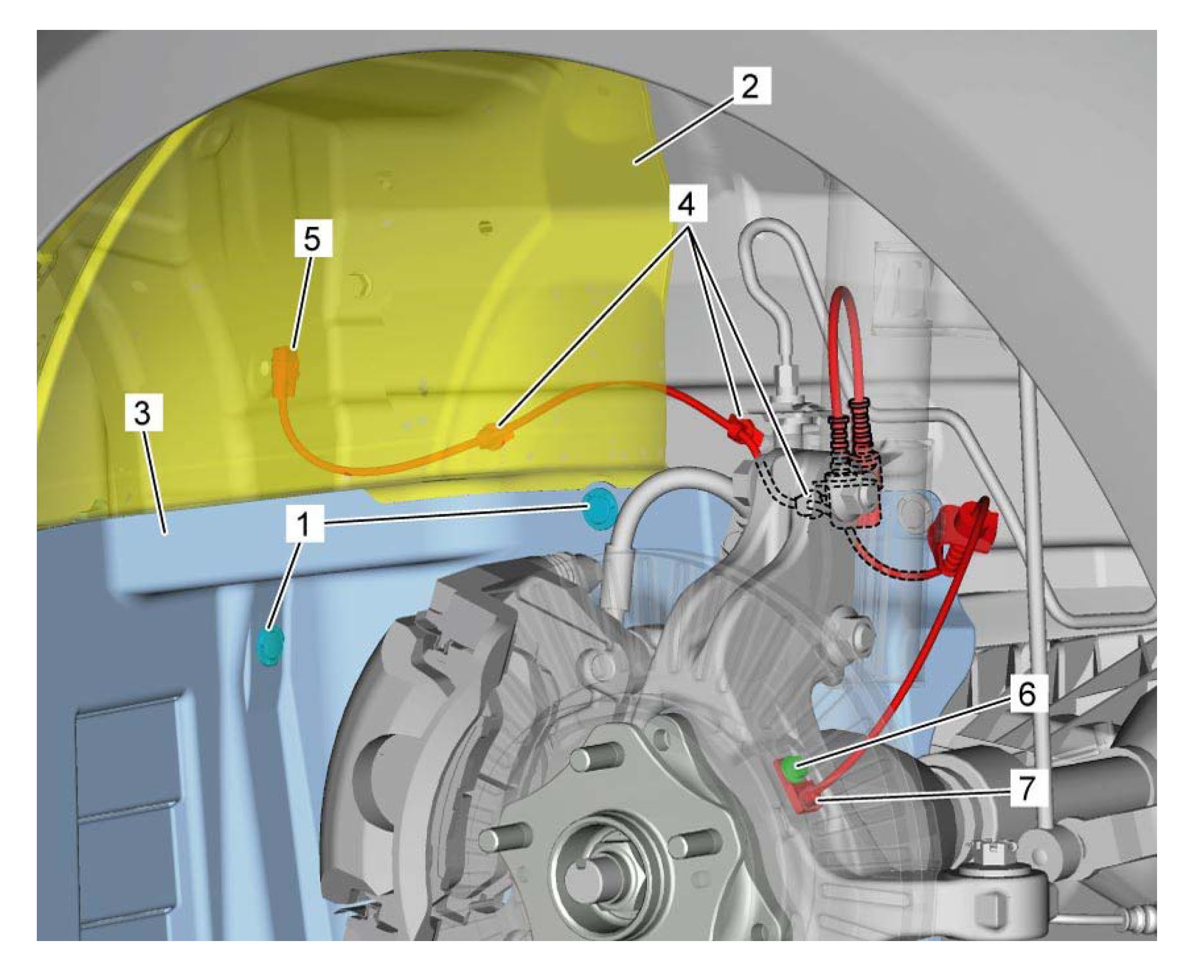

3) Remove clips (1) and separate front fender lower lining (3) from front fender lining (2).
4) Remove clips (4) and disconnect front wheel speed sensor connector (5).
5) Remove front wheel speed sensor bolt (6).
6) Remove front wheel speed sensor (7) from steering knuckle.





Installation
Reference: Front and Rear Wheel Speed Sensor Inspection
Reverse removal procedure, noting the following points.
^ Check detective area of wheel speed sensor (1) is not covered with iron powder.
^ Tighten wheel sensor bolt (2) to specified torque.
Tightening torque
Front wheel speed sensor bolt (a): 11 Nm (110 kg-m, 8.5 lbf-ft)
^ Confirm that there is no space between front wheel speed sensor and steering knuckle (3).








^ Install wheel.
