Rear Bolster Removal and Installation

Rear Bolster Removal And Installation

Removal

1. Remove rear seat cushion.

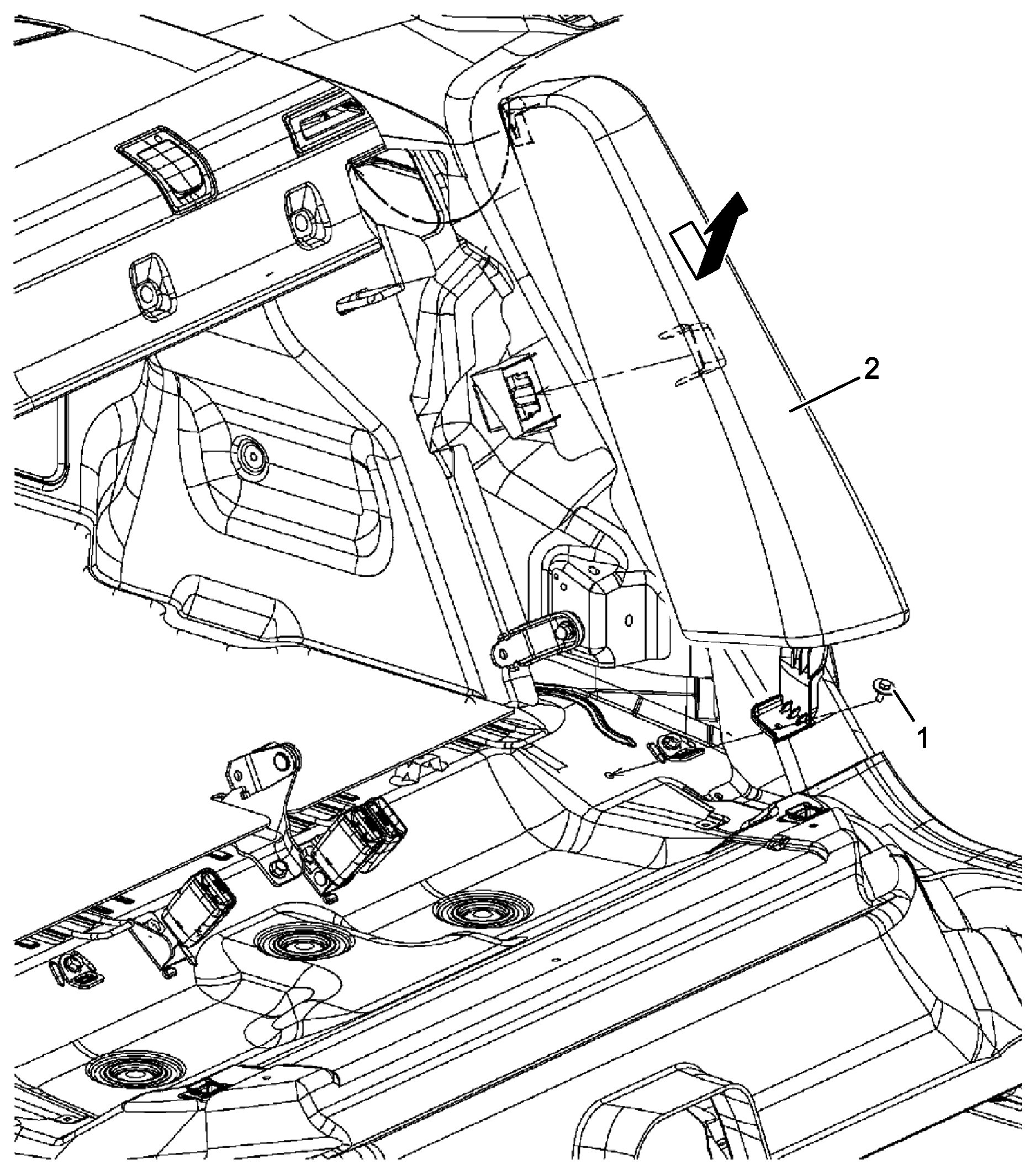

2. Remove rear bolster retaining bolt (1) and remove rear bolster (2) in arrow direction.







Installation

Reverse removal procedure noting the following point.
- Tighten rear bolster retaining bolt to specified torque.

Tightening torque
Rear bolster retaining bolt: 5.5 N.m (0.56 kg-m, 4.0 lbf-ft)
