Component Tests and General Diagnostics

Seat Actuator Inspection (If Equipped)

Driver Seat (Except Lumbar Support)

1. Disconnect seat actuator connector from power seat control module (driver seat).

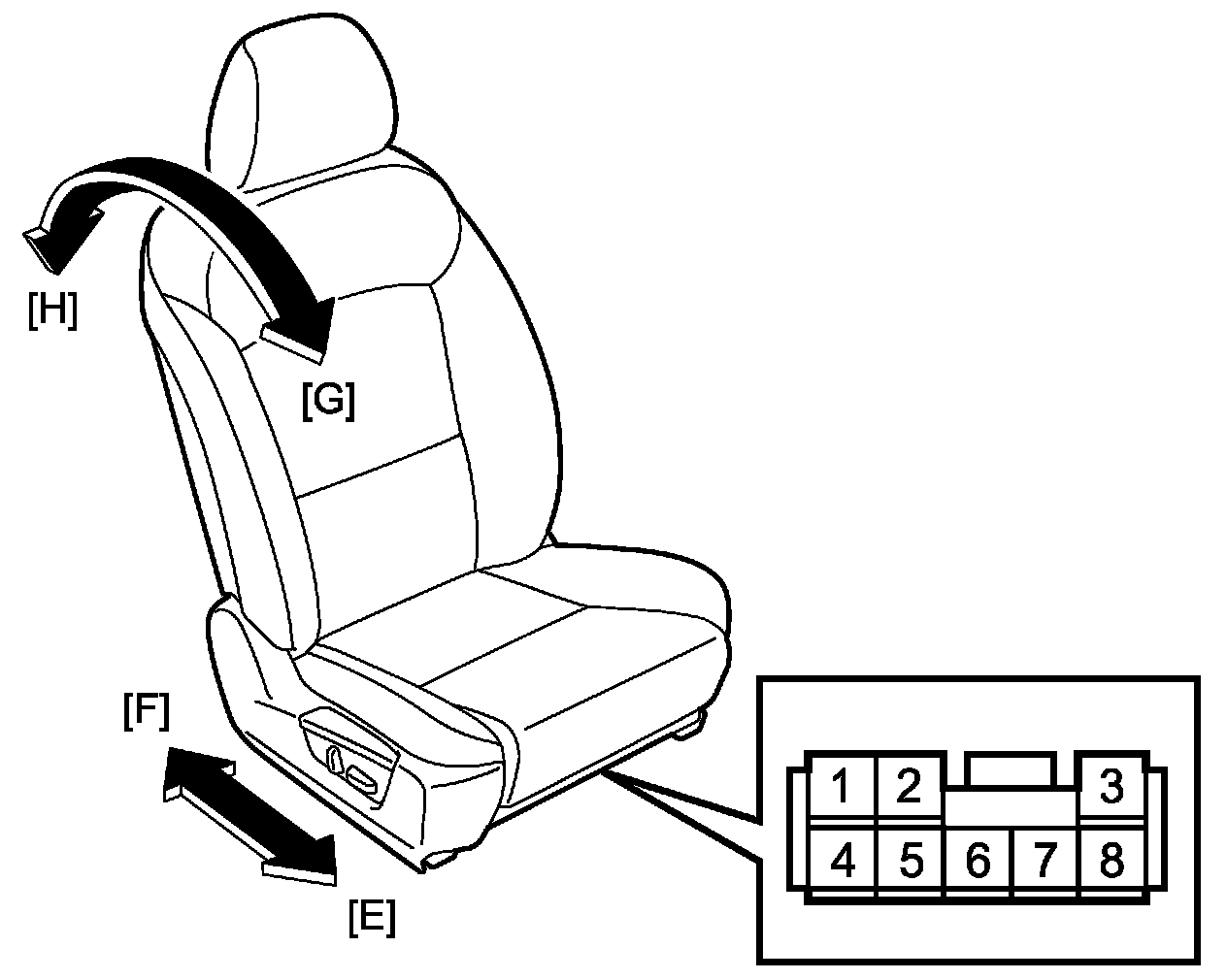

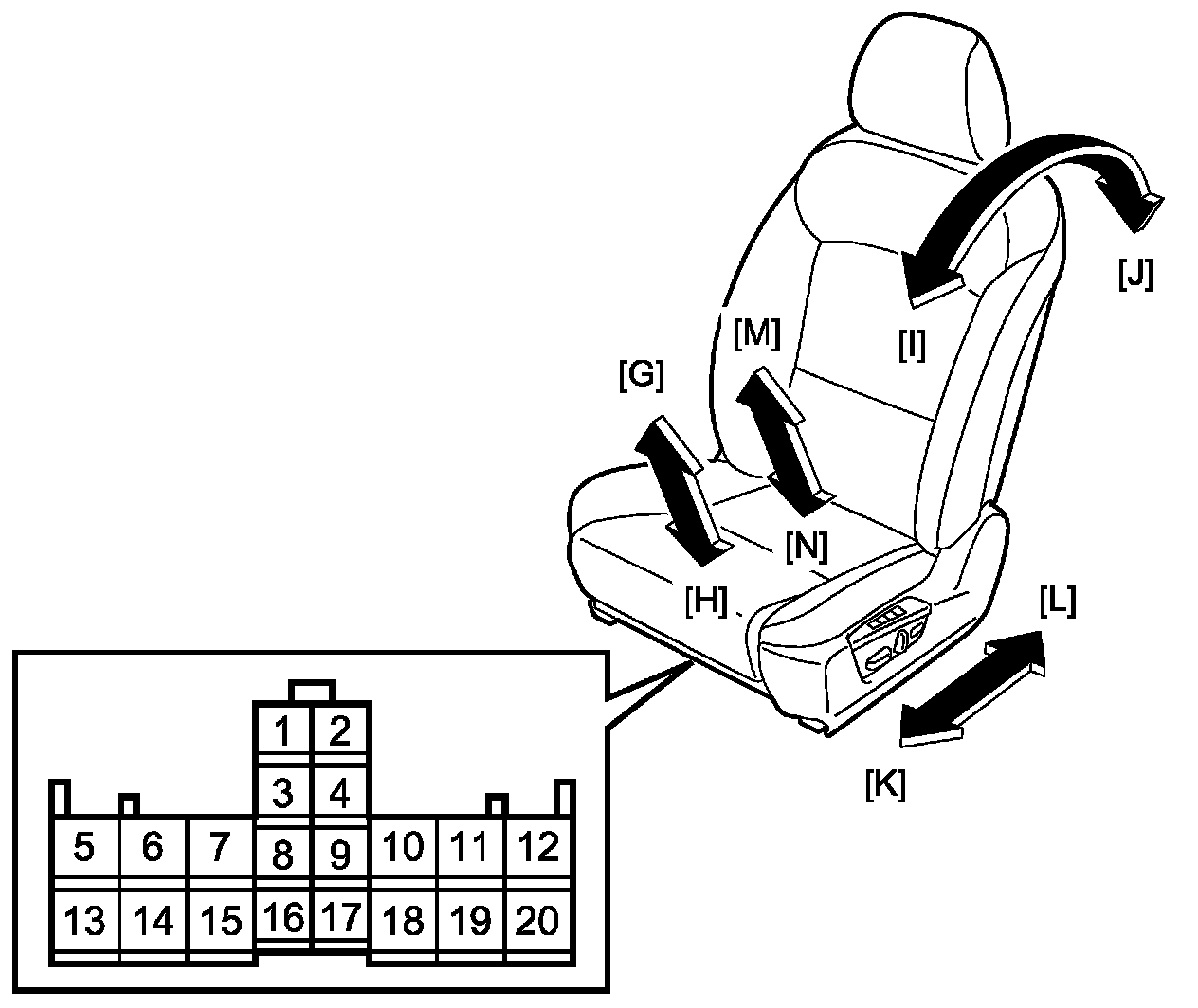

2. Check operation of seat when battery positive (+) and negative (-) terminals are connected to terminals of seat actuator connector as indicated in the following table. If any defect is found, replace front cushion frame assembly or front seatback frame assembly.
3. Initialize seat position memory.










Driver Seat (Lumbar Support)

1. Disconnect seat actuator connector from lumbar support switch.
2. Check operation of seat when battery positive (+) and negative (-) terminals are connected to terminals of seat actuator connector as indicated in the following table. If any defect is found, replace front seatback frame assembly.
3. Initialize seat position memory.










Passenger Seat

1. Disconnect seat actuator connector from power seat switch.
2. Check operation of seat when battery positive (+) and negative (-) terminals are connected to terminals of seat actuator connector as indicated in the following table. If any defect is found, replace front seatback frame assembly.
