Power Door Mirror Removal and Installation

Power Door Mirror Removal And Installation Removal

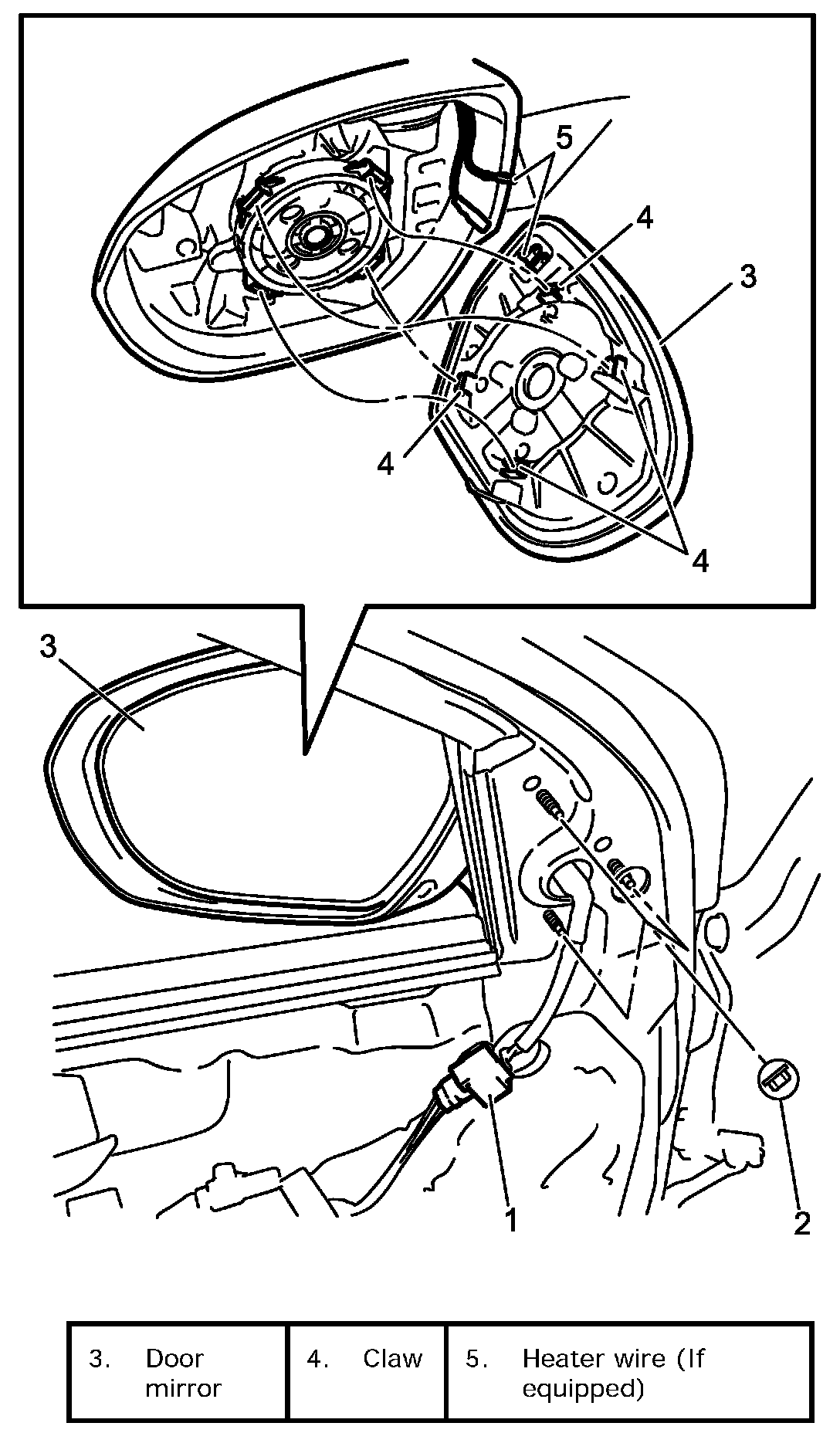

Removal

1. Remove front door trim.
2. Disconnect power door mirror connector (1).
3. Remove door mirror nuts (2) and remove door mirror (3).

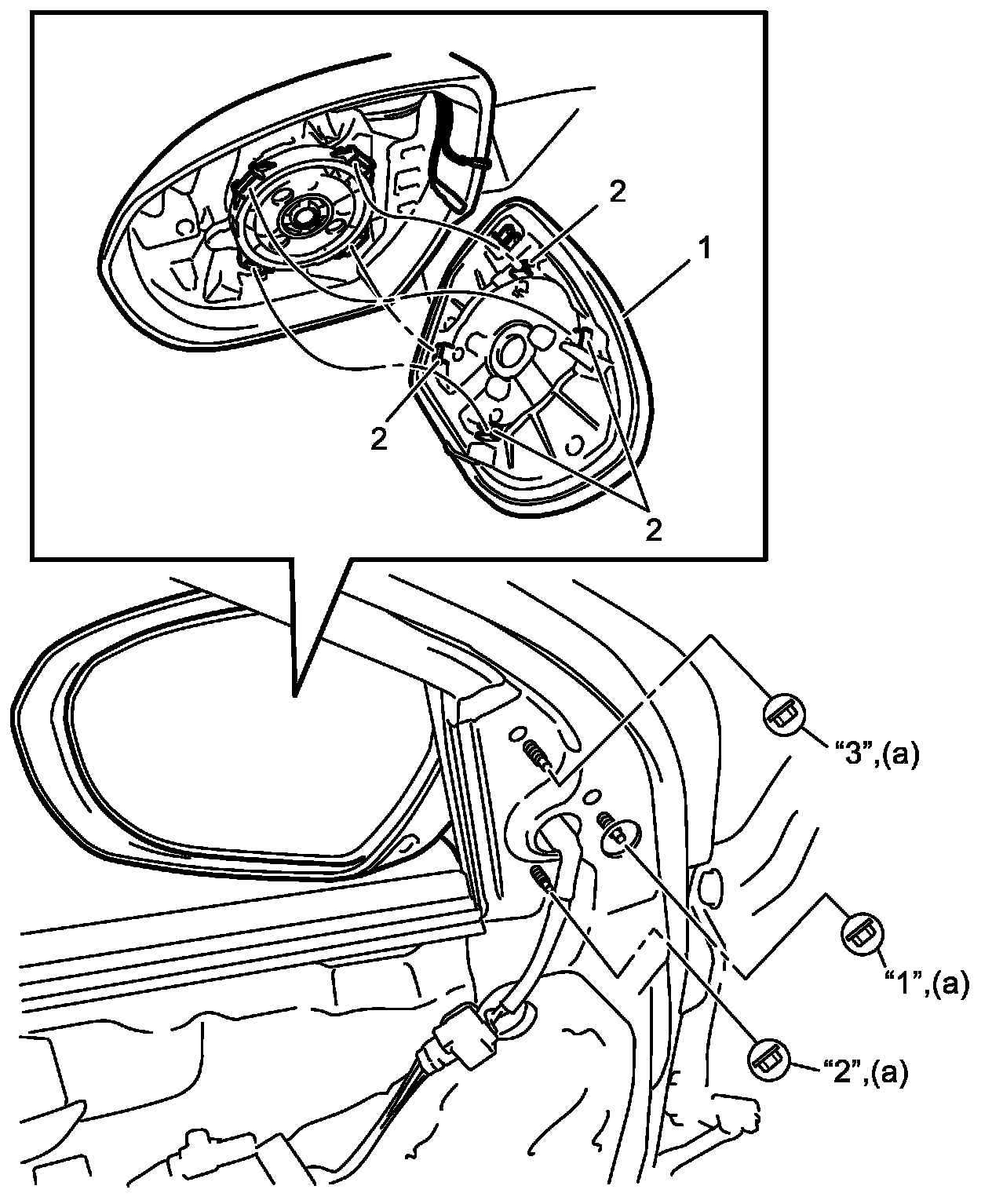

Installation

Reverse removal procedure noting the following points.
- Insert claws (2) securely when installing mirror (1).
- Check operation of door mirror after installation.
- Tighten door mirror nuts in order ("1" to "3") to specified torque.

Tightening torque
Door mirror nut (a): 11 N.m (1.1 kg-m, 8.5 lbf-ft)
