Headliner: Service and Repair

Roof Lining Removal And Installation

Removal

1. Disable air bag system.

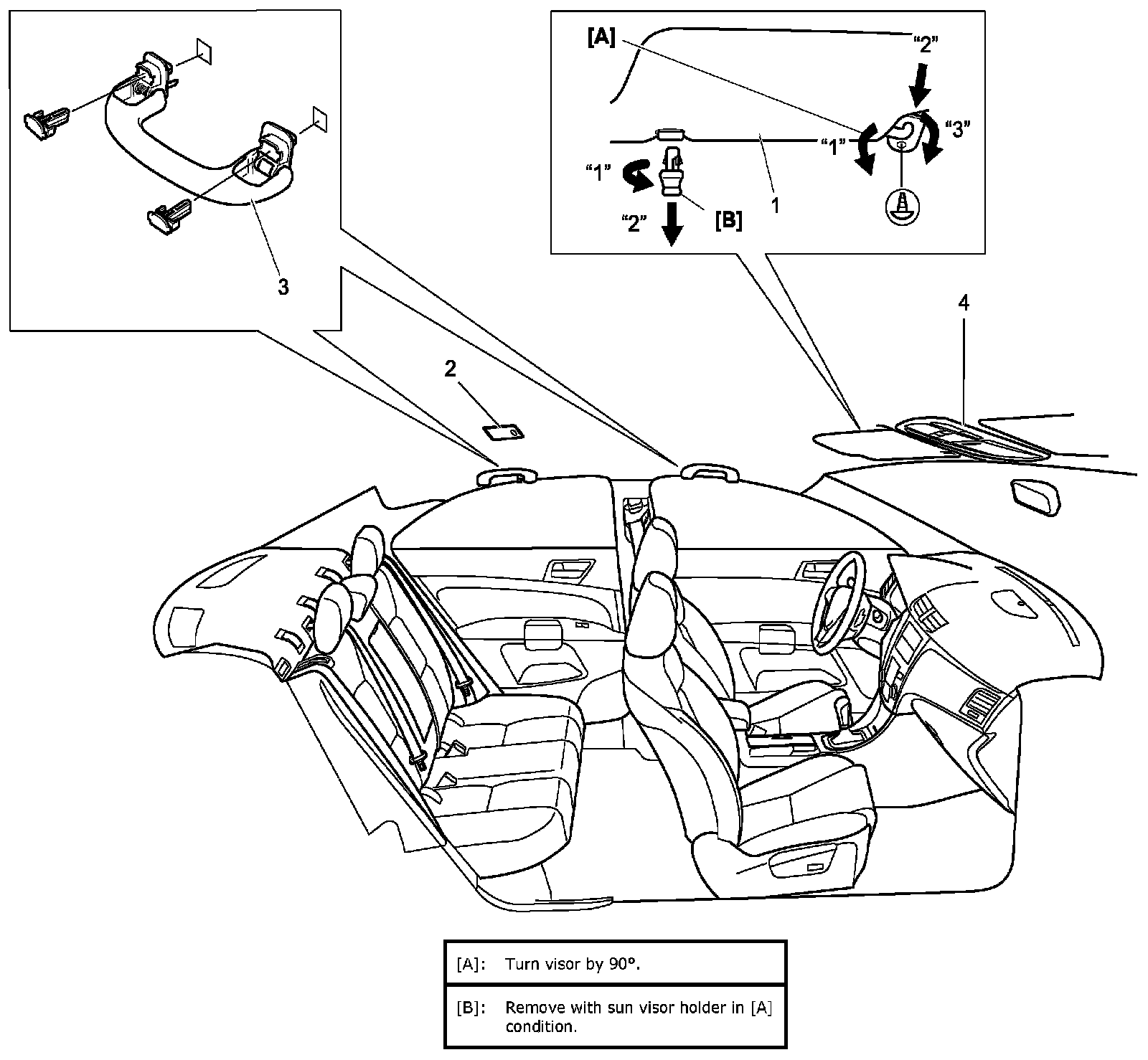

2. Remove sun visors (1) and disconnect vanity mirror light connectors.
3. Remove overhead console box (4) and rear dome light (2).
4. Remove front pillar trims, center pillar upper trims/lower trims and rear pillar inner trims.
5. Remove assist grips (3).

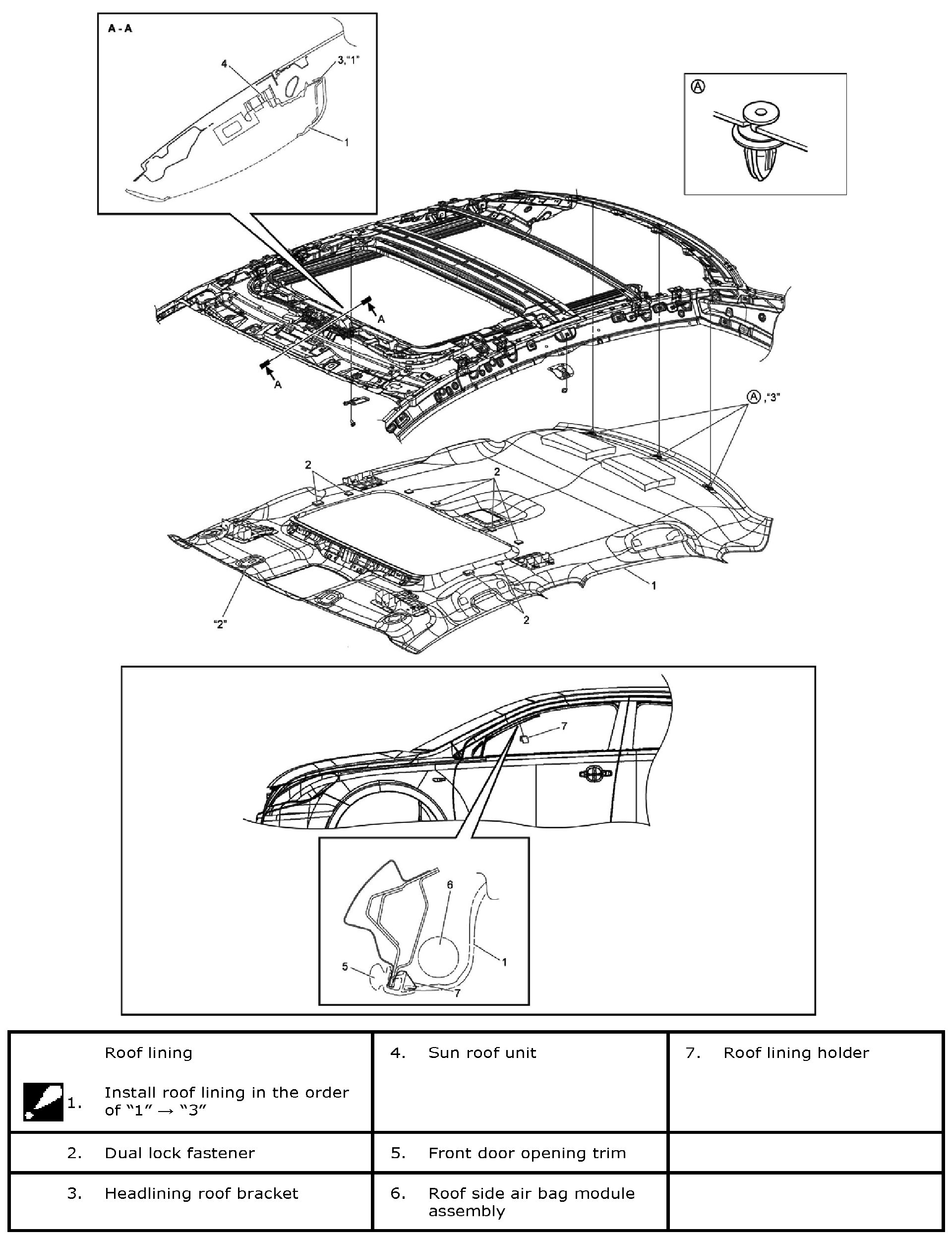

6. Remove roof lining.







7. Remove windshield if necessary.

Installation

Reverse removal procedure noting the following point.
- Enable air bag system.
