Rear Suspension Frame Inspection

Rear Suspension Frame Inspection

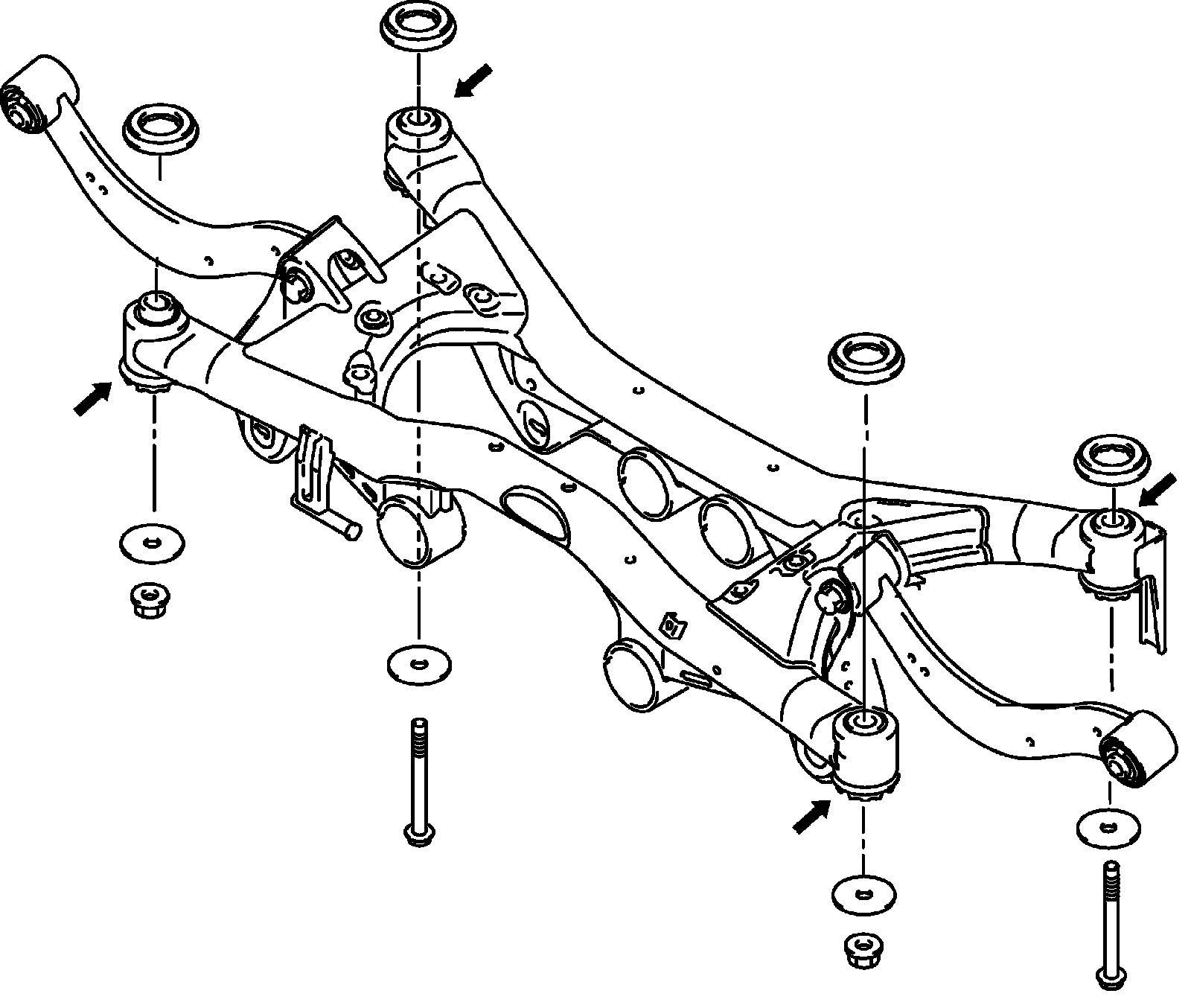

^ Check rear suspension frame bushings for cracks and deformation. Replace rear suspension frame if any of bushings is defective.
^ Check rear suspension frame for cracks, deformation and other damage. Replace rear suspension frame if any defect is found.
