Trunk Lid Opener Switch Inspection

Trunk Lid Opener Switch Inspection

1. Remove trunk lid opener switch.

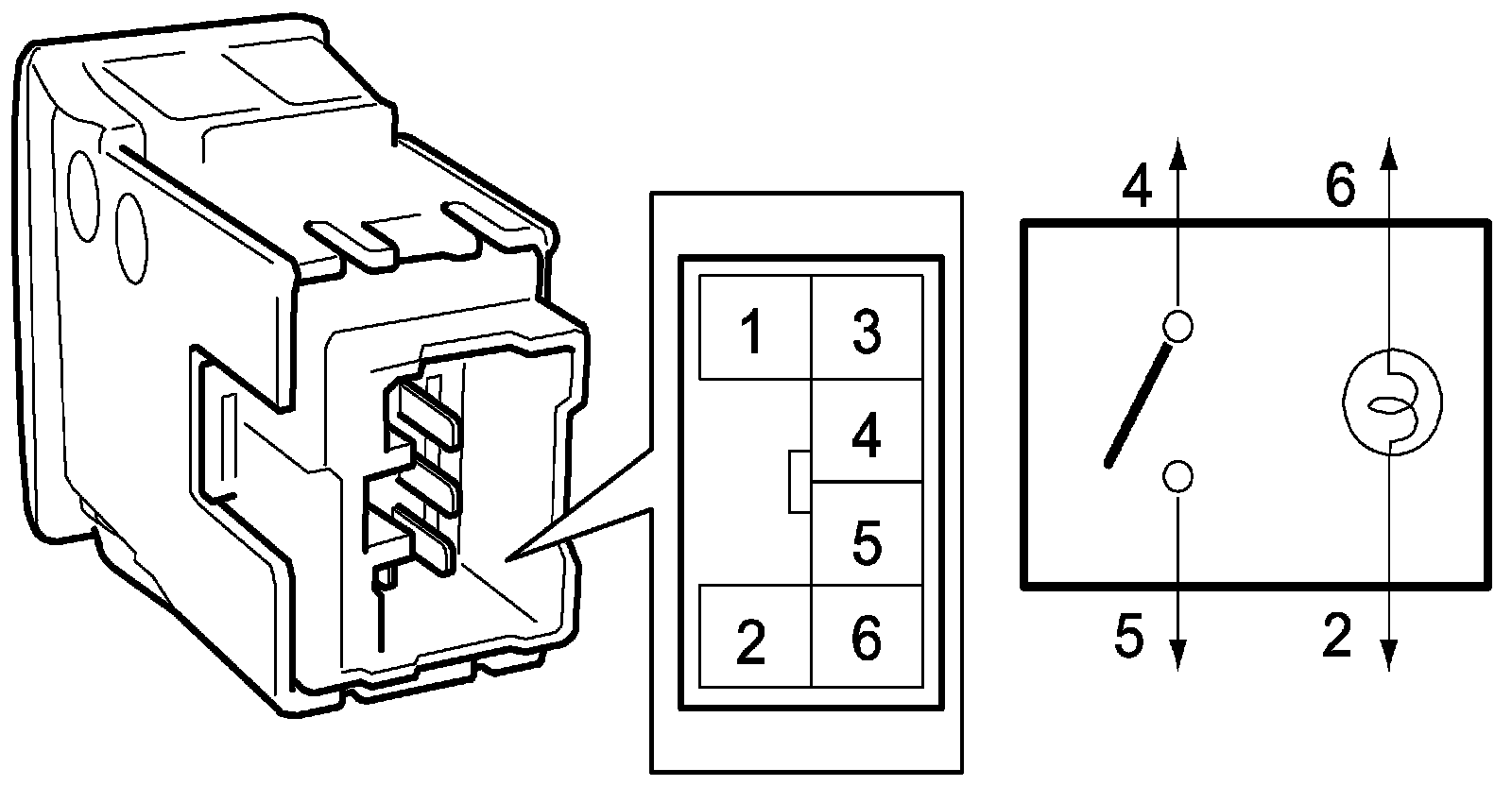

2. Check continuity between terminals of trunk lid opener switch connector at each switch position.

If check result is not as specified, replace switch.

Trunk lid opener switch continuity
