Trunk Lid Opener Cancel Switch Inspection

Trunk Lid Opener Cancel Switch Inspection

1. Remove trunk lid opener cancel switch.
2. Check continuity between terminals at each switch position. If check result is not as specified, replace switch.

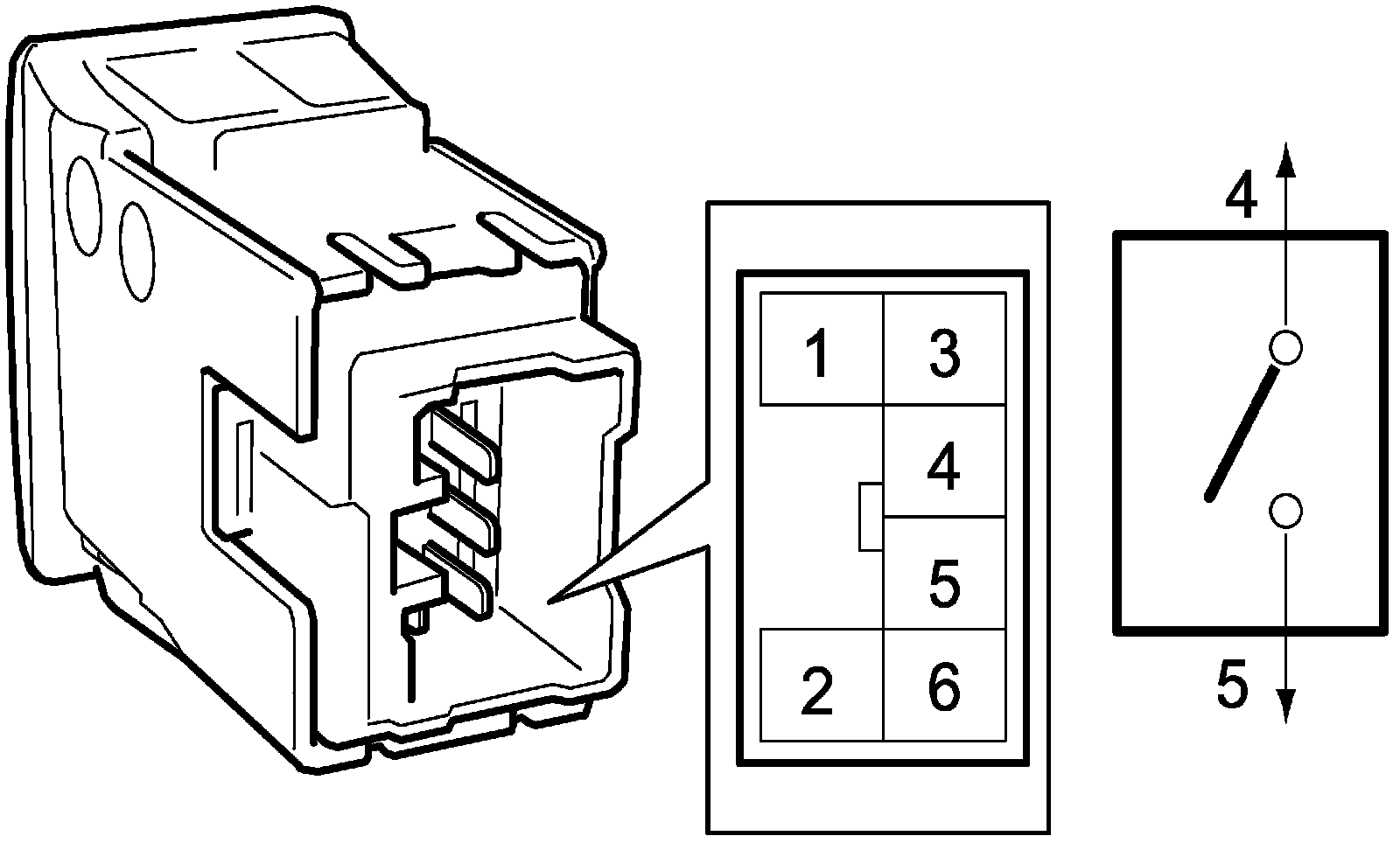

Trunk lid opener cancel switch continuity
