Request Switch Inspection

Request Switch Inspection

1. Remove trim.
- Front door
- Trunk lid

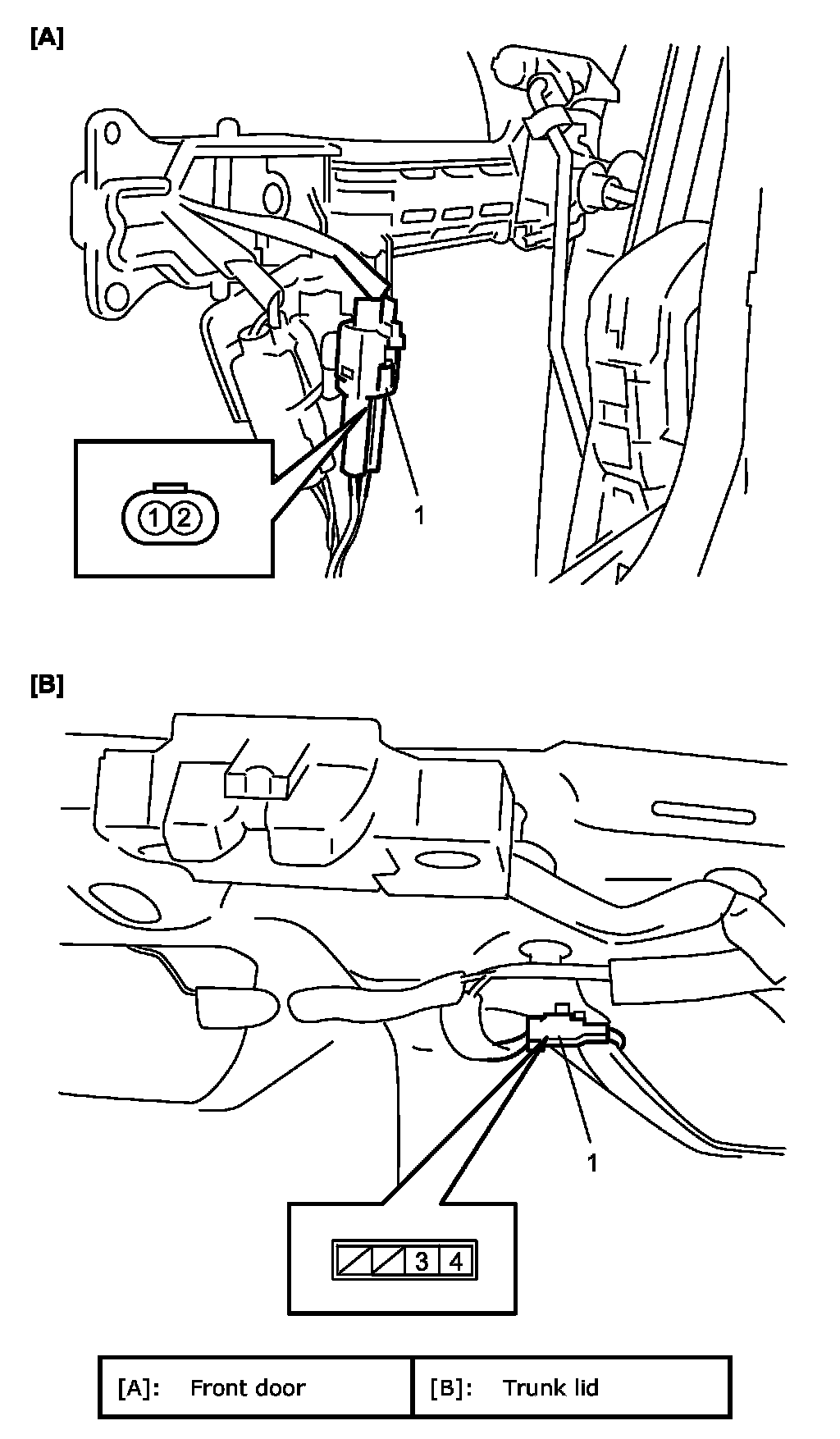

2. Disconnect request switch connector (1).
3. Check request switch for continuity between terminals at each switch position. If check result is not as specified, replace request switch.
