Trunk Lid Request Switch Removal And Installation

Trunk Lid Request Switch Removal and Installation

Removal
1. Disconnect negative (-) cable at battery.
2. Remove trunk lid trim.

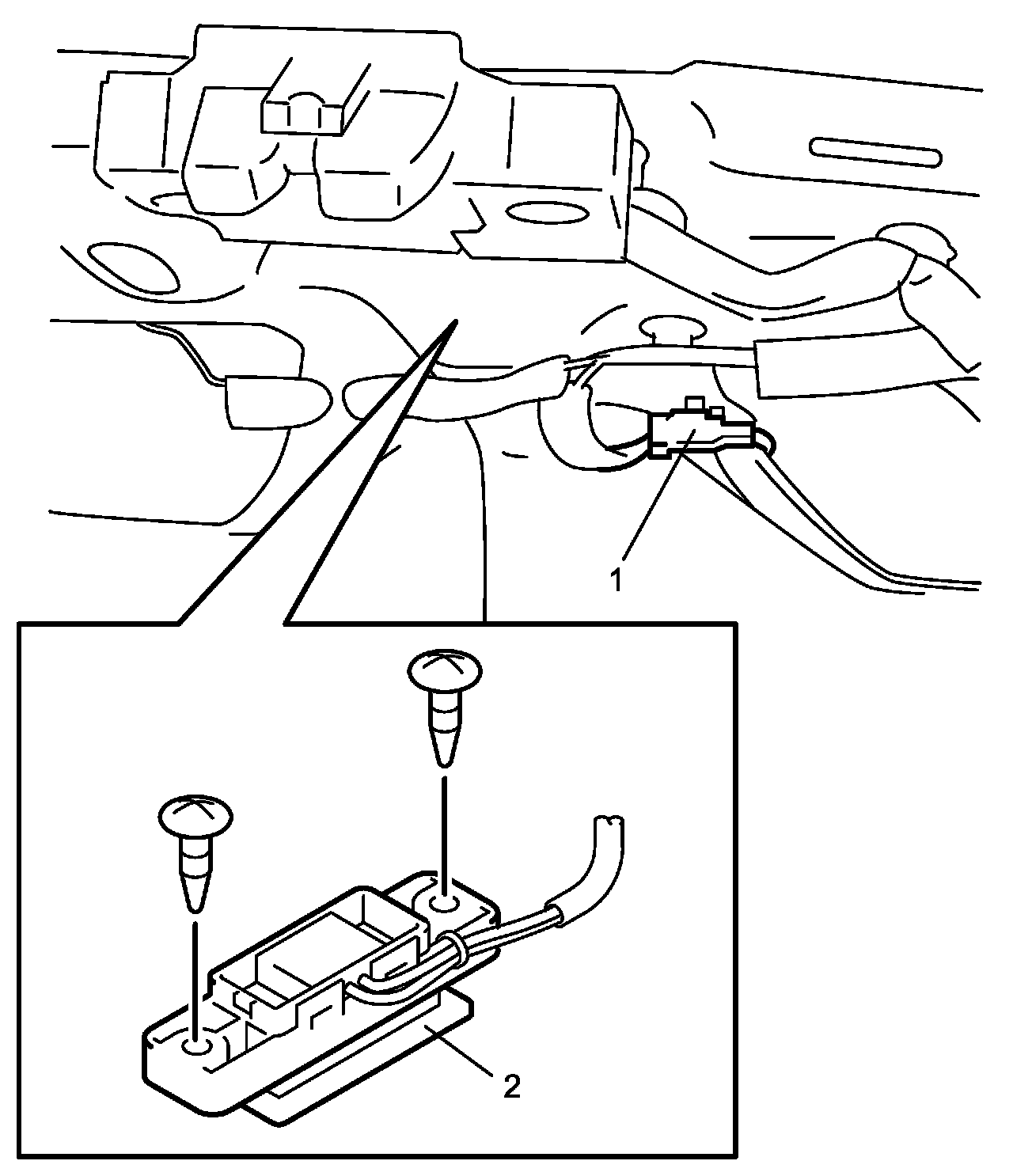

3. Disconnect trunk lid request switch connector (1) and clip.
4. Remove screws, and then remove trunk lid request switch (2).







Installation
Reverse removal procedure.
