Trunk Lid Opener Cancel Switch Removal and Installation

Trunk Lid Opener Cancel Switch Removal And Installation

Removal

1. Open grove box.

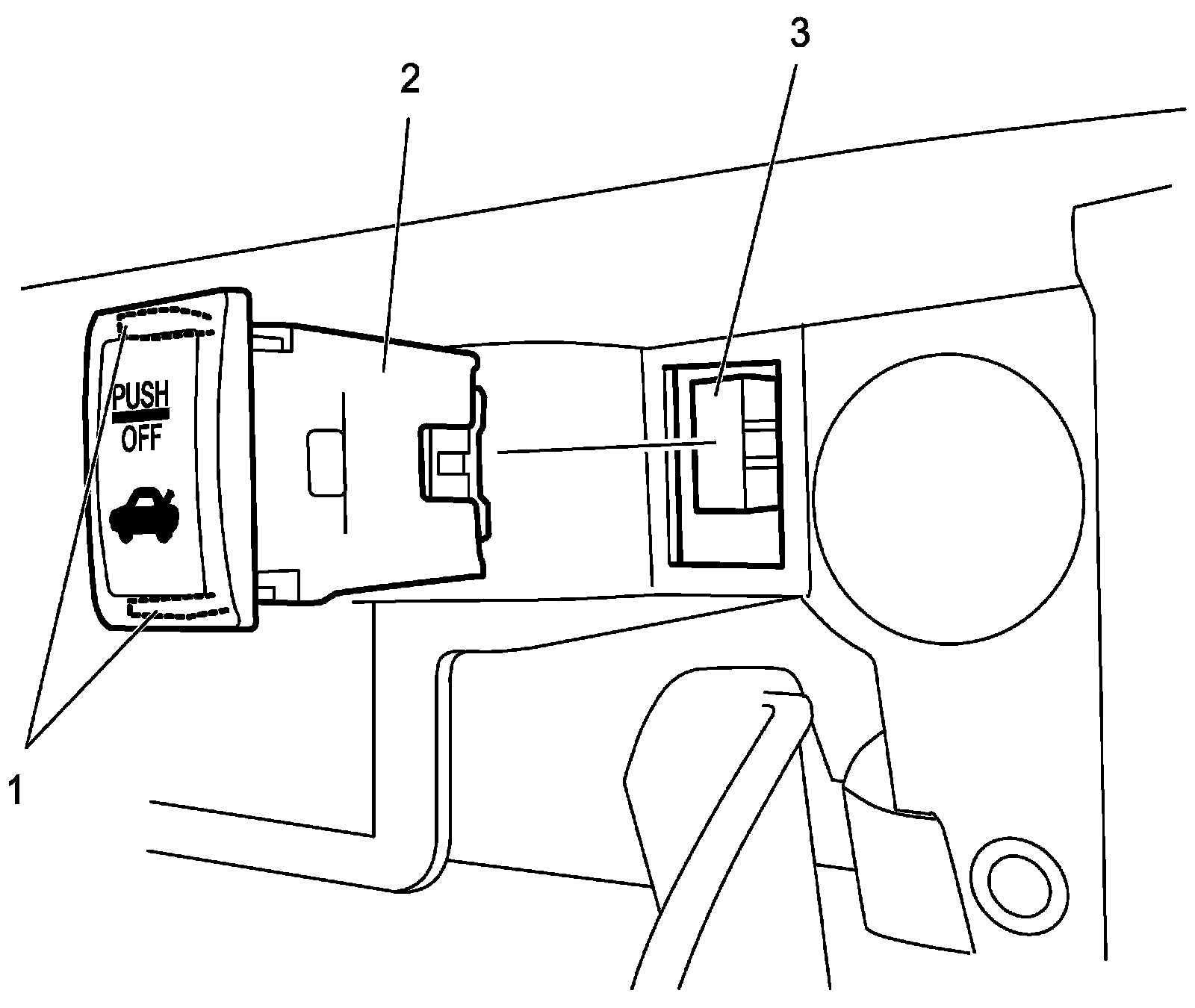

2. Retract claws (1) and remove trunk lid opener cancel switch (2).
3. Disconnect trunk lid opener cancel switch connector (3).







Installation

Reverse removal procedure.
