Cowl Moulding / Trim: Service and Repair

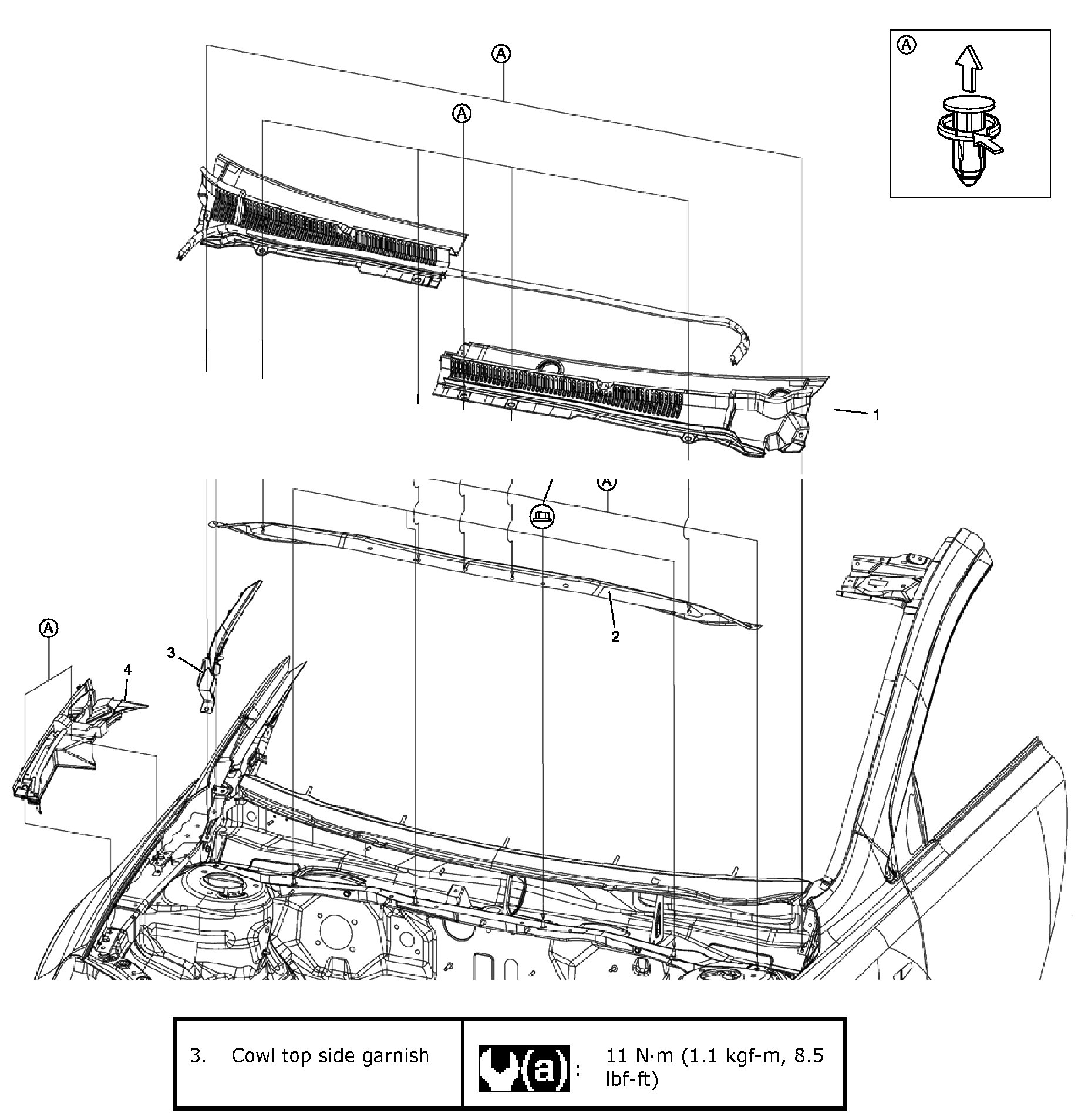

Front Fender Cover / Cowl Top Garnish Removal And Installation

Removal

1. Remove hood rear No. 1 seal (5).
2. Remove wiper arms.
3. Remove clips and remove front fender cover (4).
4. Remove clips and remove cowl top garnishes (1).
5. Remove nuts and remove cowl front panel (2).







Installation

Reverse removal procedure.
