Front Bumper: Service and Repair

Front Bumper Removal And Installation

Removal

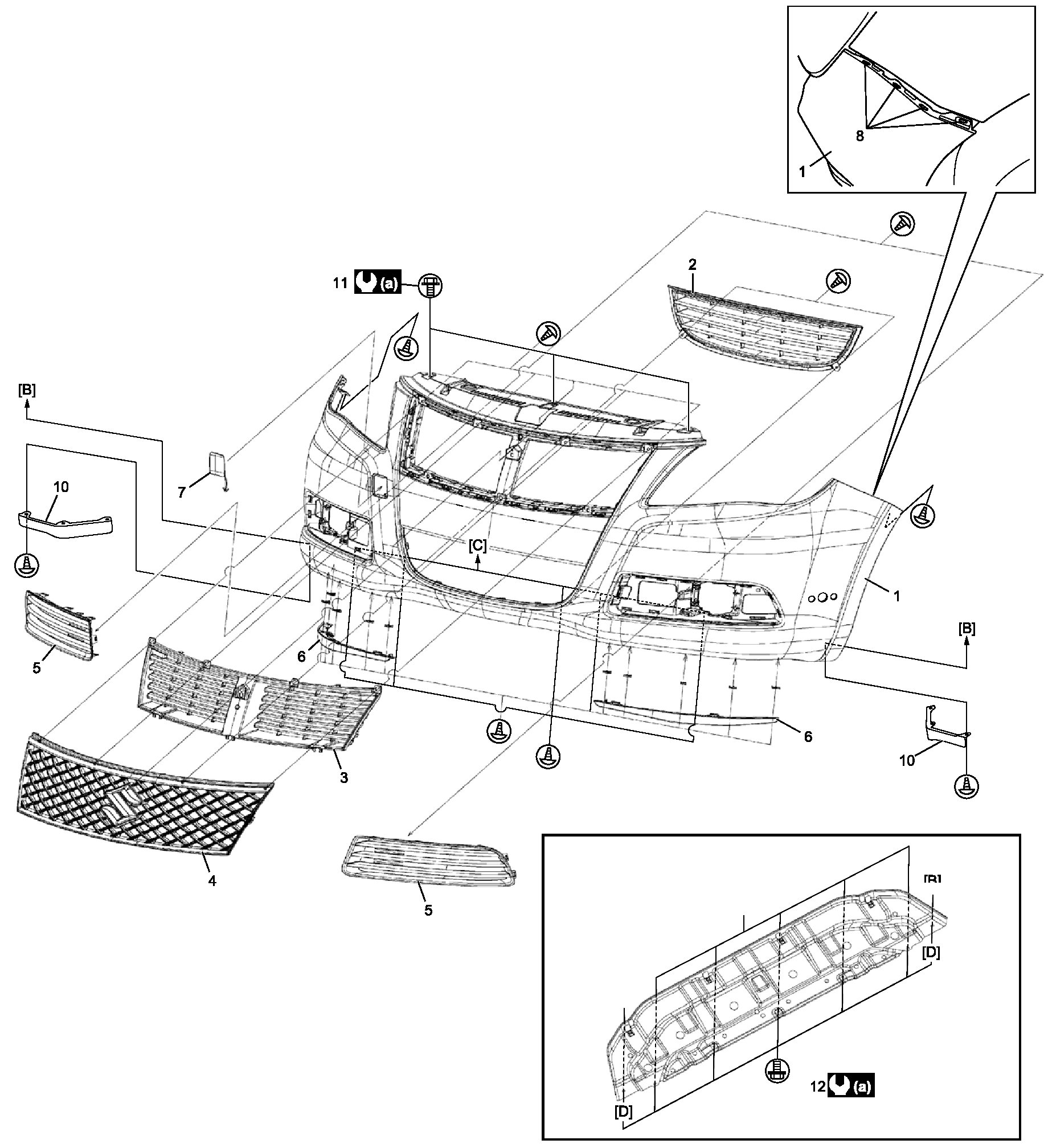

Remove parts referring to figure.










Installation

Reverse removal procedure noting the following point.
- Tighten front bumper upper bolts and front bumper lower cover bolts to specified torque.

Tightening torque
Front bumper upper bolt: 5.5 N.m (0.56 kg-m, 4.0 lbf-ft)
Front bumper lower cover bolt: 5.5 N.m (0.56 kg-m, 4.0 lbf-ft)
