Scan Tool Testing and Procedures

Scan Tool Data (If Equipped)

Combination Meter

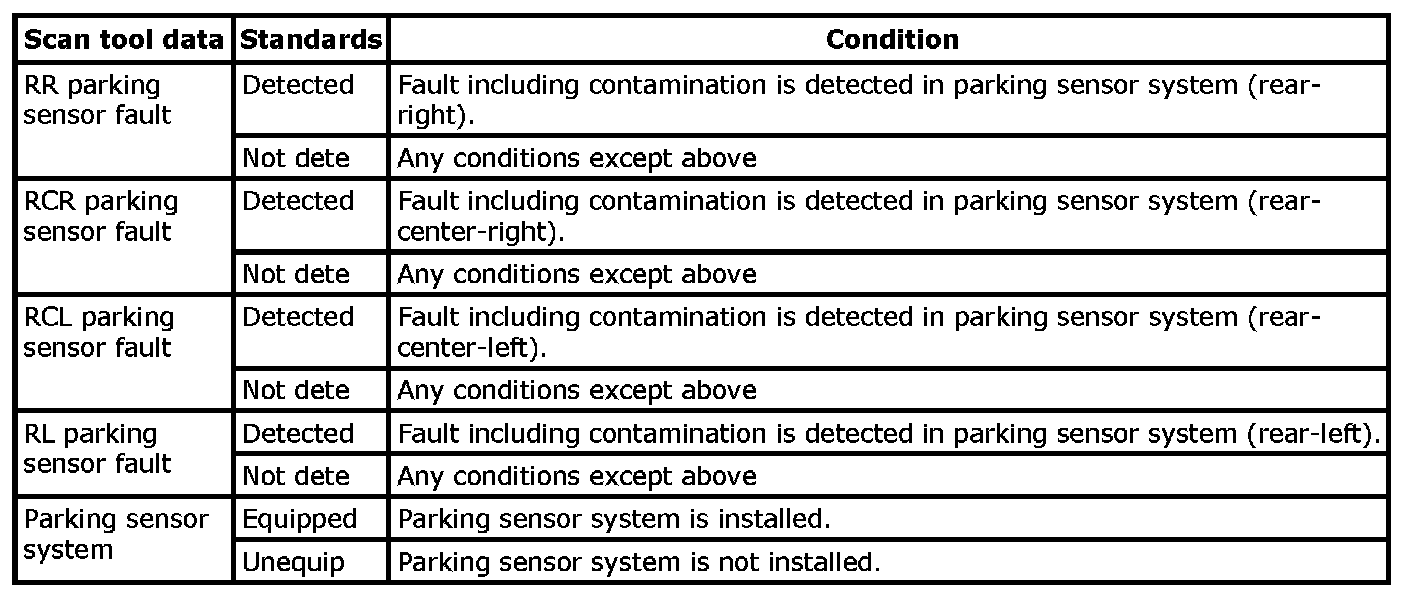

The following table shows SUZUKI scan tool data items concerning parking sensor system and their standard parameters for reference purposes.
