Antenna: Service and Repair

XM Antenna Removal And Installation (If Equipped)

Removal

1. Disconnect negative (-) cable at battery.
2. Remove roof lining.

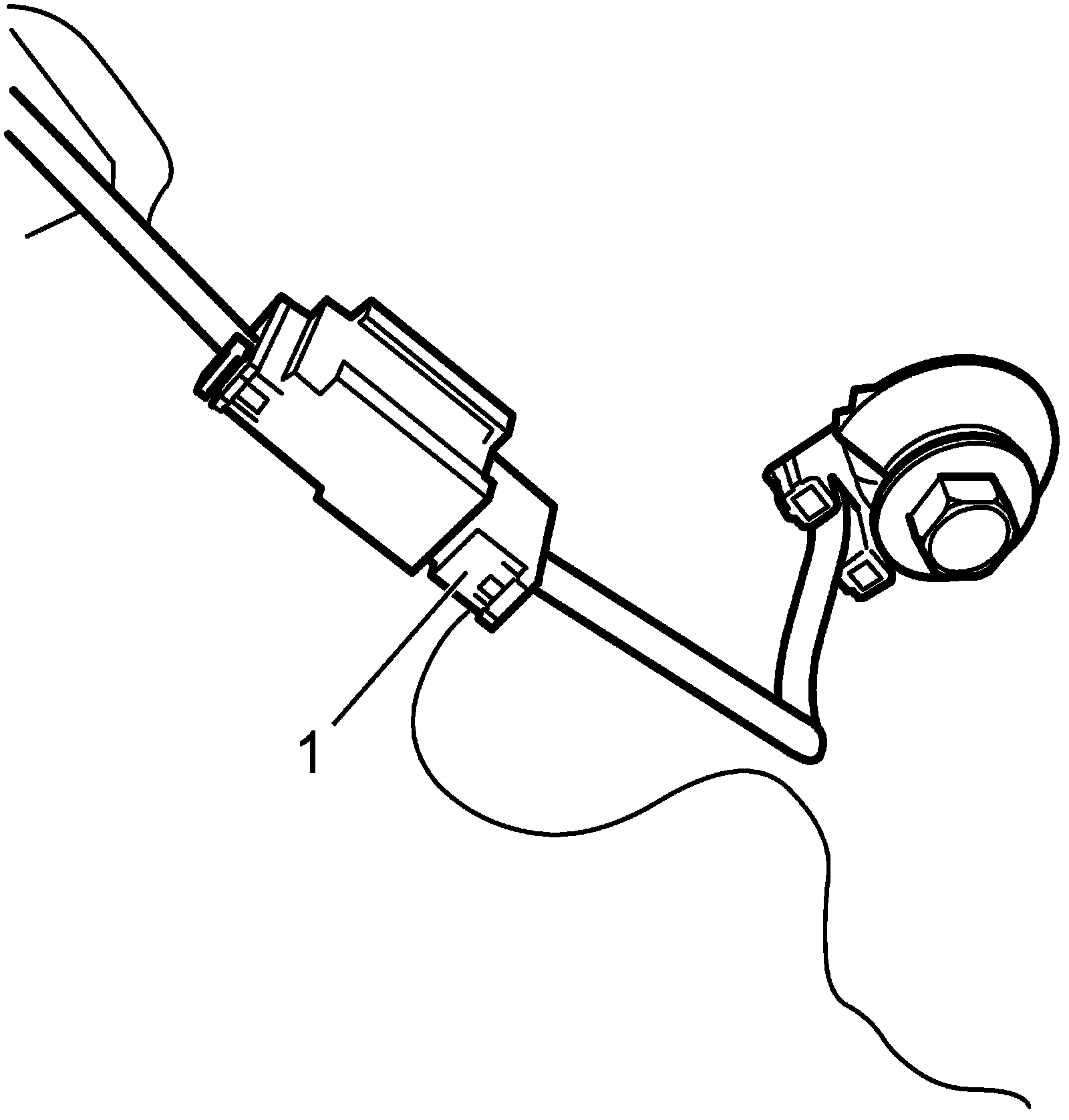

3. Disconnect XM antenna connector (1).

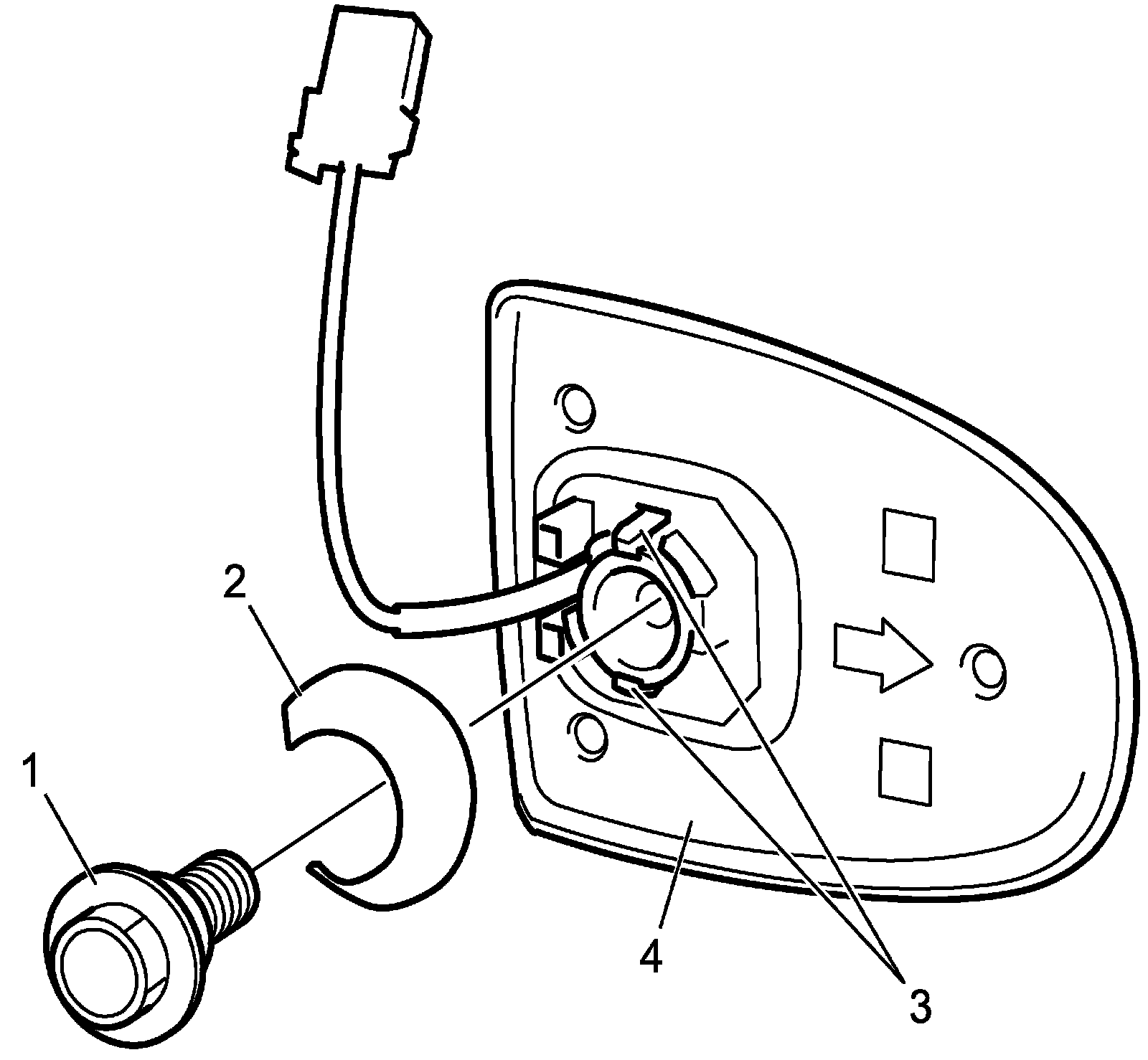

4. Remove antenna bolt (1) and washer (2).
5. Disengage claws (3) and remove XM antenna (4).







Installation

Reverse removal procedure noting the following point.
- Tighten antenna bolt to specified torque.

Tightening torque
Antenna bolt: 9.0 N.m (0.92 kg-m, 7.0 lbf-ft)
