P2763

DTC P2763

DTC Detecting Condition and Trouble Area





Circuit Diagram








DTC Confirmation Procedure

WARNING:
^ Perform road test in a place where there is no traffic to prevent an accident.
^ Road test should be performed by two persons, a driver and a tester, on a level road.

NOTE:
^ Be sure to troubleshoot first unexpected DTCs previously detected in "DTC Confirmation Procedure".
^ Confirm that the following conditions are met in this procedure.
- Battery voltage > 10.5 V

1) Drive vehicle at more than 40 km/h (25 mile/h) for 10 sec.

DTC Troubleshooting

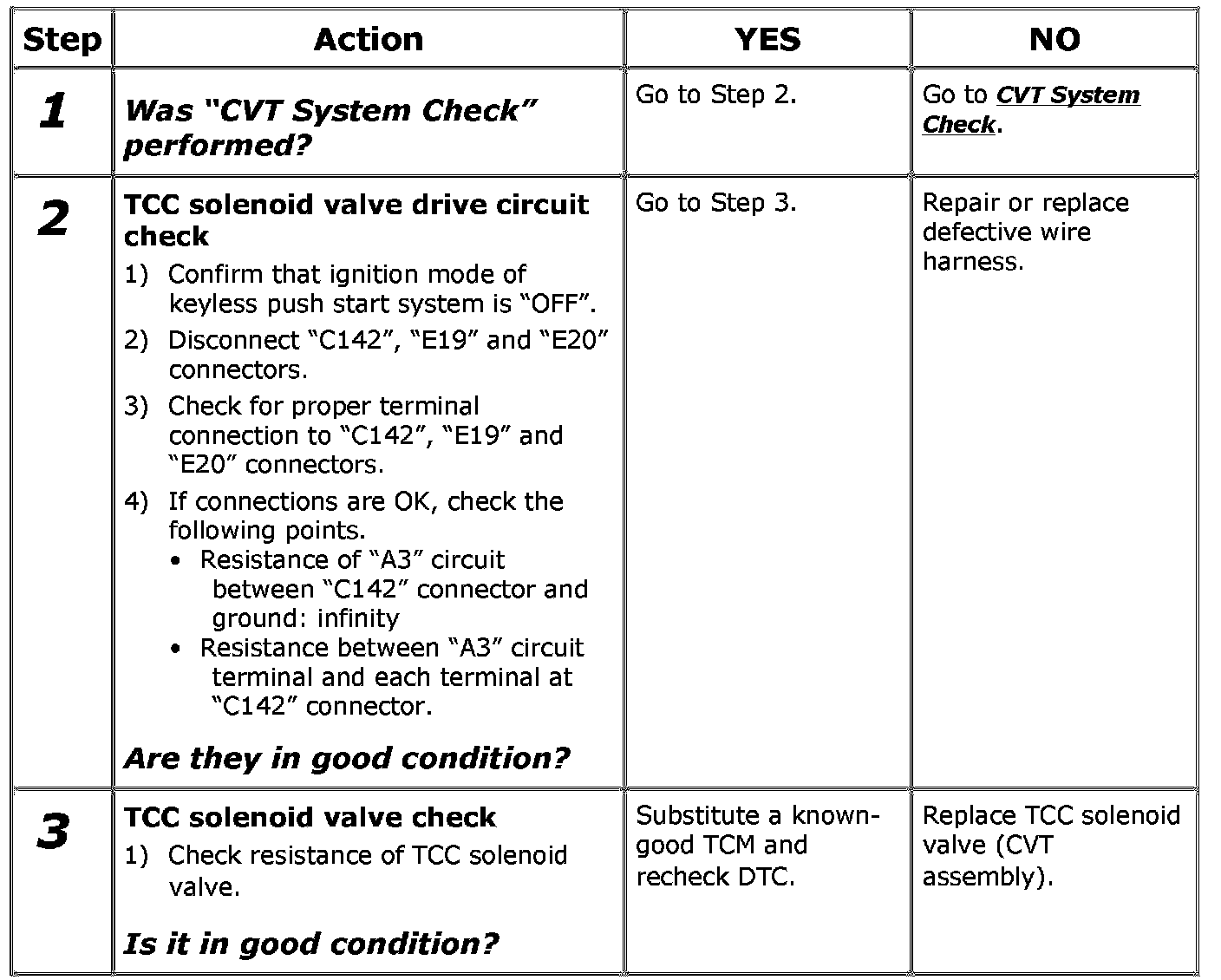

Step 1-3:
