P2135

DTC P2135

DTC Detecting Condition and Trouble Area

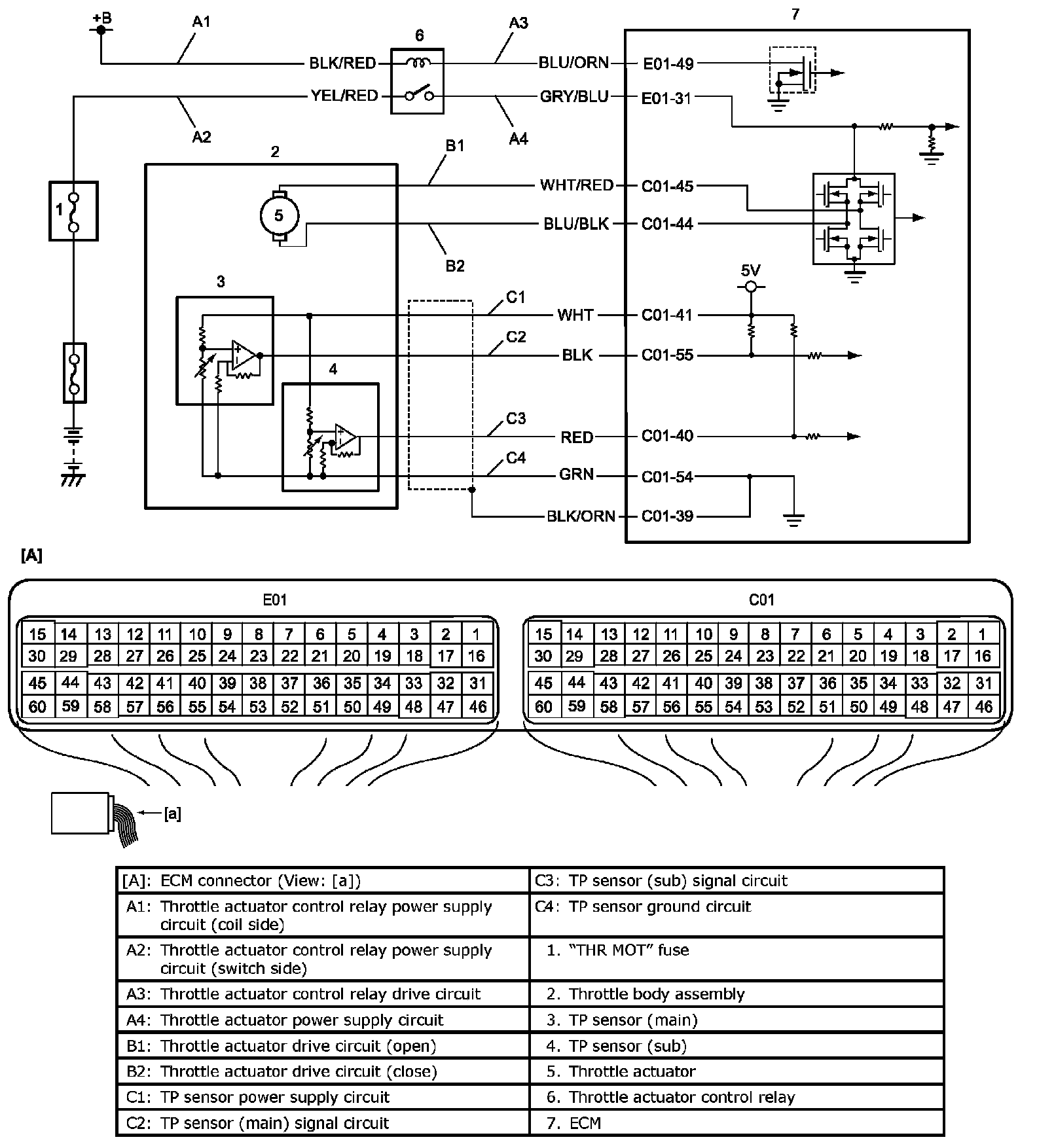

Circuit Diagram

Circuit Diagram:

DTC Confirmation Procedure

NOTE:
Confirm that the following conditions are met in this "DTC Confirmation Procedure".
- Battery voltage >= 11 V

1. Push engine switch to change ignition mode to "ON".
2. Run engine at idle speed for 2 sec.

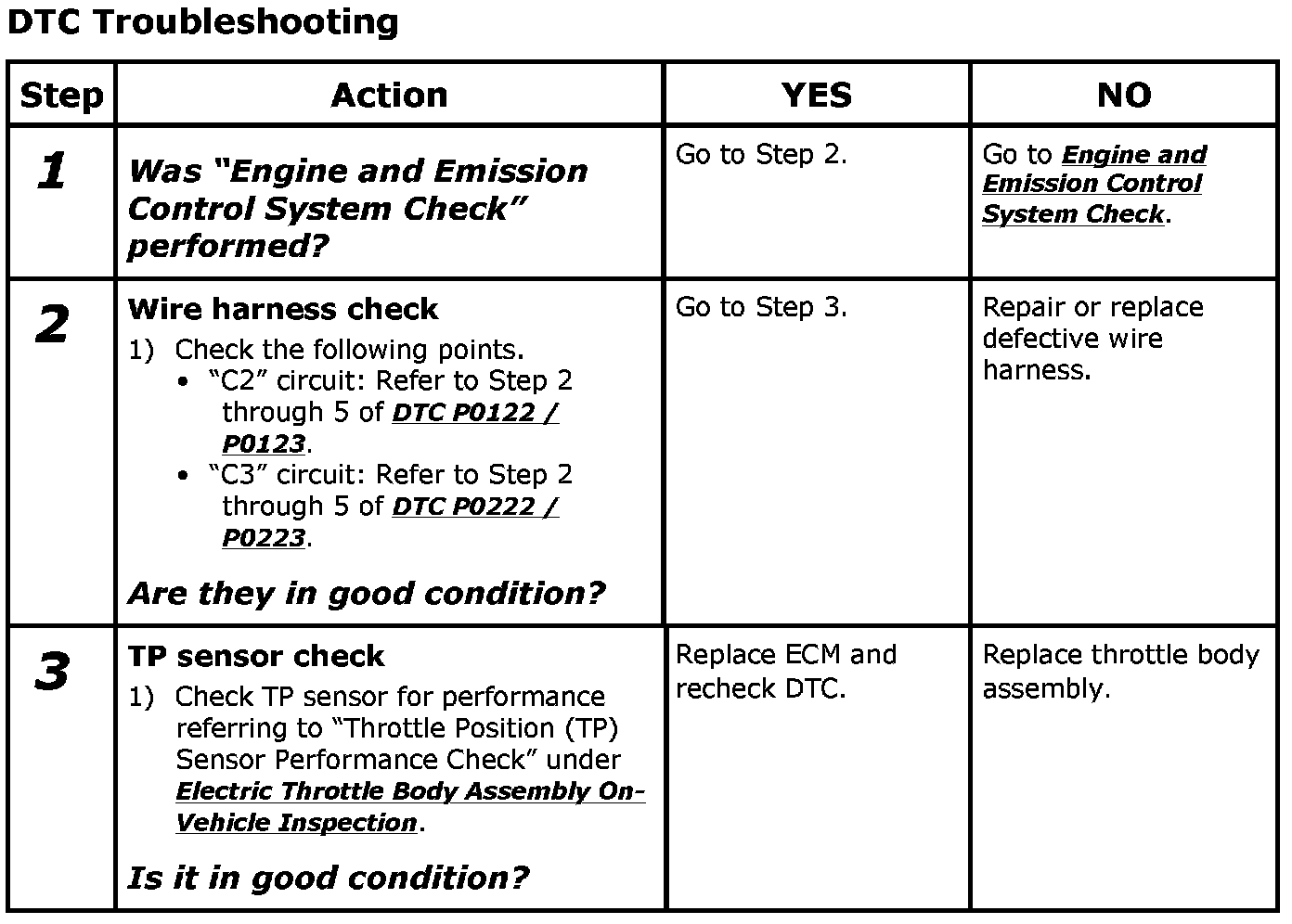

DTC Troubleshooting

Step 1-3:
