P1810

DTC P1810

DTC Detecting Condition and Trouble Area





Circuit Diagram








DTC Confirmation Procedure

NOTE:
^ Check that the following condition is satisfied when using this procedure.
- Battery voltage > 10.5 V

1) Push engine switch to change ignition mode "ON".

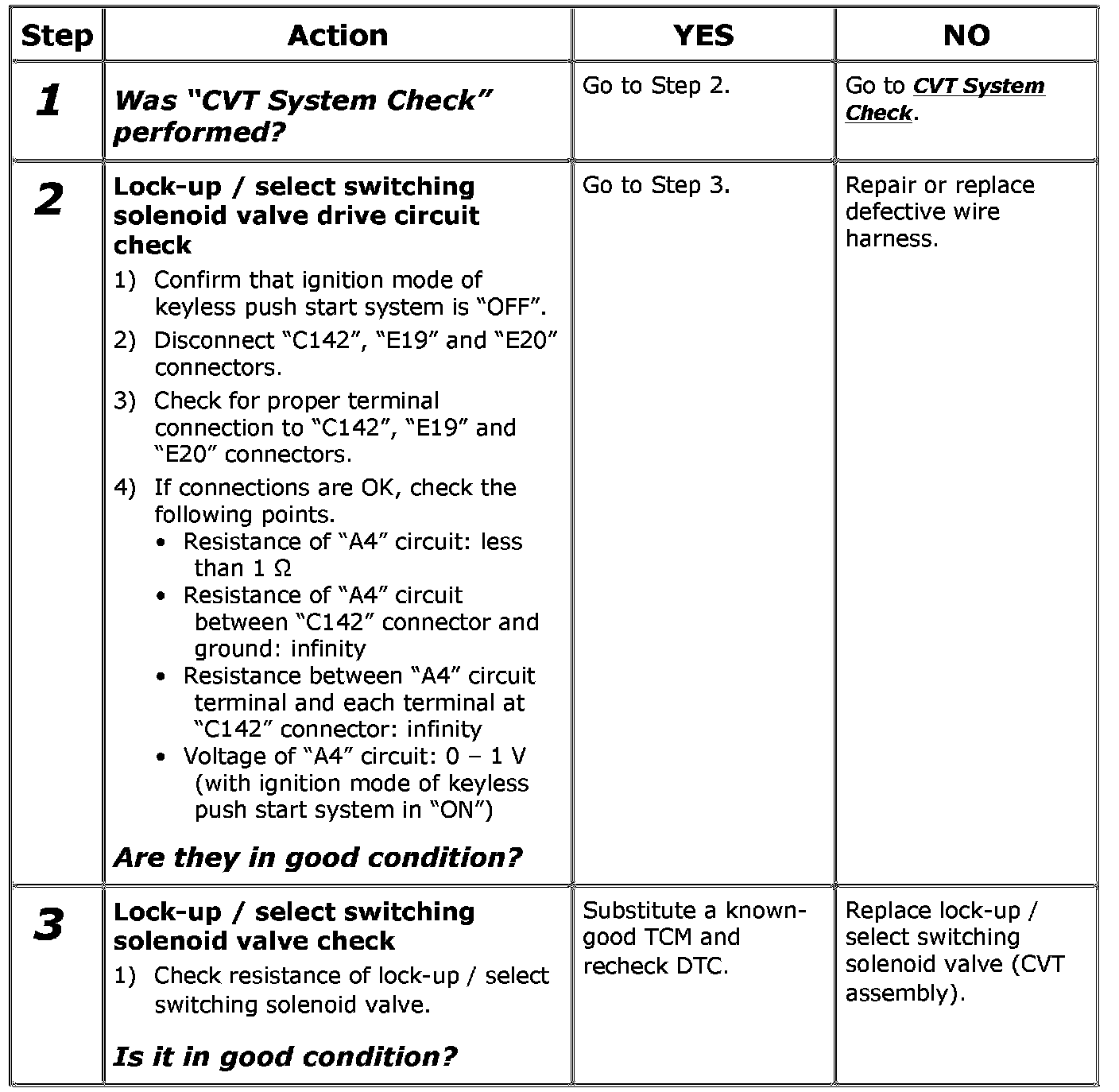

DTC Troubleshooting

Step 1-3:
