P0843

DTC P0842 / P0843

DTC Detecting Condition and Trouble Area





Circuit Diagram








DTC Confirmation Procedure

P0842 / P0843

NOTE:
^ Be sure to troubleshoot first unexpected DTCs previously detected in "DTC Confirmation Procedure".
^ Confirm that the following conditions are met in this procedure.
- Battery voltage > 10.5 V
- CVT fluid temperature at engine start >/= -20°C (-4°F)

1) Push engine switch to change ignition mode to "ON", and leave ignition mode in "ON" for 10 sec.

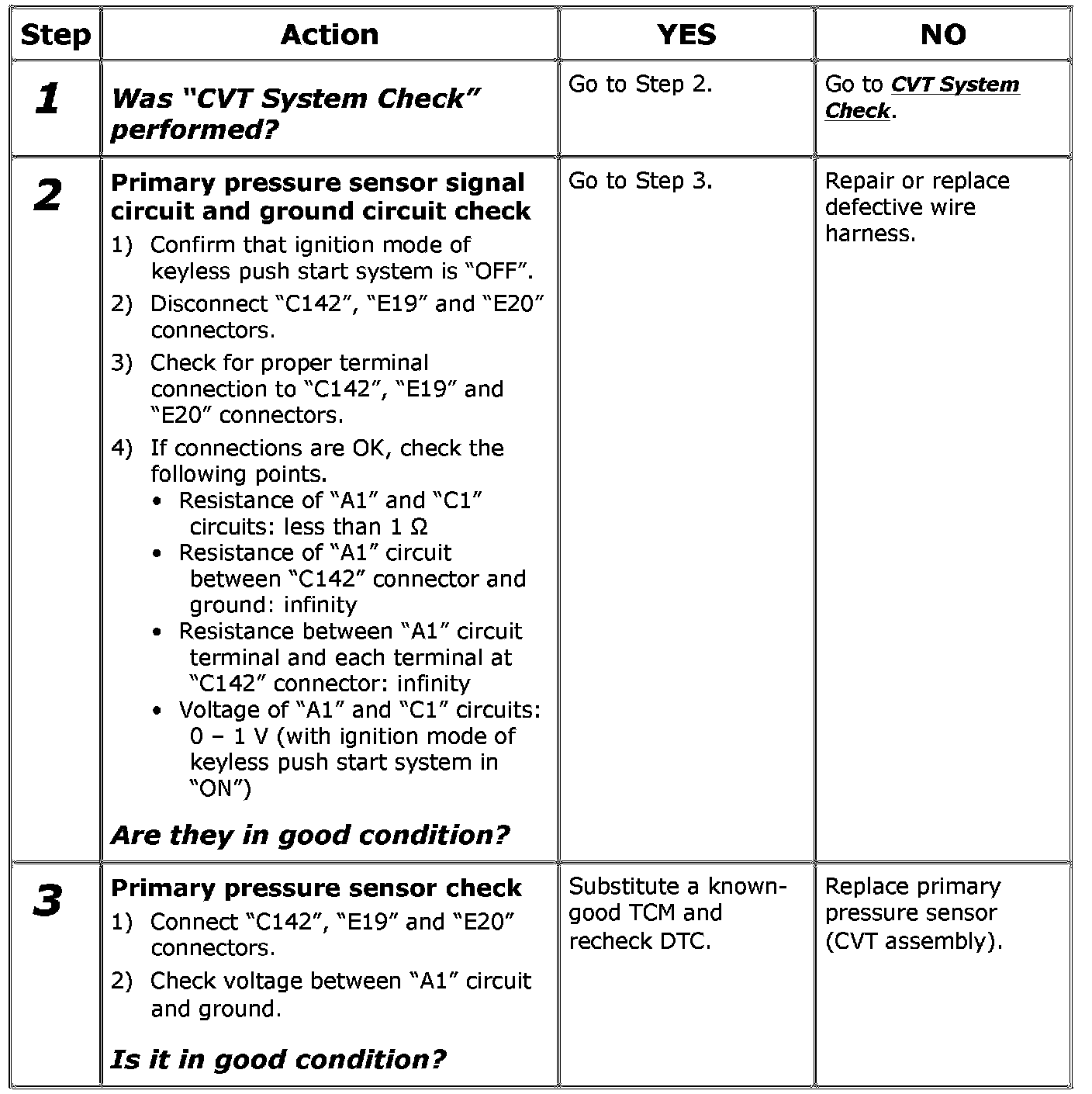

DTC Troubleshooting

Step 1-3:
