P0705

DTC P0705

DTC Detecting Condition and Trouble Area





Circuit Diagram








DTC Confirmation Procedure

NOTE:
Check that the following condition is satisfied when using this procedure.
^ Battery voltage > 10.5 V

1) Push engine switch to change ignition mode to "ON", and leave ignition mode in "ON" for 10 sec.

DTC Troubleshooting

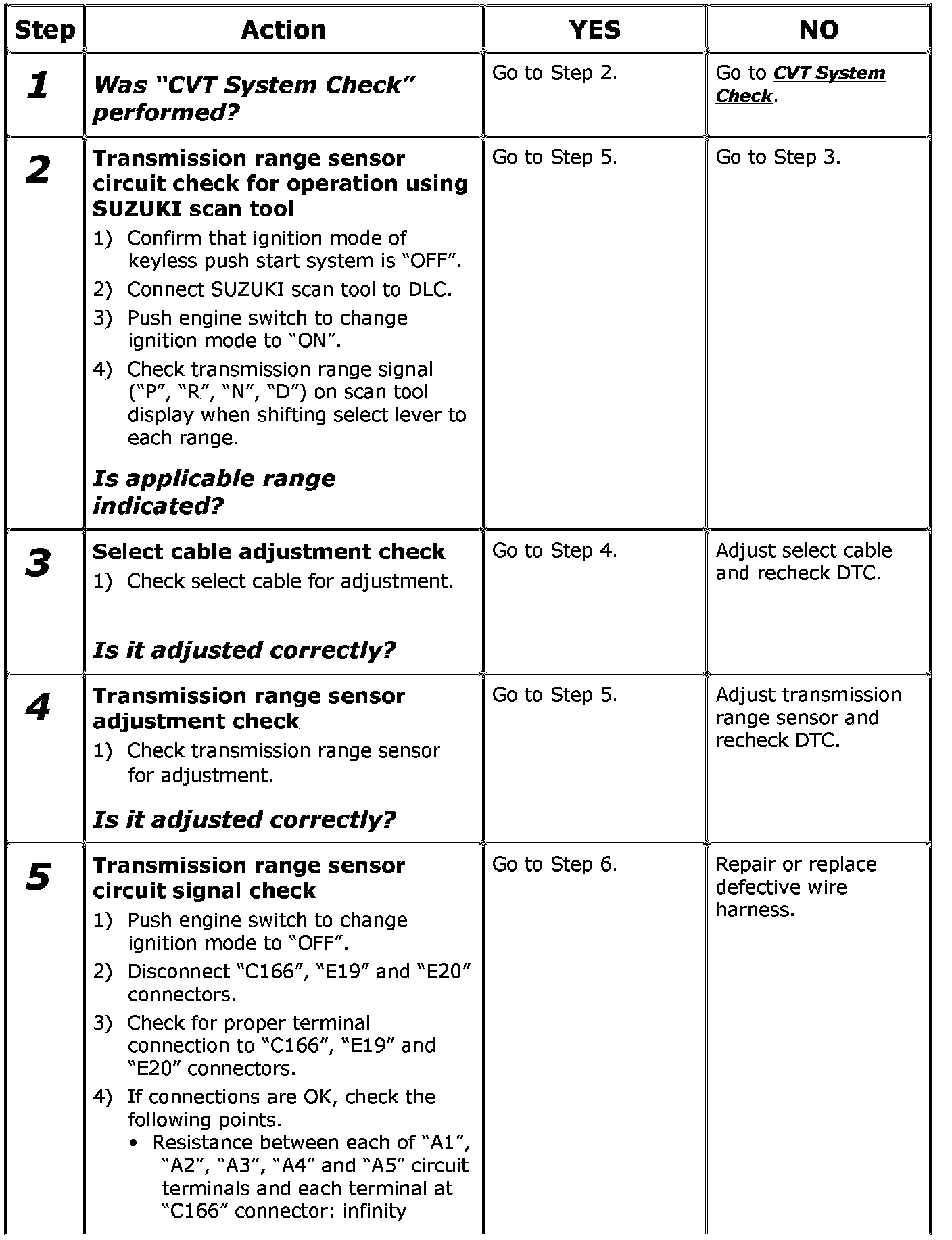

Step 1-5:

Step 5-6:
