P0616

DTC P0616/P0617

DTC Detecting Condition and Trouble Area

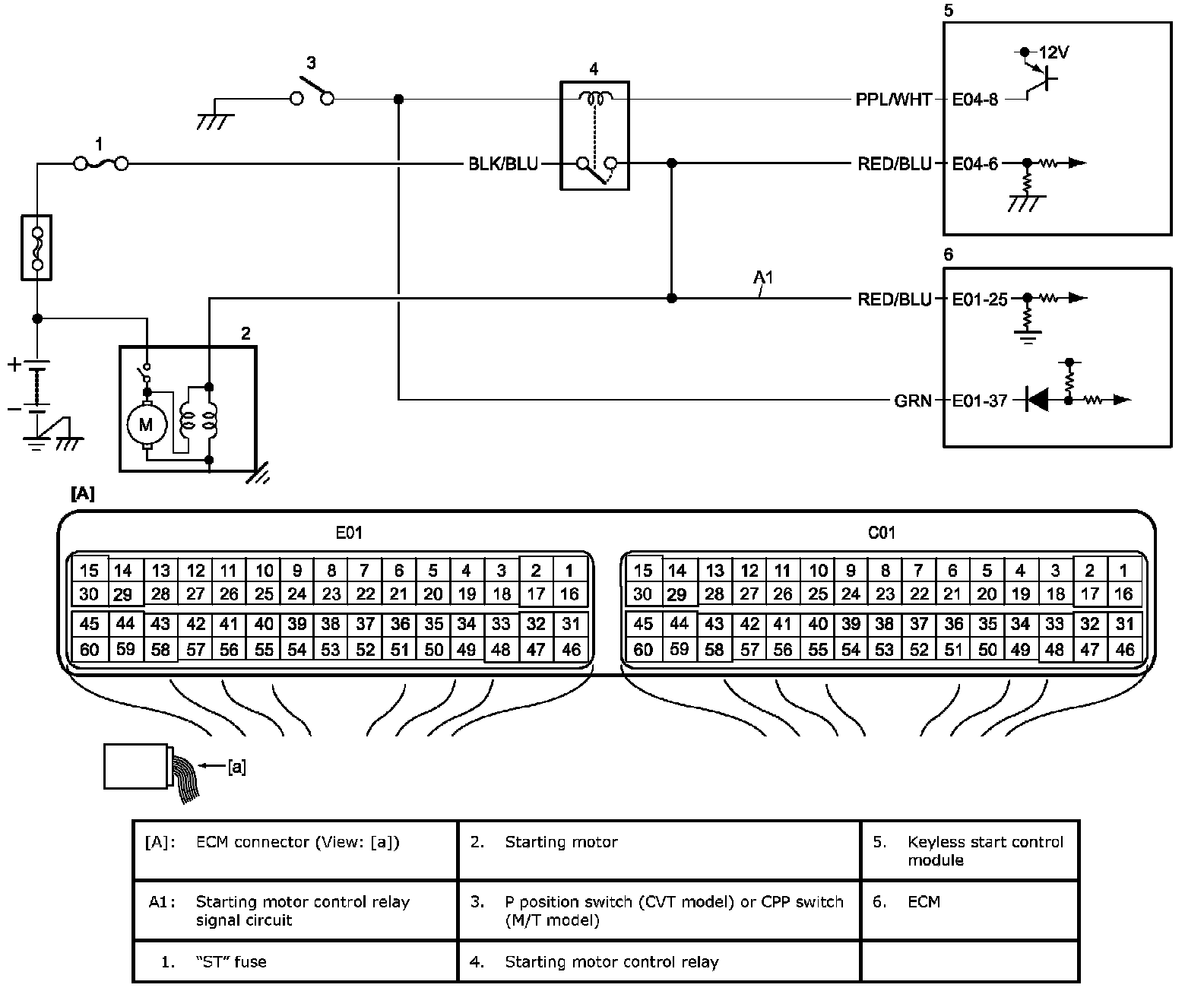

Circuit Diagram

Circuit Diagram:






Circuit Description
Engine start signal is sent from "A1" circuit while engine cranking.

DTC Confirmation Procedure
1. Run engine at idle speed for 5 min.

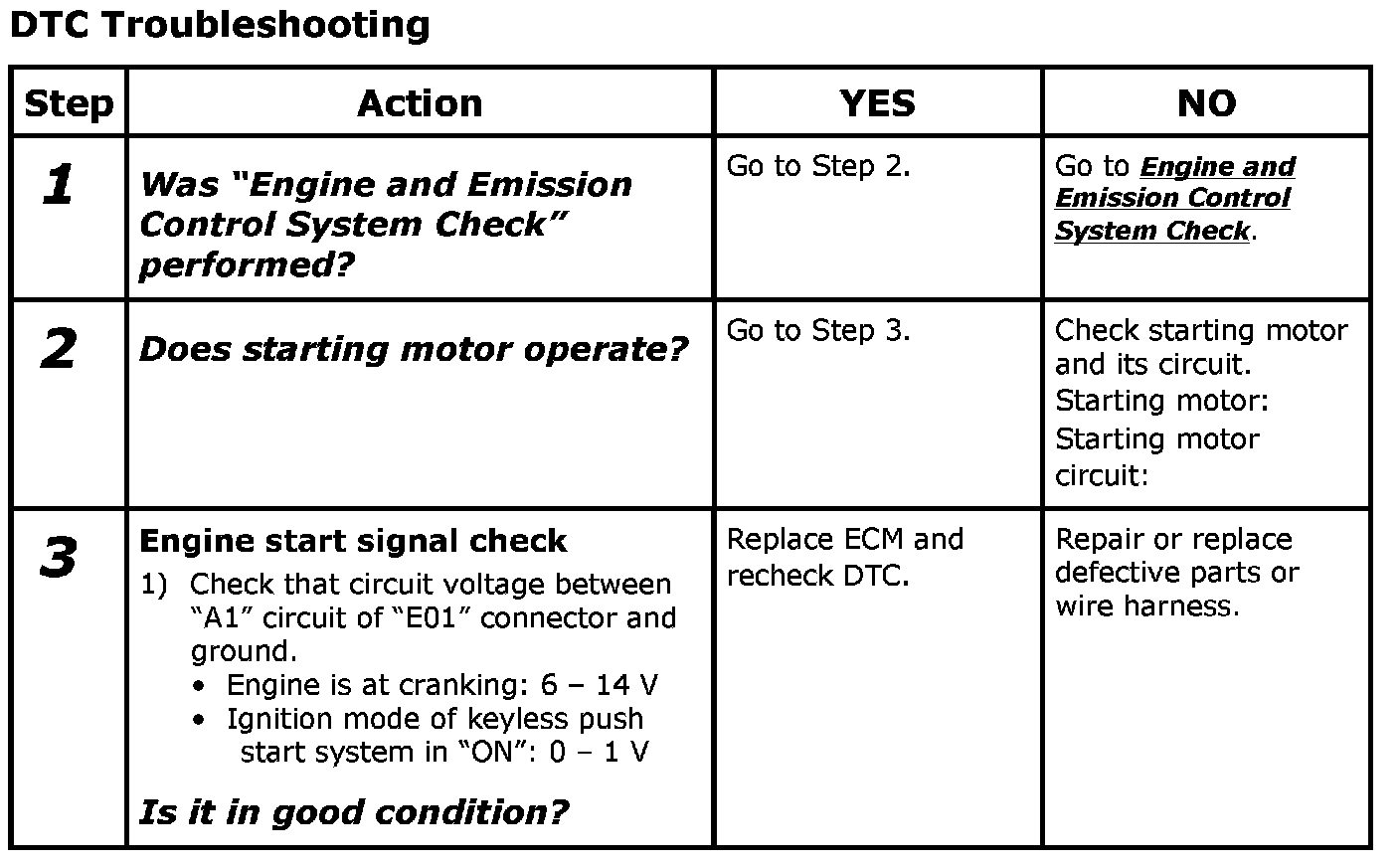

DTC Troubleshooting

Step 1-3:
