P050A

DTC P050A/P050B

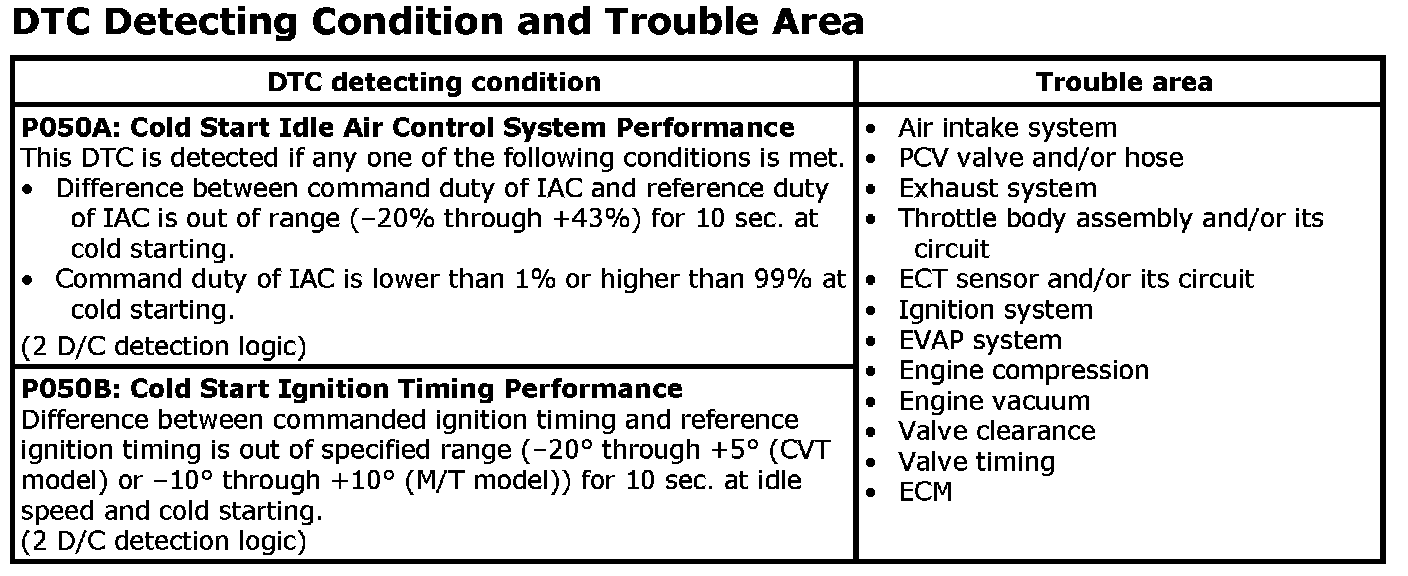

DTC Detecting Condition and Trouble Area






DTC Confirmation Procedure

NOTE:
- Be sure to troubleshoot first unexpected DTCs previously detected in "DTC Confirmation Procedure".
- Confirm that the following conditions are met in this "DTC Confirmation Procedure".
- -10 °C (14 °F) <= ECT at engine started < 40 °C (104 °F)
- -10 °C (14 °F) < =ECT < 40 °C (104 °F)
- -10 °C (14 °F) <= IAT < 40 °C (104 °F)
- BARO > 75 kPa (0.8 kgf/cm2, 10.8 psi, 0.75 bar)
- DTC P0506 or P0507 is not detected (P050A).

1. Run engine at idle speed for 1 min.

DTC Troubleshooting

Step 1-3:

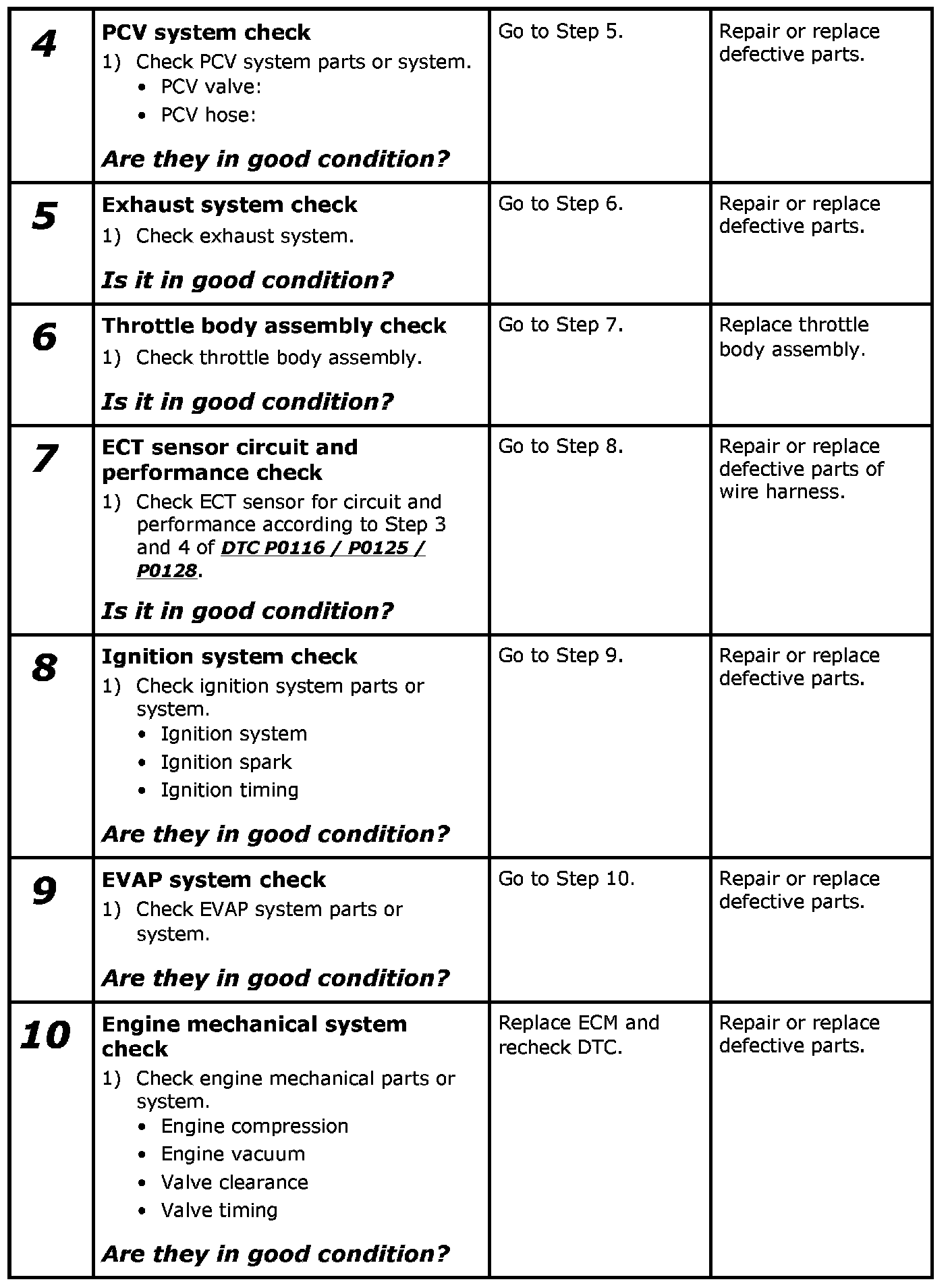

Step 4-10:
