P0449

DTC P0449

DTC Detecting Condition and Trouble Area

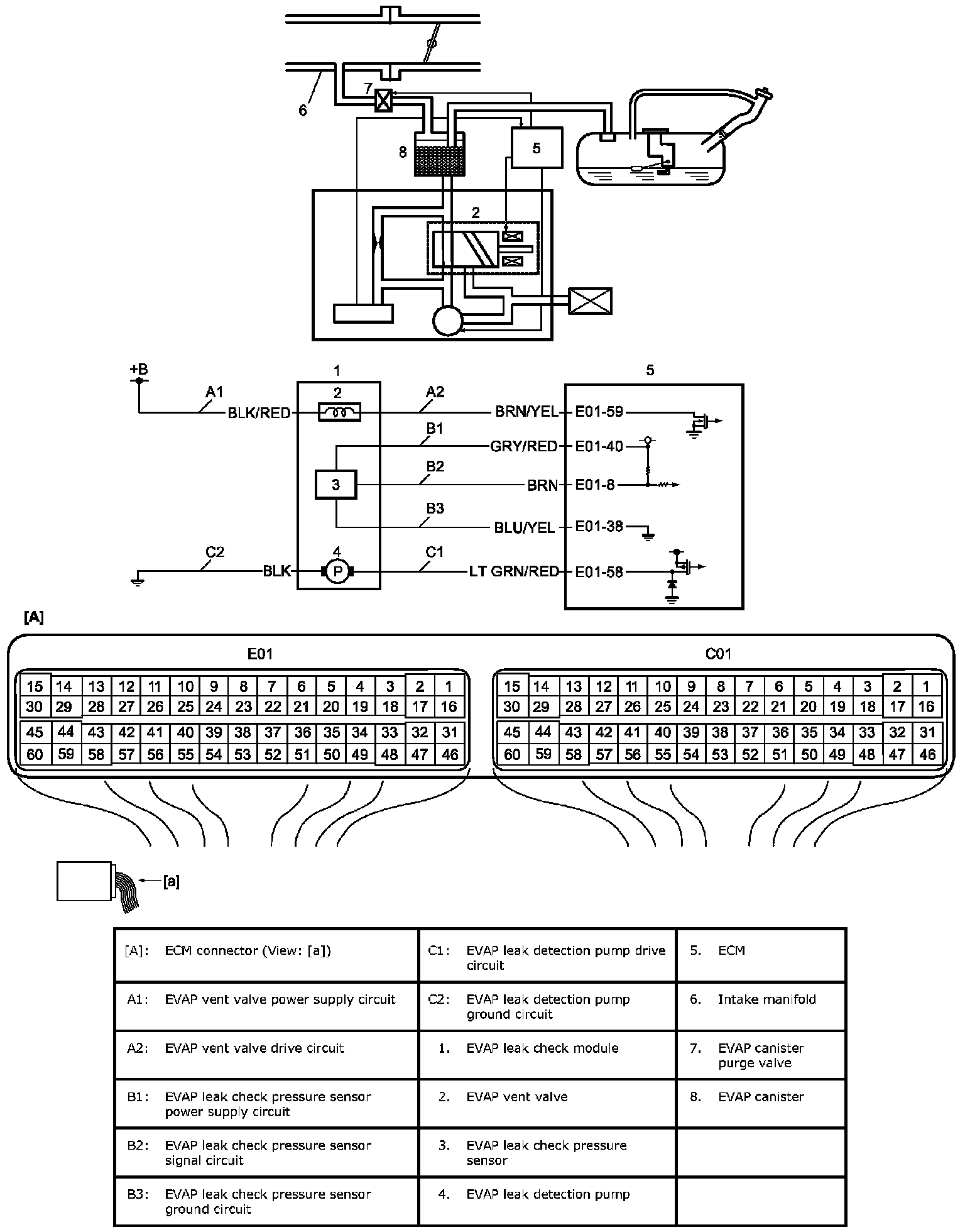

Circuit Diagram

Circuit Diagram:

DTC Confirmation Procedure

WARNING:
- Perform road test in a place where there is no traffic to prevent an accident.
- Road test should be performed by two persons, a driver and a tester, on a level road.

1. Warm up engine to normal operating temperature.
2. Drive vehicle at 40 km/h (25 mile/h) for 15 min.
3. Push engine switch to change ignition mode to "OFF" and leave ignition mode in "OFF" for 5 hours.

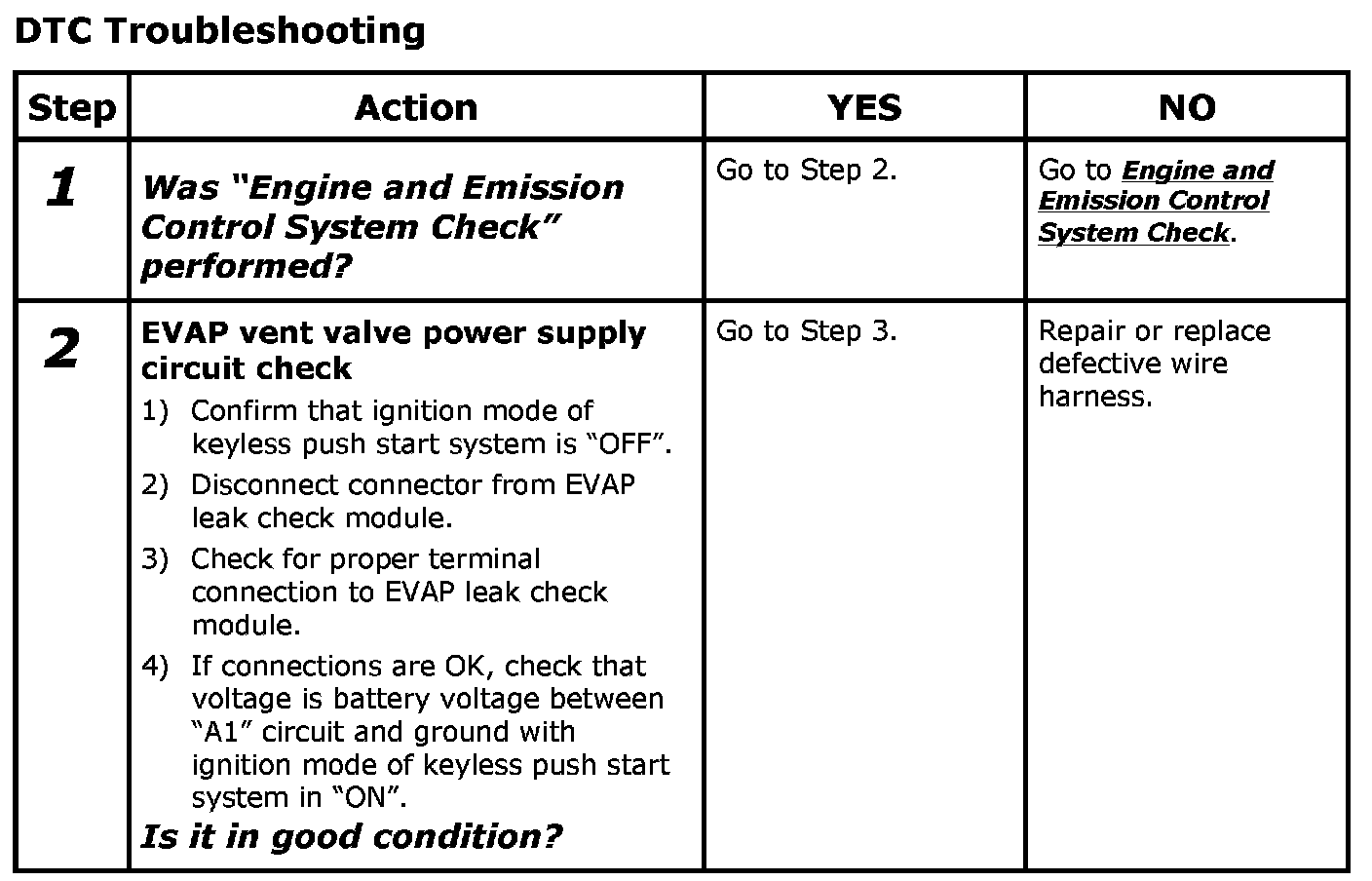

DTC Troubleshooting

Step 1-2:

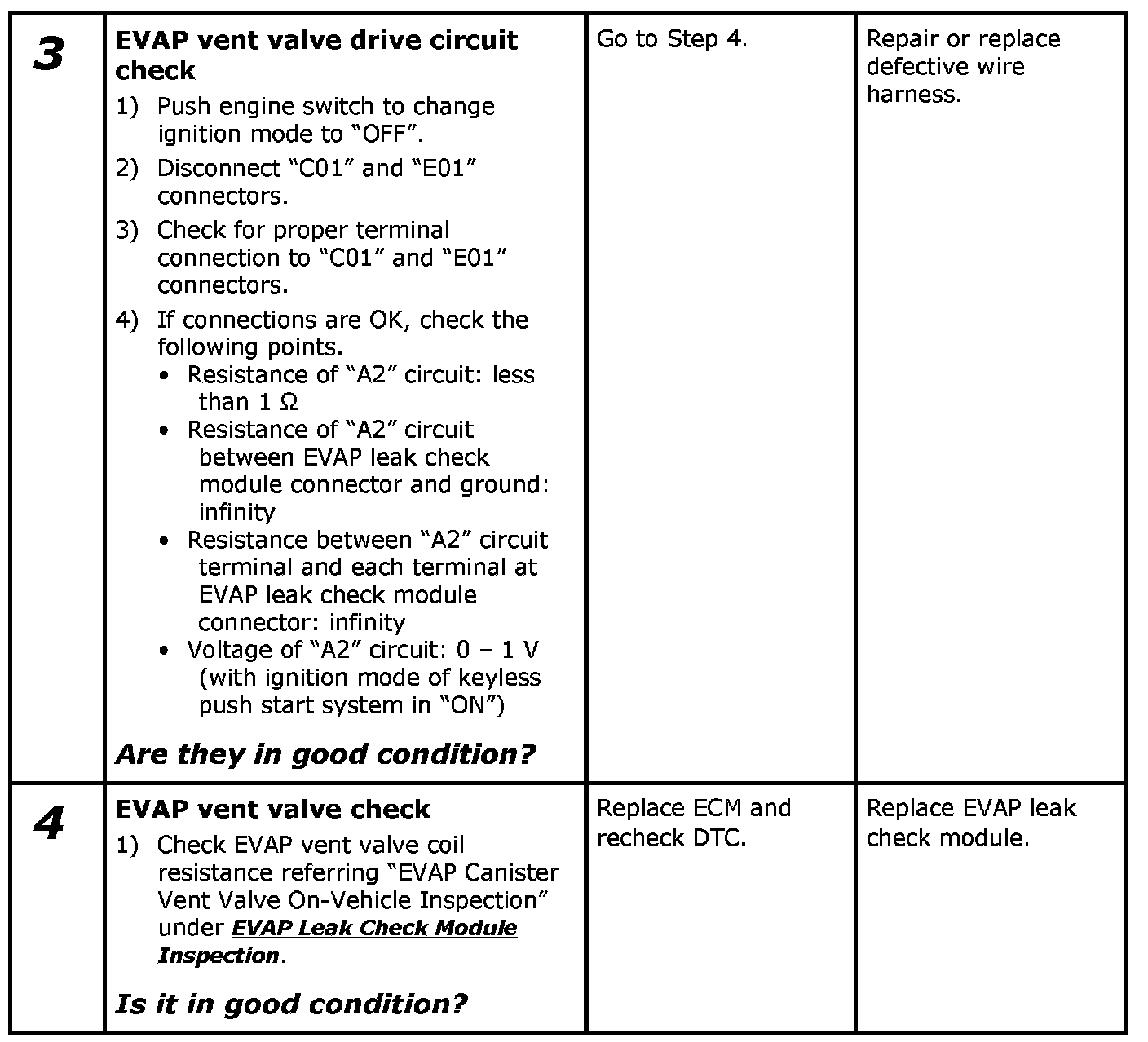

Step 3-4:
