P0032

DTC P0031/P0032

DTC Detecting Condition and Trouble Area

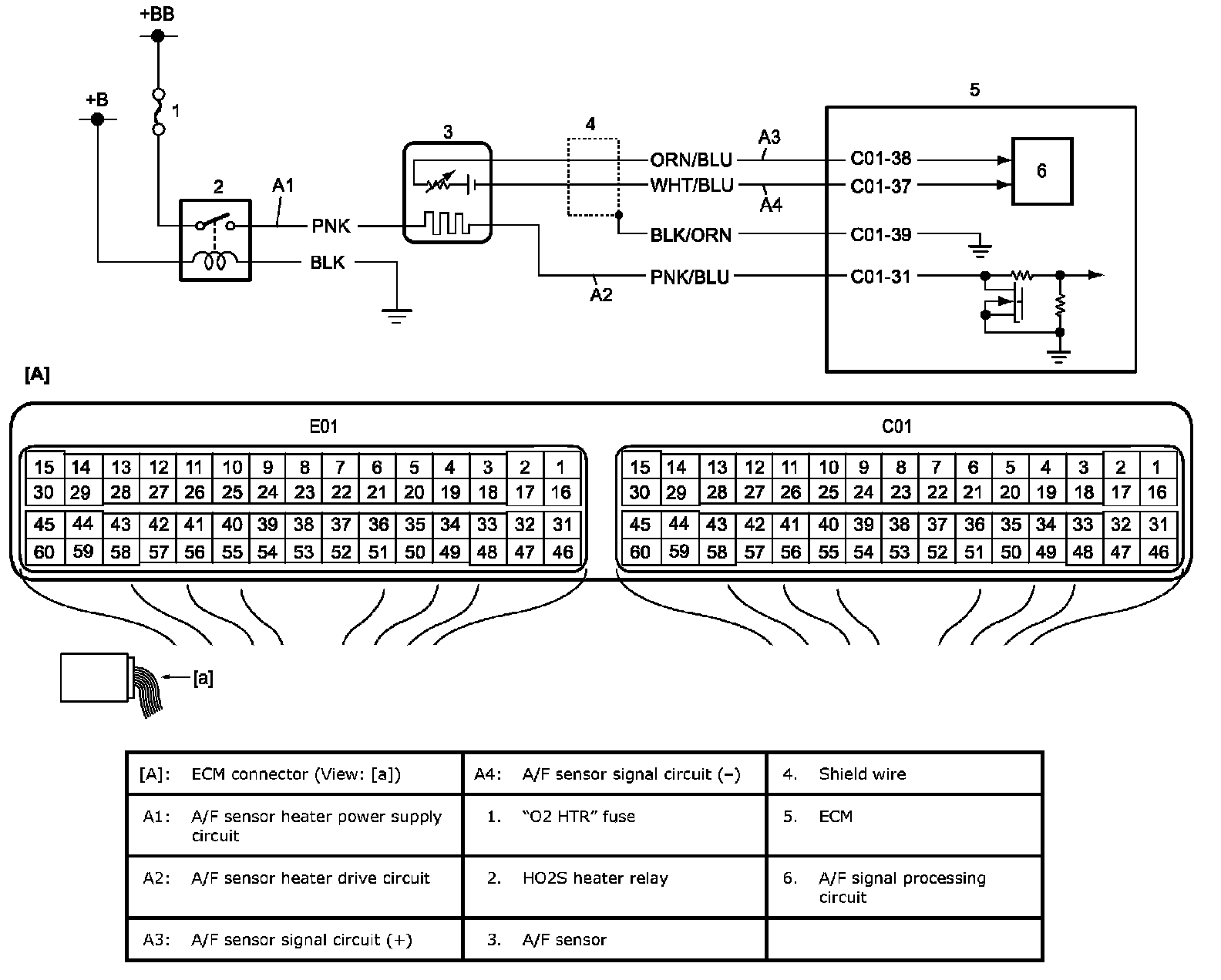

Circuit Diagram

Circuit Diagram:

DTC Confirmation Procedure

P0031
1. Push engine switch to change ignition mode to "ON" and leave ignition mode in "ON" for 10 sec.

P0032
1. Run engine at idle speed for 1 min.

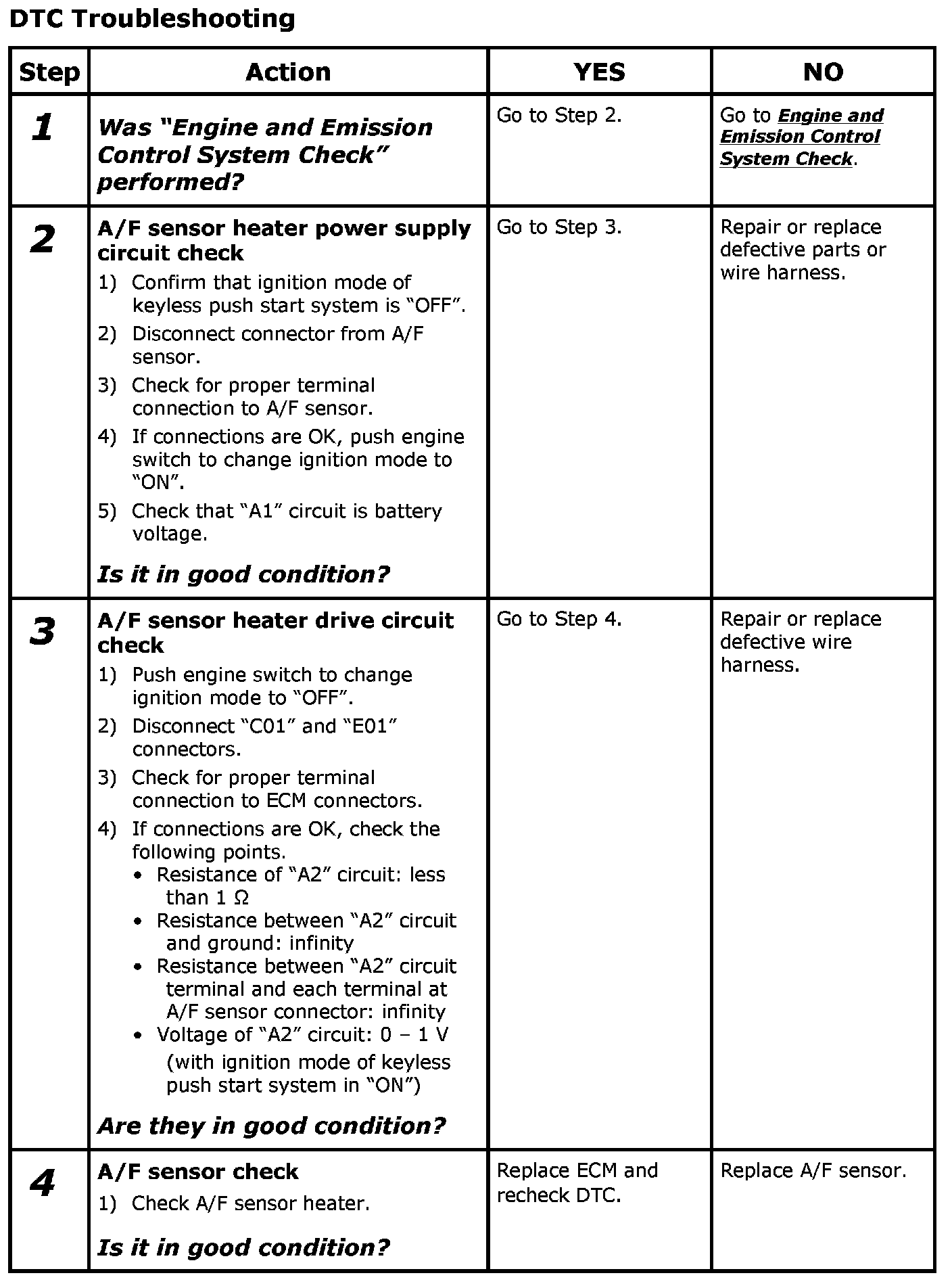

DTC Troubleshooting

Step 1-4:
